VAMPIRE	eBACS: ECRYPT Benchmarking of Cryptographic Systems	ECRYPT II

Measurements of stream ciphers on one machine: amd64; Ivy Bridge+AES (306a9); 2012 Intel Core i5-3210M; 2 x 2500MHz; h9ivy, supercop-20260330

[Page version: 20260503 04:13:06]

eBASC (ECRYPT Benchmarking of Stream Ciphers) is a project to measure the performance of stream ciphers. This page presents benchmark results collected in eBASC:

• Speed (cycles/byte) of encrypting an 8-byte message.
• Speed of encrypting a 64-byte message.
• Speed of encrypting a 576-byte message.
• Speed of encrypting a 1536-byte message.
• Speed of encrypting a 4096-byte message.
• Speed of encrypting a long message. This is computed as 1/3072 of the difference in cycle counts between encrypting 4096-byte messages and encrypting 1024-byte messages.

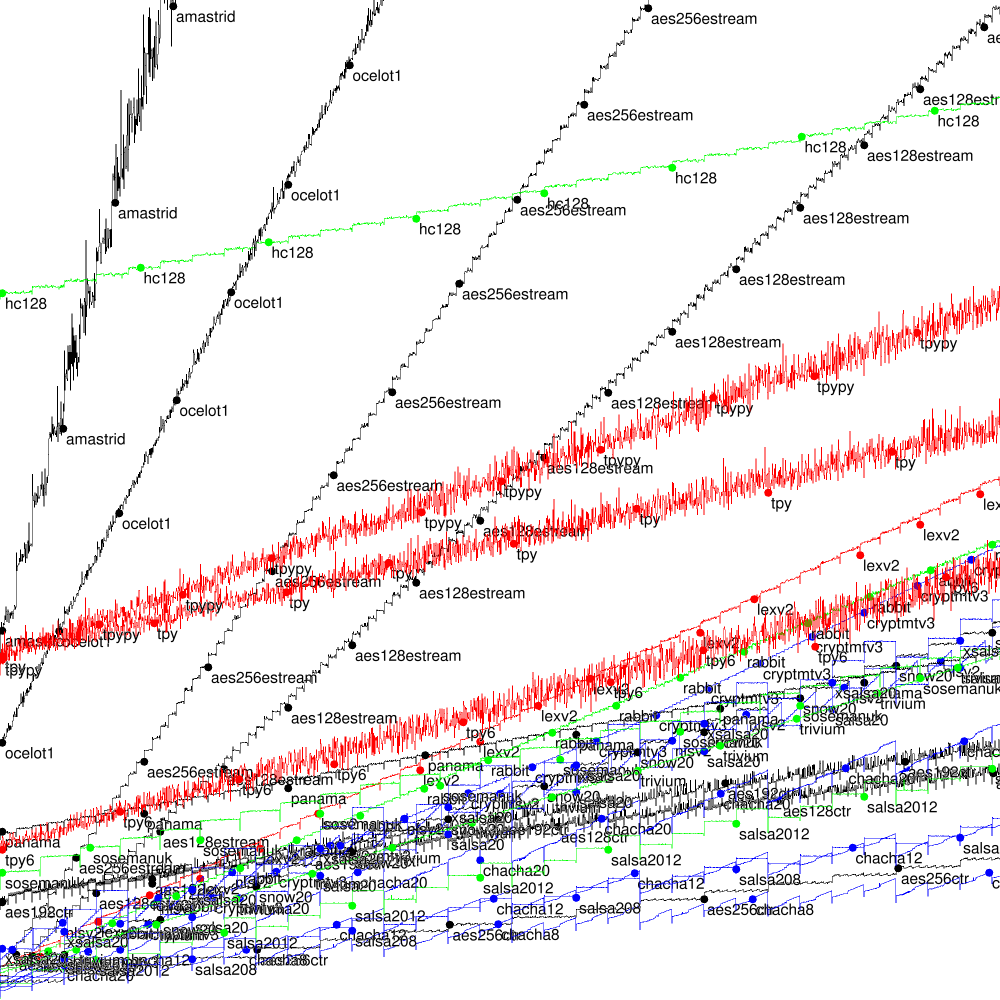

Graphs show timings for all message lengths between 0 and 4096 bytes. The stair-step shape of a typical curve on the graphs reflects the fact that these stream ciphers handle messages in blocks, such as 64-byte blocks.

Each table row lists the first quartile of many speed measurements (or StQ1 starting with supercop-20260214), the median of many speed measurements (or StQ2 starting with supercop-20260214), the third quartile of many speed measurements (or StQ3 starting with supercop-20260214), and the name of the primitive. Measurements with large interquartile range (or stabilized interquartile range) are indicated in red with question marks. The symbol T: (starting with supercop-20200816) means that the SUPERCOP database at the time of benchmarking did not list constant time as a goal for this implementation. The symbol T!!! means that constant time was listed as a goal for this implementation, but that the implementation failed TIMECOP. (TIMECOP failures are not necessarily security issues; they can sometimes be resolved by, e.g., declaring that a rejection-sampling condition is safe to declassify.)

There is a separate page with more information about each stream cipher and each implementation. Designers and implementors interested in submitting new stream ciphers and new implementations should read the call for submissions.

Test results

Graphs: old (bytes,cycles)

Cycles/byte for long messages 25% 50% 75% stream 0.87 0.88 0.88 tango642 0.89 0.91 0.92 T:aes128ctr 1.04 1.05 1.06 chacha8 1.17 1.18 1.19 aes256ctr 1.24 1.25 1.26 salsa208 1.40? 1.47? 1.61? T:aes192ctr 1.46 1.47 1.49 chacha12 1.63 1.64 1.64 T:trivium 1.75 1.76 1.78 salsa2012 1.82 1.93 2.02 T:tpy 2.08 2.09 2.10 T:speck6496ctr 2.07 2.10 2.13 T:hc128 2.16 2.17 2.18 T:speck64128ctr 2.27 2.29 2.31 T:sosemanuk 2.28 2.31 2.33 chacha20 2.29 2.31 2.34 T:nlsv2 2.48 2.54 2.63 T:tpy6 2.64 2.65 2.66 T:speck128128ctr 2.66 2.67 2.68 T:cryptmtv3 2.71 2.72 2.73 T:speck128192ctr 2.79 2.80 2.81 T:speck128256ctr 2.84 2.85 2.87 salsa20 2.85 2.86 2.87 xsalsa20 2.98 2.99 3.00 T:simon6496ctr 2.94 3.00 3.12 T:tpypy 2.99 3.03 3.05 T:hc256 3.10 3.11 3.11 T:simon64128ctr 3.46 3.50 3.54 T:panama 3.51 3.52 3.54 T:snow20 3.61 3.62 3.63 T:rabbit 4.50 4.52 4.54 T:simon128128ctr 4.89 4.90 4.91 T:lexv2 5.12 5.24 5.28 T:simon128256ctr 9.72 9.75 9.76 T:aes128estream 15.74 15.77 15.80 T:aes256estream 20.47 20.59 20.72 T:ocelot1 21.52 21.65 21.81 T:ocelot2 34.62 35.02 36.03 T:amastrid

Cycles/byte for 4096 bytes 25% 50% 75% stream 0.95 0.95 0.95 T:aes128ctr 1.06 1.06 1.06 tango642 1.07 1.07 1.08 chacha8 1.23 1.24 1.24 aes256ctr 1.28 1.29 1.29 salsa208 1.50 1.51 1.52 chacha12 1.72 1.72 1.72 T:trivium 1.79 1.79 1.80 salsa2012 1.90 1.91 2.00 T:aes192ctr 2.13 2.13 2.14 T:speck6496ctr 2.21 2.21 2.22 T:speck64128ctr 2.32 2.33 2.34 chacha20 2.46 2.46 2.48 T:nlsv2 2.69 2.69 2.69 T:speck128128ctr 2.76 2.76 2.77 T:speck128192ctr 2.84 2.84 2.85 T:speck128256ctr 2.84 2.86 2.86 T:sosemanuk 2.87 2.88 2.89 salsa20 2.99 3.00 3.00 xsalsa20 3.15 3.16 3.17 T:cryptmtv3 3.20 3.21 3.21 T:simon6496ctr 3.22 3.23 3.27 T:tpy6 3.45 3.46 3.46 T:simon64128ctr 3.57 3.61 3.64 T:tpy 3.62 3.63 3.63 T:snow20 3.71 3.72 3.72 T:rabbit 4.56 4.58 4.60 T:panama 4.57 4.61 4.64 T:tpypy 4.83 4.84 4.85 T:simon128128ctr 5.06 5.07 5.07 T:lexv2 5.45 5.46 5.47 T:hc128 5.65 5.67 5.70 T:simon128256ctr 9.80 9.82 9.82 T:aes128estream 12.17 12.18 12.19 T:hc256 15.87 15.89 15.90 T:aes256estream 21.72 21.78 21.84 T:ocelot1 22.83 22.90 22.98 T:ocelot2 36.59 36.84 37.53 T:amastrid

Cycles/byte for 1536 bytes 25% 50% 75% stream 1.01 1.01 1.02 T:aes128ctr 1.11 1.12 1.12 chacha8 1.31 1.32 1.33 aes256ctr 1.33 1.34 1.34 salsa208 1.36 1.37 1.38 tango642 1.55 1.55 1.56 chacha12 1.83 1.84 1.85 salsa2012 1.87 1.87 1.87 T:trivium 2.19 2.19 2.21 T:speck6496ctr 2.28 2.28 2.30 T:speck64128ctr 2.36 2.37 2.38 chacha20 2.57? 2.61? 2.88? T:aes192ctr 2.75 2.76 2.77 T:speck128128ctr 2.80 2.81 2.85 T:nlsv2 2.84 2.84 2.85 T:speck128192ctr 2.90 2.91 2.93 T:speck128256ctr 2.91 2.93 2.94 salsa20 3.22 3.22 3.23 xsalsa20 3.57 3.57 3.58 T:simon6496ctr 3.80 3.81 3.81 T:snow20 3.81 3.86 3.88 T:sosemanuk 3.87 3.89 3.90 T:rabbit 4.04 4.05 4.06 T:simon64128ctr 4.43 4.45 4.48 T:tpy6 4.63 4.63 4.64 T:cryptmtv3 5.33 5.34 5.35 T:lexv2 5.36 5.38 5.41 T:simon128128ctr 6.36 6.38 6.48 T:tpy 6.36 6.39 6.42 T:panama 6.38 6.40 6.41 T:simon128256ctr 7.34 7.47 7.51 T:tpypy 9.92 9.93 9.95 T:aes128estream 11.04 11.06 11.09 T:hc128 16.07 16.08 16.09 T:aes256estream 23.60 23.69 23.83 T:ocelot1 24.92 25.01 25.11 T:ocelot2 27.42 27.45 27.47 T:hc256 39.86 40.09 40.36 T:amastrid

Cycles/byte for 576 bytes 25% 50% 75% stream 1.28 1.29 1.33 T:aes128ctr 1.31 1.31 1.33 chacha8 1.57 1.58 1.59 salsa208 1.66 1.68 1.70 aes256ctr 1.79 1.82 1.84 chacha12 2.16 2.17 2.18 salsa2012 2.19 2.20 2.22 tango642 2.23 2.24 2.28 T:trivium 2.41 2.42 2.46 T:speck6496ctr 2.52 2.54 2.55 T:speck64128ctr 2.77 2.77 2.80 chacha20 2.98 3.00 3.03 T:speck128128ctr 3.07 3.07 3.09 T:speck128192ctr 3.12 3.15 3.18 T:speck128256ctr 3.38 3.39 3.41 salsa20 3.62 3.63 3.76 T:nlsv2 4.17 4.20 4.22 xsalsa20 4.24 4.26 4.28 T:snow20 4.31 4.32 4.34 T:rabbit 4.41 4.45 4.80 T:aes192ctr 5.03 5.04 5.05 T:cryptmtv3 5.34 5.45 5.47 T:simon6496ctr 6.04 6.06 6.08 T:lexv2 6.45 6.53 6.56 T:sosemanuk 7.57 7.67 7.80 T:tpy6 7.79? 7.98? 8.77? T:simon64128ctr 9.41 9.42 9.46 T:simon128256ctr 9.74 9.99 10.82 T:simon128128ctr 10.20 10.24 10.27 T:aes128estream 11.11 11.14 11.23 T:panama 13.39 13.58 13.73 T:tpy 14.08 14.13 14.53 T:tpypy 16.59 16.64 16.67 T:aes256estream 25.93 26.00 26.10 T:hc128 28.91 29.11 29.44 T:ocelot1 30.34 30.58 30.92 T:ocelot2 47.02 47.22 47.43 T:amastrid 68.03 68.09 68.24 T:hc256

Cycles/byte for 64 bytes 25% 50% 75% stream 3.18 3.22 3.30 chacha8 4.07 4.09 4.10 salsa208 4.22 4.25 4.25 chacha12 4.39 4.51 4.77 T:aes128ctr 4.86 4.86 4.95 T:speck6496ctr 4.97 5.13 5.36 T:speck64128ctr 5.13 5.17 5.21 salsa2012 5.53 5.66 5.91 aes256ctr 5.68 5.70 5.81 T:speck128128ctr 5.82 5.86 5.96 T:speck128256ctr 5.87 5.95 6.08 T:speck128192ctr 6.25 6.31 6.34 chacha20 7.06 7.07 7.12 T:trivium 7.51 7.55 7.55 salsa20 9.45 9.54 9.68 T:rabbit 9.90 9.94 10.02 T:snow20 10.47 10.47 10.49 T:simon6496ctr 11.79 11.88 11.98 T:simon64128ctr 12.38 12.42 12.52 T:cryptmtv3 12.66 12.76 12.86 tango642 14.20 14.36 14.52 T:aes128estream 14.77 14.81 14.81 xsalsa20 14.98 15.06 15.24 T:lexv2 16.07 16.31 17.48 T:nlsv2 16.61 16.65 16.66 T:simon128256ctr 16.69 16.80 16.99 T:simon128128ctr 22.90 23.03 23.15 T:aes256estream 26.09? 27.94? 31.46? T:aes192ctr 36.23 37.40 38.33 T:sosemanuk 47.05 48.54 48.87 T:tpy6 71.45 71.64 71.98 T:panama 94.79 96.92 98.86 T:ocelot1 96.52 97.71 100.11 T:ocelot2 100.78 102.25 103.26 T:tpypy 106.29 106.84 107.17 T:tpy 132.32 134.20 137.05 T:amastrid 216.42 216.77 217.61 T:hc128 588.62 589.23 590.05 T:hc256

Cycles/byte for 8 bytes 25% 50% 75% stream 23.12 23.41 25.32 T:speck64128ctr 23.42 23.62 25.11 T:speck6496ctr 25.25 25.25 26.05 T:speck128192ctr 25.67 25.94 26.77 T:speck128256ctr 26.69 26.91 28.81 chacha8 26.70? 28.22? 30.91? T:speck128128ctr 35.19 35.44 36.73 chacha12 35.47 36.16 37.11 T:aes128ctr 42.59 43.30 45.38 salsa208 44.59 44.90 45.66 T:trivium 44.69 45.96 47.07 aes256ctr 51.30 51.66 53.05 chacha20 56.03 57.42 58.88 T:rabbit 58.31 58.77 59.44 salsa2012 64.16 64.56 64.90 T:aes128estream 70.01 70.55 71.29 salsa20 69.90 70.93 71.96 T:simon64128ctr 76.82 77.00 77.59 T:cryptmtv3 77.06 78.89 80.02 T:snow20 80.88 81.31 81.98 T:simon6496ctr 85.16 86.02 93.07 T:nlsv2 89.97 90.50 91.19 T:lexv2 90.43 91.40 92.34 T:aes256estream 96.96 97.77 98.34 tango642 101.56 102.49 103.16 T:simon128128ctr 105.88 105.88 106.73 T:simon128256ctr 127.97 128.70 130.25 xsalsa20 204.92? 217.22? 246.30? T:aes192ctr 295.93 297.93 300.18 T:sosemanuk 362.99 367.06 371.38 T:tpy6 559.80 563.55 570.38 T:panama 613.31 629.95 646.18 T:ocelot2 618.38 630.67 645.07 T:ocelot1 802.43 804.17 816.11 T:tpypy 841.59 848.73 854.97 T:tpy 882.31 893.18 913.04 T:amastrid 1727.92 1730.25 1737.66 T:hc128 4705.76 4708.50 4714.82 T:hc256
