VAMPIRE	eBACS: ECRYPT Benchmarking of Cryptographic Systems	ECRYPT II

Measurements of CAESAR candidates on one machine: amd64; Haswell+AES (306c3); 2013 Intel Xeon E3-1275 V3; 4 x 3500MHz; titan0, supercop-20251222

[Page version: 20260302 18:25:57]

eBAEAD (ECRYPT Benchmarking of Authenticated Ciphers) is a project to measure the performance of authenticated ciphers. This page presents an excerpt of the full eBAEAD benchmark results. The excerpt contains AES-GCM and the third-round CAESAR candidates (plus older versions of the same ciphers for comparison).

Each table row lists the first quartile of many speed measurements (or StQ1 starting with supercop-20260214), the median of many speed measurements (or StQ2 starting with supercop-20260214), the third quartile of many speed measurements (or StQ3 starting with supercop-20260214), and the name of the primitive. Measurements with large interquartile range (or stabilized interquartile range) are indicated in red with question marks. The symbol T: (starting with supercop-20200816) means that the SUPERCOP database at the time of benchmarking did not list constant time as a goal for this implementation. The symbol T!!! means that constant time was listed as a goal for this implementation, but that the implementation failed TIMECOP. (TIMECOP failures are not necessarily security issues; they can sometimes be resolved by, e.g., declaring that a rejection-sampling condition is safe to declassify.)

There is a separate page with more information about each cipher and each implementation.

Test results

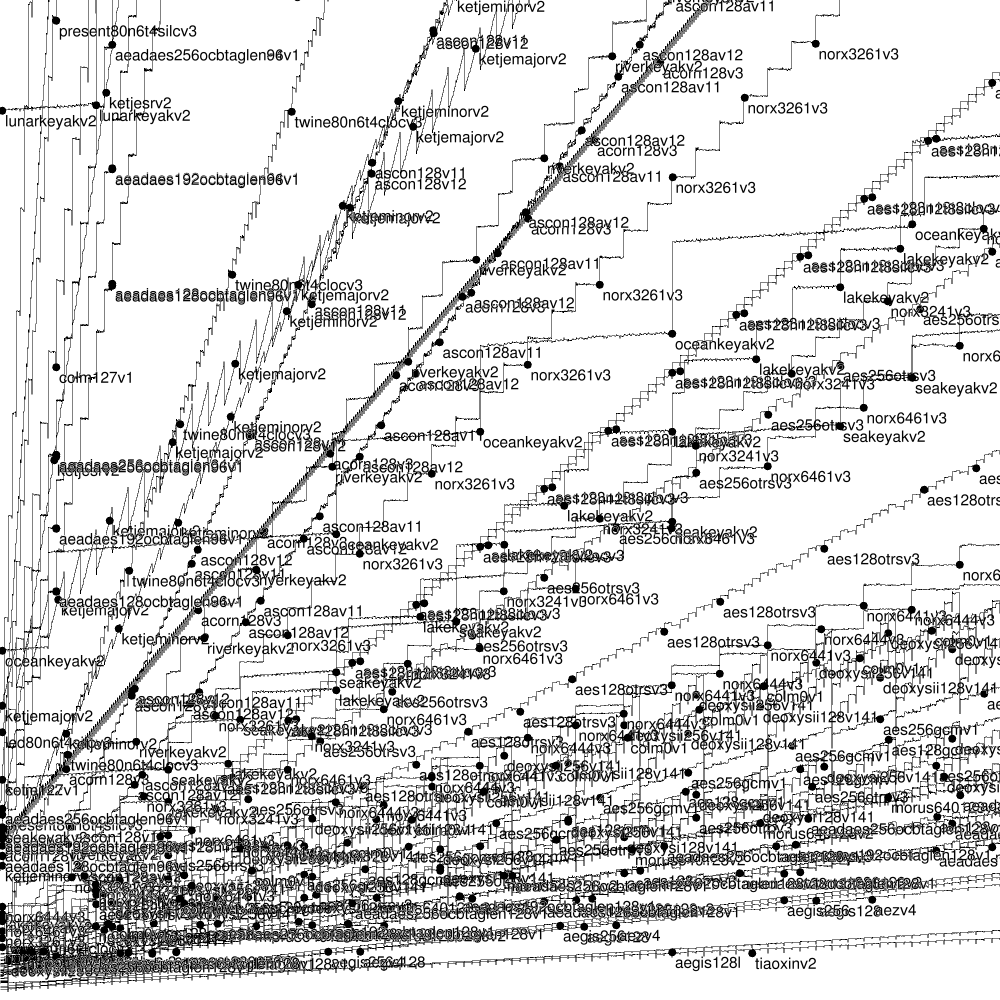

Graphs: old (bytes,cycles)

Cycles/byte for long+0 encrypt 25% 50% 75% aead 0.23? 0.25? 0.26? T:tiaoxinv1 0.23? 0.25? 0.26? T:tiaoxinv2 0.28 0.29 0.29 aegis128l 0.51 0.52 0.52 aegis256 0.56 0.56 0.57 T:aegis128 0.65 0.66 0.67 T:morus1280128v2 0.65 0.66 0.67 T:morus1280256v2 0.65 0.66 0.67 T:morus1280256v1 0.65 0.66 0.67 T:morus1280128v1 0.40? 0.69? 0.74? T:aeadaes128ocbtaglen128v1 0.71 0.71 0.72 T:aezv4 0.71 0.72 0.72 T:aes128otrsv3 0.72 0.72 0.73 T:aezv3 0.72 0.73 0.74 T:aes128otrcv3 0.73 0.74 0.76 T:aes128otrpv3 0.74 0.75 0.77 T:aezv5 0.44? 0.78? 0.84? T:aeadaes192ocbtaglen128v1 0.93 0.94 0.94 T:aes256otrcv3 0.94 0.94 0.95 T:aes256otrsv3 0.93 0.96 0.97 T:deoxysi128v141 0.96 0.97 0.98 T:aes256otrpv3 1.06 1.07 1.08 T:morus640128v1 1.06 1.07 1.08 T:morus640128v2 0.89? 1.07? 1.10? T:aeadaes256ocbtaglen128v1 1.08 1.10 1.13 T:deoxysi256v141 1.14 1.16 1.18 T:deoxysneq128128v1 1.23 1.25 1.26 T:norx6444v3 1.28 1.29 1.30 T:deoxysneq256128v1 1.78 1.80 1.80 T:aes128gcmv1 1.88 1.94 1.97 T:deoxysii128v141 2.13 2.14 2.16 T:norx6441v2 2.12 2.14 2.15 aes256gcmv1 2.15 2.17 2.18 T:norx6441v3 2.11 2.17 2.20 T:deoxysii256v141 2.17 2.23 2.28 T:lunarkeyakv2 2.32 2.33 2.34 T:colm0v1 2.35 2.37 2.40 T:deoxyseq128128v1 2.54 2.57 2.59 T:deoxyseq256128v1 2.58 2.59 2.60 T:norx6441v1 2.87 2.90 2.95 T:seakeyakv2 2.96 3.06 3.12 T:oceankeyakv2 3.23 3.25 3.26 T:norx6461v2 3.24 3.25 3.27 T:norx6461v3 3.74 3.75 3.77 T:norx6444v2 3.86 3.87 3.90 T:norx3241v2 3.85 3.88 3.90 T:norx3241v3 3.90 3.91 3.92 T:norx6461v1 4.05 4.06 4.08 T:norx6444v1 4.10 4.14 4.18 T:lakekeyakv1 4.44 4.49 4.56 T:lakekeyakv2 4.56 4.56 4.56 T:aes128n8t8clocv2 4.56 4.56 4.56 T:aes128n12t8clocv3 4.56 4.56 4.59 T:aes128n12t8clocv2 4.56 4.56 4.57 T:aes128n12t8silcv3 4.56 4.56 4.57 T:aes128n8t8silcv2 4.56 4.56 4.57 T:aes128n12t8silcv2 4.68 4.69 4.71 T:norx3241v1 5.73 5.82 5.91 T:acorn128v3 5.86 5.87 5.88 T:norx3261v3 5.87 5.90 5.91 T:norx3261v2 5.99 6.03 6.04 T:acorn128v2 6.79 6.81 6.84 T:ascon128av11 6.81 6.84 6.86 T:ascon96v1 7.19 7.21 7.23 ascon128av12 7.26 7.36 7.39 T:ketjemajorv2 7.45 7.46 7.47 T:norx3261v1 9.12 9.14 9.14 T:aesjambuv1 9.37 9.38 9.41 T:ketjeminorv2 9.66 9.71 9.75 T:riverkeyakv2 10.19 10.25 10.36 T:ascon128v1 10.21 10.26 10.42 T:ascon128v11 10.59 10.61 10.63 ascon128v12 14.47 14.55 14.60 T:seakeyakv1 14.56 14.58 14.59 T:twine80n6t4clocv3 15.66 15.68 15.69 T:twine80n6t4clocv2 15.75 15.78 15.82 T:aes128otrsv1 15.77 15.78 15.82 T:aes128otrsv2 15.77 15.79 15.81 T:aes128otrpv2 15.74 15.80 15.82 T:aes128otrpv1 14.57? 17.06? 22.05? T:oceankeyakv1 19.68 19.71 19.78 T:aes256otrpv2 19.70 19.72 19.76 T:aes256otrsv1 19.75 19.78 19.84 T:aes256otrsv2 19.74 19.80 19.81 T:aes256otrpv1 24.28 24.36 24.46 T:proest256otrv1 24.74 24.82 24.91 T:aes128n8clocv1 25.05 25.10 25.15 T:aes128n12clocv1 26.53 26.56 26.72 T:aeadaes128ocbtaglen96v1 26.56 26.71 26.87 T:aeadaes128ocbtaglen64v1 26.71 26.88 29.39 T:aes128n12silcv1 26.78 26.93 27.66 T:aes128n8silcv1 31.25 31.27 31.30 T:aeadaes192ocbtaglen96v1 31.23 31.33 31.37 T:aeadaes192ocbtaglen64v1 32.99 33.13 33.62 T:riverkeyakv1 35.83 35.87 36.03 T:aeadaes256ocbtaglen64v1 35.85 35.98 36.07 T:aeadaes256ocbtaglen96v1 35.98 36.01 36.24 T:ketjesrv1 37.55 37.57 37.73 T:ketjesrv2 56.85? 58.87? 90.79? T:proest128otrv1 63.39 63.61 63.81 T:ketjejrv1 63.69 63.73 63.78 T:colm127v1 68.47 68.48 68.51 T:present80n6t4silcv3 75.10 75.22 75.34 T:deoxysneq128128v13 105.10 105.32 114.45 T:ketjejrv2 115.82 115.86 115.89 T:deoxysneq256128v13 128.11 128.18 128.22 T:led80n6t4silcv3 135.89 136.04 136.34 T:twine80n6clocv1 151.57 152.35 152.59 T:deoxyseq128128v13 196.64 196.82 197.46 T:aezv1 233.68 234.41 236.02 T:deoxyseq256128v13 344.41 363.08 366.71 T:acorn128 4517.38 4520.57 4525.59 T:present80n6silcv1 4517.25 4524.56 4538.29 T:present80n6t4silcv2 8280.39 8288.85 8295.64 T:led80n6t4silcv2 8286.88 8293.11 8302.59 T:led80n6silcv1

Cycles/byte for long+0 decrypt 25% 50% 75% aead 0.30 0.30 0.31 aegis128l 0.38 0.39 0.39 T:tiaoxinv1 0.39 0.39 0.41 T:tiaoxinv2 0.56 0.57 0.57 T:aegis128 0.59 0.59 0.60 aegis256 0.66 0.67 0.68 T:morus1280256v2 0.67 0.68 0.69 T:morus1280256v1 0.67 0.68 0.69 T:morus1280128v2 0.67 0.68 0.68 T:morus1280128v1 0.69 0.70 0.70 T:aezv4 0.70 0.70 0.71 T:aezv3 0.50? 0.72? 0.74? T:aeadaes128ocbtaglen128v1 0.74 0.75 0.76 T:aes128otrcv3 0.74 0.75 0.76 T:aezv5 0.74 0.75 0.76 T:aes128otrsv3 0.77 0.78 0.80 T:aes128otrpv3 0.68? 0.84? 0.86? T:aeadaes192ocbtaglen128v1 0.94 0.96 0.96 T:aes256otrcv3 0.96 0.97 0.97 T:aes256otrsv3 0.99 1.01 1.02 T:aes256otrpv3 1.05 1.07 1.08 T:morus640128v1 1.07 1.08 1.08 T:morus640128v2 0.94? 1.08? 1.11? T:aeadaes256ocbtaglen128v1 1.23 1.24 1.26 T:norx6444v3 1.24 1.26 1.28 T:deoxysi128v141 1.31 1.32 1.34 T:deoxysi256v141 1.46 1.47 1.49 T:deoxysneq128128v1 1.61 1.62 1.63 T:deoxysneq256128v1 1.83 1.84 1.85 T:aes128gcmv1 1.86 1.94 1.98 T:deoxysii128v141 2.07 2.08 2.11 T:norx6441v2 2.08 2.09 2.11 T:norx6441v3 2.13 2.17 2.20 T:deoxysii256v141 2.22 2.25 2.26 aes256gcmv1 2.26 2.29 2.31 T:colm0v1 2.23 2.32 2.38 T:lunarkeyakv2 2.52 2.53 2.54 T:norx6441v1 2.95 2.97 3.00 T:seakeyakv2 3.07 3.14 3.18 T:oceankeyakv2 3.17 3.18 3.20 T:norx6461v3 3.17 3.18 3.20 T:deoxyseq128128v1 3.18 3.19 3.20 T:norx6461v2 3.34 3.36 3.37 T:deoxyseq256128v1 3.69 3.72 3.78 T:norx6444v2 3.76 3.78 3.80 T:norx3241v2 3.78 3.80 3.81 T:norx3241v3 3.82 3.84 3.85 T:norx6461v1 3.90 4.04 4.32 T:norx6444v1 4.19 4.23 4.26 T:lakekeyakv1 4.49 4.50 4.50 T:aes128n12t8silcv3 4.50 4.50 4.50 T:aes128n12t8clocv2 4.50 4.50 4.50 T:aes128n8t8clocv2 4.49 4.50 4.50 T:aes128n12t8silcv2 4.50 4.50 4.50 T:aes128n8t8silcv2 4.50 4.50 4.50 T:aes128n12t8clocv3 4.50 4.53 4.56 T:lakekeyakv2 4.57 4.58 4.59 T:norx3241v1 5.81 5.83 5.85 T:norx3261v3 5.84 5.86 5.88 T:norx3261v2 5.92 5.97 6.00 T:acorn128v2 6.62 6.80 6.96 T:acorn128v3 7.06 7.08 7.10 T:ascon96v1 7.07 7.10 7.12 T:ascon128av11 7.11 7.16 7.17 ascon128av12 7.36 7.39 7.40 T:norx3261v1 8.11 8.16 8.22 T:ketjemajorv2 9.12 9.15 9.18 T:ketjeminorv2 9.43 9.43 9.44 T:aesjambuv1 9.98 10.04 10.11 T:riverkeyakv2 10.33 10.36 10.45 T:ascon128v11 10.31 10.37 10.45 T:ascon128v1 10.57 10.62 10.63 ascon128v12 14.58 14.64 14.74 T:seakeyakv1 14.73 14.75 14.80 T:twine80n6t4clocv3 15.59 15.61 15.64 T:twine80n6t4clocv2 15.77 15.79 15.81 T:aes128otrpv1 15.75 15.81 15.84 T:aes128otrpv2 15.79 15.81 15.84 T:aes128otrsv2 15.78 15.81 15.86 T:aes128otrsv1 14.56? 17.21? 22.01? T:oceankeyakv1 19.69 19.73 19.76 T:aes256otrsv1 19.71 19.74 19.77 T:aes256otrpv1 19.71 19.75 19.81 T:aes256otrpv2 19.71 19.76 19.81 T:aes256otrsv2 23.99 24.06 24.12 T:proest256otrv1 24.15 24.18 24.24 T:aes128n12clocv1 25.62 25.69 25.75 T:aes128n8clocv1 26.86 26.99 27.71 T:aes128n8silcv1 26.76 27.01 29.57 T:aes128n12silcv1 33.47 33.59 34.04 T:riverkeyakv1 35.18 35.25 35.29 T:aeadaes128ocbtaglen96v1 35.21 35.26 35.58 T:aeadaes128ocbtaglen64v1 36.23 36.34 36.43 T:ketjesrv2 36.62 36.67 36.91 T:ketjesrv1 41.60 41.65 41.71 T:aeadaes192ocbtaglen96v1 41.62 41.72 41.77 T:aeadaes192ocbtaglen64v1 48.03 48.12 48.16 T:aeadaes256ocbtaglen64v1 48.12 48.18 48.36 T:aeadaes256ocbtaglen96v1 59.85 59.88 59.96 T:proest128otrv1 64.21 64.29 64.48 T:ketjejrv1 68.64 68.67 68.70 T:present80n6t4silcv3 78.18 78.27 78.40 T:colm127v1 104.88 105.51 105.58 T:deoxysneq128128v13 106.73 107.20 108.75 T:ketjejrv2 128.24 128.31 128.36 T:led80n6t4silcv3 136.13 136.23 136.33 T:twine80n6clocv1 149.46 149.80 153.35 T:deoxysneq256128v13 151.53 152.65 152.81 T:deoxyseq128128v13 196.56 196.88 197.70 T:aezv1 233.74 234.40 236.16 T:deoxyseq256128v13 337.70 355.01 359.09 T:acorn128 4514.29 4520.04 4523.69 T:present80n6t4silcv2 4515.22 4520.12 4521.91 T:present80n6silcv1 8289.02 8293.20 8298.98 T:led80n6t4silcv2 8288.05 8295.70 8299.79 T:led80n6silcv1

Cycles/byte for long+0 forgery 25% 50% 75% aead 0.25? 0.27? 0.28? T:aezv4 0.25? 0.27? 0.30? T:aezv3 0.29 0.30 0.32 T:aezv5 0.30 0.30 0.31 aegis128l 0.39 0.39 0.41 T:tiaoxinv1 0.39 0.39 0.41 T:tiaoxinv2 0.56 0.57 0.57 T:aegis128 0.59 0.59 0.60 aegis256 0.66 0.67 0.68 T:morus1280256v1 0.67 0.68 0.68 T:morus1280256v2 0.67 0.68 0.68 T:morus1280128v2 0.67 0.68 0.69 T:morus1280128v1 0.56? 0.72? 0.74? T:aeadaes128ocbtaglen128v1 0.74 0.74 0.75 T:aes128otrcv3 0.74 0.75 0.75 T:aes128otrsv3 0.77 0.78 0.78 T:aes128otrpv3 0.75? 0.84? 1.22? T:aeadaes192ocbtaglen128v1 0.94 0.96 0.96 T:aes256otrcv3 0.97 0.97 0.97 T:aes256otrsv3 0.99 0.99 1.00 T:aes256otrpv3 1.06 1.07 1.08 T:morus640128v2 1.06 1.07 1.08 T:morus640128v1 0.72? 1.11? 1.44? T:aeadaes256ocbtaglen128v1 1.23 1.23 1.25 T:norx6444v3 1.25 1.27 1.29 T:deoxysi128v141 1.31 1.33 1.35 T:deoxysi256v141 1.46 1.48 1.50 T:deoxysneq128128v1 1.61 1.62 1.64 T:deoxysneq256128v1 1.83 1.83 1.84 T:aes128gcmv1 1.90 1.94 1.97 T:deoxysii128v141 2.07 2.09 2.10 T:norx6441v3 2.07 2.09 2.10 T:norx6441v2 2.14 2.16 2.17 T:deoxysii256v141 2.21 2.23 2.26 aes256gcmv1 2.26 2.28 2.30 T:colm0v1 2.28 2.34 2.37 T:lunarkeyakv2 2.52 2.54 2.55 T:norx6441v1 2.97 2.99 3.01 T:seakeyakv2 3.09 3.15 3.18 T:oceankeyakv2 3.16 3.17 3.19 T:norx6461v2 3.17 3.18 3.19 T:norx6461v3 3.17 3.18 3.21 T:deoxyseq128128v1 3.33 3.36 3.39 T:deoxyseq256128v1 3.73 3.74 3.81 T:norx6444v2 3.77 3.78 3.78 T:norx3241v2 3.78 3.80 3.81 T:norx3241v3 3.82 3.84 3.85 T:norx6461v1 3.92 4.06 4.35 T:norx6444v1 4.21 4.24 4.26 T:lakekeyakv1 4.48 4.49 4.50 T:aes128n12t8clocv3 4.48 4.50 4.50 T:aes128n8t8clocv2 4.49 4.50 4.50 T:aes128n12t8clocv2 4.50 4.50 4.50 T:aes128n12t8silcv3 4.50 4.50 4.50 T:aes128n8t8silcv2 4.50 4.50 4.50 T:aes128n12t8silcv2 4.51 4.56 4.60 T:lakekeyakv2 4.56 4.58 4.59 T:norx3241v1 5.81 5.82 5.83 T:norx3261v3 5.84 5.85 5.87 T:norx3261v2 5.95 5.98 6.00 T:acorn128v2 6.65 6.81 6.97 T:acorn128v3 7.08 7.09 7.12 T:ascon128av11 7.08 7.10 7.12 T:ascon96v1 7.14 7.15 7.18 ascon128av12 7.37 7.38 7.40 T:norx3261v1 8.14 8.18 8.29 T:ketjemajorv2 9.13 9.17 9.21 T:ketjeminorv2 9.43 9.43 9.44 T:aesjambuv1 10.03 10.13 10.15 T:riverkeyakv2 10.24 10.35 10.44 T:ascon128v1 10.34 10.39 10.44 T:ascon128v11 10.44 10.58 10.62 ascon128v12 14.57 14.64 14.76 T:seakeyakv1 14.74 14.76 14.78 T:twine80n6t4clocv3 15.59 15.61 15.63 T:twine80n6t4clocv2 15.76 15.81 15.87 T:aes128otrpv1 15.80 15.83 15.88 T:aes128otrsv1 15.81 15.83 15.87 T:aes128otrpv2 15.81 15.84 15.89 T:aes128otrsv2 14.61? 17.18? 22.19? T:oceankeyakv1 19.70 19.72 19.80 T:aes256otrpv1 19.72 19.76 19.80 T:aes256otrsv1 19.74 19.77 19.82 T:aes256otrsv2 19.72 19.77 19.82 T:aes256otrpv2 23.97 24.03 24.14 T:proest256otrv1 24.11 24.19 24.28 T:aes128n12clocv1 25.65 25.70 25.77 T:aes128n8clocv1 26.87 26.97 27.69 T:aes128n8silcv1 26.78 27.00 29.60 T:aes128n12silcv1 33.47 33.65 34.00 T:riverkeyakv1 35.20 35.24 35.31 T:aeadaes128ocbtaglen96v1 35.22 35.29 35.62 T:aeadaes128ocbtaglen64v1 36.26 36.42 36.49 T:ketjesrv2 36.63 36.68 36.91 T:ketjesrv1 41.65 41.69 41.73 T:aeadaes192ocbtaglen64v1 41.67 41.71 41.79 T:aeadaes192ocbtaglen96v1 48.04 48.08 48.13 T:aeadaes256ocbtaglen64v1 48.09 48.17 48.34 T:aeadaes256ocbtaglen96v1 59.88 59.96 60.04 T:proest128otrv1 64.22 64.40 64.52 T:ketjejrv1 68.65 68.68 68.76 T:present80n6t4silcv3 77.04 77.11 77.28 T:colm127v1 105.38 105.52 105.62 T:deoxysneq128128v13 106.88 107.27 108.75 T:ketjejrv2 128.19 128.25 128.37 T:led80n6t4silcv3 136.15 136.24 136.35 T:twine80n6clocv1 149.56 149.85 153.32 T:deoxysneq256128v13 152.56 152.76 152.86 T:deoxyseq128128v13 196.47 196.71 197.63 T:aezv1 233.97 234.37 236.08 T:deoxyseq256128v13 337.47 355.03 359.09 T:acorn128 4514.97 4519.50 4521.72 T:present80n6silcv1 4515.01 4519.87 4524.11 T:present80n6t4silcv2 8285.15 8288.20 8305.54 T:led80n6silcv1 8282.53 8289.74 8299.29 T:led80n6t4silcv2

Cycles/byte for long+long encrypt 25% 50% 75% aead 0.21? 0.22? 0.24? T:tiaoxinv1 0.20? 0.22? 0.23? T:tiaoxinv2 0.27 0.27 0.28 aegis128l 0.49 0.50 0.51 T:aezv4 0.50 0.51 0.52 aegis256 0.51 0.52 0.54 T:aezv3 0.53 0.54 0.55 T:aezv5 0.56 0.56 0.57 T:aegis128 0.63 0.64 0.64 T:morus1280256v2 0.63 0.64 0.64 T:morus1280128v1 0.63 0.64 0.65 T:morus1280128v2 0.64 0.64 0.65 T:morus1280256v1 0.60? 0.65? 0.70? T:aeadaes128ocbtaglen128v1 0.72 0.73 0.73 T:aes128otrcv3 0.64? 0.77? 0.87? T:aeadaes192ocbtaglen128v1 0.81 0.82 0.82 T:aes128otrpv3 0.94 0.95 0.96 T:aes256otrcv3 0.93 0.95 0.97 T:deoxysi128v141 1.02 1.02 1.03 T:morus640128v2 1.02 1.02 1.04 T:morus640128v1 0.84? 1.05? 1.24? T:aeadaes256ocbtaglen128v1 1.06 1.07 1.08 T:aes256otrpv3 1.08 1.11 1.13 T:deoxysi256v141 1.12 1.14 1.15 T:deoxysneq128128v1 1.19 1.20 1.22 T:aes128gcmv1 1.26 1.27 1.28 T:deoxysneq256128v1 1.38 1.40 1.41 aes256gcmv1 1.43 1.46 1.48 T:deoxysii128v141 1.59 1.61 1.64 T:deoxysii256v141 1.64 1.65 1.66 T:colm0v1 1.68 1.69 1.70 T:norx6444v3 1.77 1.78 1.80 T:deoxyseq128128v1 1.89 1.92 1.95 T:deoxyseq256128v1 2.15 2.16 2.17 T:norx6441v3 2.14 2.16 2.17 T:norx6441v2 2.45 2.47 2.49 T:seakeyakv2 2.57 2.58 2.61 T:oceankeyakv2 2.58 2.58 2.59 T:norx6441v1 2.60 2.61 2.61 T:aes128otrsv3 3.04 3.09 3.14 T:lunarkeyakv2 3.24 3.25 3.27 T:norx6461v3 3.26 3.27 3.29 T:norx6461v2 3.60 3.60 3.60 T:aes256otrsv3 3.70 3.71 3.73 T:norx6444v2 3.86 3.87 3.89 T:norx3241v2 3.87 3.88 3.91 T:norx3241v3 3.88 3.89 3.92 T:norx6461v1 3.92 3.95 3.97 T:lakekeyakv1 3.96 3.99 4.00 T:lakekeyakv2 4.01 4.02 4.02 T:norx6444v1 4.53 4.53 4.53 T:aes128n8t8clocv2 4.53 4.53 4.54 T:aes128n12t8clocv3 4.53 4.53 4.53 T:aes128n8t8silcv2 4.53 4.53 4.53 T:aes128n12t8silcv2 4.53 4.53 4.53 T:aes128n12t8silcv3 4.53 4.54 4.54 T:aes128n12t8clocv2 4.68 4.70 4.72 T:norx3241v1 5.84 5.86 5.87 T:norx3261v3 5.85 5.87 5.88 T:norx3261v2 6.17 6.25 6.29 T:acorn128v3 6.34 6.39 6.44 T:ketjemajorv2 6.79 6.80 6.83 T:ascon96v1 6.77 6.81 6.82 T:ascon128av11 6.99 7.02 7.04 T:riverkeyakv2 7.16 7.18 7.19 ascon128av12 7.28 7.29 7.30 T:acorn128v2 7.47 7.48 7.49 T:norx3261v1 8.32 8.37 8.39 T:ketjeminorv2 9.17 9.18 9.18 T:aesjambuv1 10.05 10.13 10.19 T:ascon128v1 10.04 10.13 10.18 T:ascon128v11 10.60 10.62 10.63 ascon128v12 14.13 14.15 14.18 T:aes128otrsv1 14.15 14.18 14.20 T:aes128otrsv2 14.36 14.37 14.39 T:twine80n6t4clocv3 14.39 14.43 14.46 T:seakeyakv1 15.46 15.49 15.52 T:twine80n6t4clocv2 15.82 15.83 15.87 T:aes128otrpv2 15.81 15.84 15.92 T:aes128otrpv1 15.74? 17.01? 20.63? T:oceankeyakv1 18.08 18.09 18.12 T:aes256otrsv1 18.12 18.17 18.20 T:aes256otrsv2 18.74 18.78 18.80 T:aes128n8clocv1 19.20 19.22 19.24 T:aes128n12clocv1 19.75 19.77 19.80 T:aes256otrpv2 19.76 19.79 19.81 T:aes256otrpv1 20.03 20.08 20.61 T:aes128n8silcv1 20.01 20.11 21.42 T:aes128n12silcv1 24.52 24.56 24.65 T:proest256otrv1 25.88 25.90 25.99 T:aeadaes128ocbtaglen96v1 25.86 25.91 26.01 T:aeadaes128ocbtaglen64v1 30.46 30.50 30.54 T:aeadaes192ocbtaglen96v1 30.48 30.53 30.55 T:aeadaes192ocbtaglen64v1 31.15 31.41 31.88 T:riverkeyakv1 32.85 32.87 33.08 T:ketjesrv1 34.33 34.37 34.61 T:ketjesrv2 35.16 35.18 35.25 T:aeadaes256ocbtaglen64v1 35.10 35.20 35.28 T:aeadaes256ocbtaglen96v1 45.63 45.65 45.68 T:colm127v1 58.48? 59.61? 75.44? T:proest128otrv1 60.17 60.31 60.41 T:ketjejrv1 67.85 67.88 67.90 T:present80n6t4silcv3 75.39 75.43 75.72 T:deoxysneq128128v13 101.92 101.97 102.06 T:twine80n6clocv1 102.67 107.12 108.23 T:ketjejrv2 114.08 114.11 114.18 T:deoxyseq128128v13 115.82 115.85 115.90 T:deoxysneq256128v13 127.06 127.65 136.15 T:led80n6t4silcv3 129.97 130.11 131.17 T:aezv1 174.73 175.43 176.55 T:deoxyseq256128v13 344.76 362.54 364.91 T:acorn128 3386.27 3387.18 3392.64 T:present80n6silcv1 3388.85 3392.22 3399.05 T:present80n6t4silcv2 6214.29 6216.45 6221.18 T:led80n6t4silcv2 6215.36 6220.81 6223.03 T:led80n6silcv1

Cycles/byte for long+long decrypt 25% 50% 75% aead 0.27 0.28 0.28 aegis128l 0.27 0.29 0.29 T:tiaoxinv2 0.28 0.29 0.30 T:tiaoxinv1 0.49 0.49 0.50 T:aezv4 0.50 0.51 0.52 T:aezv3 0.52 0.53 0.54 T:aezv5 0.54 0.55 0.55 aegis256 0.56 0.57 0.57 T:aegis128 0.64 0.64 0.64 T:morus1280128v2 0.64 0.64 0.65 T:morus1280256v1 0.64 0.64 0.65 T:morus1280128v1 0.64 0.64 0.65 T:morus1280256v2 0.62? 0.67? 0.69? T:aeadaes128ocbtaglen128v1 0.73 0.74 0.75 T:aes128otrcv3 0.62? 0.80? 0.98? T:aeadaes192ocbtaglen128v1 0.83 0.84 0.85 T:aes128otrpv3 0.96 0.96 0.96 T:aes256otrcv3 1.02 1.03 1.04 T:morus640128v1 1.02 1.03 1.04 T:morus640128v2 0.87? 1.05? 1.21? T:aeadaes256ocbtaglen128v1 1.08 1.09 1.10 T:aes256otrpv3 1.08 1.10 1.12 T:deoxysi128v141 1.19 1.19 1.21 T:deoxysi256v141 1.22 1.23 1.24 T:aes128gcmv1 1.28 1.29 1.30 T:deoxysneq128128v1 1.41 1.43 1.44 aes256gcmv1 1.43 1.44 1.46 T:deoxysneq256128v1 1.41 1.47 1.48 T:deoxysii128v141 1.59 1.60 1.63 T:deoxysii256v141 1.60 1.62 1.64 T:colm0v1 1.71 1.71 1.72 T:norx6444v3 2.11 2.12 2.13 T:norx6441v3 2.11 2.13 2.14 T:norx6441v2 2.18 2.18 2.20 T:deoxyseq128128v1 2.30 2.32 2.34 T:deoxyseq256128v1 2.48 2.50 2.52 T:seakeyakv2 2.56 2.56 2.57 T:norx6441v1 2.58 2.60 2.67 T:oceankeyakv2 2.62 2.62 2.62 T:aes128otrsv3 3.07 3.13 3.17 T:lunarkeyakv2 3.20 3.21 3.23 T:norx6461v3 3.22 3.22 3.23 T:norx6461v2 3.61 3.61 3.61 T:aes256otrsv3 3.68 3.70 3.72 T:norx6444v2 3.84 3.84 3.87 T:norx6461v1 3.83 3.84 3.86 T:norx3241v3 3.84 3.85 3.86 T:norx3241v2 3.97 3.99 4.00 T:lakekeyakv1 3.94 4.00 4.14 T:norx6444v1 3.99 4.01 4.03 T:lakekeyakv2 4.50 4.50 4.50 T:aes128n8t8silcv2 4.50 4.50 4.50 T:aes128n12t8silcv3 4.50 4.50 4.51 T:aes128n12t8silcv2 4.50 4.50 4.51 T:aes128n12t8clocv3 4.50 4.50 4.51 T:aes128n12t8clocv2 4.50 4.51 4.51 T:aes128n8t8clocv2 4.62 4.64 4.64 T:norx3241v1 5.83 5.85 5.86 T:norx3261v2 5.84 5.85 5.86 T:norx3261v3 6.64 6.74 6.81 T:acorn128v3 6.81 6.89 6.95 T:ketjemajorv2 6.88 6.90 6.94 T:ascon128av11 6.90 6.93 6.96 T:ascon96v1 7.15 7.17 7.19 ascon128av12 7.17 7.19 7.20 T:riverkeyakv2 7.25 7.28 7.30 T:acorn128v2 7.41 7.43 7.44 T:norx3261v1 8.19 8.20 8.23 T:ketjeminorv2 9.32 9.33 9.33 T:aesjambuv1 10.08 10.11 10.17 T:ascon128v11 10.11 10.15 10.23 T:ascon128v1 10.50 10.52 10.53 ascon128v12 14.16 14.17 14.18 T:aes128otrsv1 14.16 14.18 14.20 T:aes128otrsv2 14.44 14.46 14.48 T:twine80n6t4clocv3 14.45 14.48 14.51 T:seakeyakv1 15.43 15.47 15.49 T:twine80n6t4clocv2 15.81 15.84 15.87 T:aes128otrpv2 15.81 15.86 15.93 T:aes128otrpv1 15.77? 17.04? 20.67? T:oceankeyakv1 18.09 18.13 18.17 T:aes256otrsv1 18.12 18.15 18.16 T:aes256otrsv2 18.74 18.77 18.80 T:aes128n12clocv1 19.19 19.23 19.27 T:aes128n8clocv1 19.75 19.77 19.79 T:aes256otrpv1 19.78 19.82 19.96 T:aes256otrpv2 20.08 20.16 20.68 T:aes128n8silcv1 20.06 20.18 21.44 T:aes128n12silcv1 24.36 24.41 24.48 T:proest256otrv1 30.18 30.22 30.34 T:aeadaes128ocbtaglen64v1 30.21 30.24 30.27 T:aeadaes128ocbtaglen96v1 31.53 31.62 32.14 T:riverkeyakv1 33.22 33.24 33.41 T:ketjesrv1 33.75 33.83 33.91 T:ketjesrv2 35.71 35.73 35.75 T:aeadaes192ocbtaglen96v1 35.72 35.75 35.77 T:aeadaes192ocbtaglen64v1 41.25 41.27 41.38 T:aeadaes256ocbtaglen96v1 41.25 41.28 41.32 T:aeadaes256ocbtaglen64v1 52.91 52.95 53.08 T:colm127v1 60.00 60.07 60.12 T:proest128otrv1 60.62 60.71 60.82 T:ketjejrv1 67.95 67.98 68.00 T:present80n6t4silcv3 90.18 90.60 90.70 T:deoxysneq128128v13 102.04 102.11 102.21 T:twine80n6clocv1 103.15 103.36 103.86 T:ketjejrv2 114.15 114.22 114.28 T:deoxyseq128128v13 127.56 127.64 127.72 T:led80n6t4silcv3 130.26 130.41 130.88 T:aezv1 132.77 133.18 136.59 T:deoxysneq256128v13 175.20 175.46 176.46 T:deoxyseq256128v13 341.28 358.57 361.02 T:acorn128 3386.61 3390.03 3391.95 T:present80n6t4silcv2 3386.91 3390.29 3391.05 T:present80n6silcv1 6213.07 6217.99 6223.66 T:led80n6t4silcv2 6224.28 6228.10 6231.31 T:led80n6silcv1

Cycles/byte for long+long forgery 25% 50% 75% aead 0.28 0.28 0.28 aegis128l 0.27 0.28 0.30 T:aezv4 0.29 0.29 0.30 T:tiaoxinv1 0.28 0.29 0.30 T:tiaoxinv2 0.29 0.30 0.31 T:aezv3 0.28? 0.30? 0.32? T:aezv5 0.55 0.55 0.55 aegis256 0.56 0.56 0.57 T:aegis128 0.64 0.64 0.65 T:morus1280128v1 0.64 0.64 0.65 T:morus1280256v2 0.64 0.64 0.65 T:morus1280256v1 0.64 0.65 0.65 T:morus1280128v2 0.66 0.68 0.69 T:aeadaes128ocbtaglen128v1 0.73 0.74 0.74 T:aes128otrcv3 0.79 0.80 0.81 T:aeadaes192ocbtaglen128v1 0.83 0.84 0.84 T:aes128otrpv3 0.96 0.96 0.96 T:aes256otrcv3 1.02 1.03 1.04 T:morus640128v2 1.03 1.04 1.04 T:morus640128v1 1.04 1.05 1.06 T:aeadaes256ocbtaglen128v1 1.08 1.08 1.09 T:aes256otrpv3 1.09 1.10 1.12 T:deoxysi128v141 1.18 1.19 1.20 T:deoxysi256v141 1.21 1.22 1.23 T:aes128gcmv1 1.29 1.30 1.31 T:deoxysneq128128v1 1.41 1.42 1.44 aes256gcmv1 1.44 1.45 1.46 T:deoxysneq256128v1 1.43 1.46 1.48 T:deoxysii128v141 1.59 1.61 1.62 T:deoxysii256v141 1.61 1.62 1.63 T:colm0v1 1.71 1.71 1.72 T:norx6444v3 2.11 2.12 2.13 T:norx6441v2 2.11 2.12 2.13 T:norx6441v3 2.18 2.18 2.19 T:deoxyseq128128v1 2.31 2.32 2.34 T:deoxyseq256128v1 2.49 2.51 2.52 T:seakeyakv2 2.55 2.56 2.56 T:norx6441v1 2.59 2.62 2.63 T:oceankeyakv2 2.62 2.62 2.62 T:aes128otrsv3 3.09 3.12 3.15 T:lunarkeyakv2 3.20 3.22 3.23 T:norx6461v3 3.21 3.22 3.23 T:norx6461v2 3.61 3.61 3.61 T:aes256otrsv3 3.69 3.71 3.73 T:norx6444v2 3.83 3.84 3.85 T:norx6461v1 3.84 3.85 3.85 T:norx3241v3 3.84 3.85 3.86 T:norx3241v2 3.99 4.00 4.02 T:lakekeyakv1 3.95 4.02 4.15 T:norx6444v1 4.01 4.03 4.04 T:lakekeyakv2 4.49 4.50 4.50 T:aes128n8t8silcv2 4.50 4.50 4.50 T:aes128n12t8silcv2 4.49 4.50 4.51 T:aes128n12t8silcv3 4.49 4.50 4.51 T:aes128n12t8clocv3 4.49 4.51 4.51 T:aes128n12t8clocv2 4.50 4.51 4.51 T:aes128n8t8clocv2 4.62 4.63 4.64 T:norx3241v1 5.82 5.83 5.85 T:norx3261v2 5.83 5.85 5.86 T:norx3261v3 6.64 6.73 6.80 T:acorn128v3 6.79 6.88 6.93 T:ketjemajorv2 6.88 6.90 6.91 T:ascon128av11 6.91 6.95 6.96 T:ascon96v1 7.14 7.17 7.18 ascon128av12 7.18 7.19 7.27 T:riverkeyakv2 7.26 7.27 7.28 T:acorn128v2 7.41 7.42 7.44 T:norx3261v1 8.20 8.22 8.25 T:ketjeminorv2 9.32 9.32 9.33 T:aesjambuv1 10.10 10.13 10.17 T:ascon128v1 10.11 10.22 10.28 T:ascon128v11 10.49 10.51 10.54 ascon128v12 14.17 14.19 14.20 T:aes128otrsv1 14.18 14.20 14.22 T:aes128otrsv2 14.45 14.46 14.48 T:twine80n6t4clocv3 14.46 14.49 14.51 T:seakeyakv1 15.44 15.47 15.50 T:twine80n6t4clocv2 15.82 15.84 15.95 T:aes128otrpv1 15.84 15.86 15.89 T:aes128otrpv2 15.69? 16.98? 20.67? T:oceankeyakv1 18.12 18.14 18.16 T:aes256otrsv1 18.10 18.16 18.17 T:aes256otrsv2 18.71 18.74 18.77 T:aes128n12clocv1 19.19 19.23 19.26 T:aes128n8clocv1 19.78 19.80 19.82 T:aes256otrpv1 19.79 19.82 19.95 T:aes256otrpv2 20.07 20.16 21.43 T:aes128n12silcv1 20.08 20.16 20.67 T:aes128n8silcv1 24.37 24.42 24.48 T:proest256otrv1 30.18 30.23 30.35 T:aeadaes128ocbtaglen64v1 30.22 30.26 30.29 T:aeadaes128ocbtaglen96v1 31.48 31.53 32.06 T:riverkeyakv1 33.23 33.26 33.43 T:ketjesrv1 33.80 33.86 33.98 T:ketjesrv2 35.71 35.74 35.77 T:aeadaes192ocbtaglen64v1 35.72 35.75 35.77 T:aeadaes192ocbtaglen96v1 41.22 41.26 41.37 T:aeadaes256ocbtaglen96v1 41.27 41.30 41.33 T:aeadaes256ocbtaglen64v1 52.29 52.35 52.42 T:colm127v1 60.04 60.09 60.16 T:proest128otrv1 60.57 60.66 60.73 T:ketjejrv1 67.97 67.99 68.00 T:present80n6t4silcv3 90.61 90.67 90.72 T:deoxysneq128128v13 102.05 102.11 102.18 T:twine80n6clocv1 103.19 103.55 104.19 T:ketjejrv2 114.12 114.23 114.28 T:deoxyseq128128v13 127.56 127.63 127.70 T:led80n6t4silcv3 130.17 130.24 130.84 T:aezv1 132.79 133.08 136.58 T:deoxysneq256128v13 175.22 175.41 176.48 T:deoxyseq256128v13 341.22 358.55 361.06 T:acorn128 3386.83 3390.31 3392.19 T:present80n6t4silcv2 3386.62 3390.37 3390.77 T:present80n6silcv1 6212.08 6216.29 6220.83 T:led80n6t4silcv2 6224.34 6227.48 6229.36 T:led80n6silcv1

Cycles/byte for 0+long encrypt 25% 50% 75% aead 0.18? 0.19? 0.20? T:tiaoxinv1 0.18? 0.19? 0.20? T:tiaoxinv2 0.25 0.26 0.26 aegis128l 0.28 0.29 0.30 T:aezv4 0.31 0.32 0.32 T:aezv3 0.31 0.33 0.33 T:aezv5 0.49 0.50 0.50 aegis256 0.56 0.56 0.57 T:aegis128 0.61 0.62 0.62 T:morus1280256v2 0.51? 0.62? 0.64? T:aeadaes128ocbtaglen128v1 0.61 0.62 0.63 T:morus1280128v1 0.61 0.62 0.63 T:morus1280128v2 0.61 0.62 0.63 T:morus1280256v1 0.61 0.62 0.65 T:aes128gcmv1 0.61 0.63 0.65 aes256gcmv1 0.73 0.74 0.76 T:aes128otrcv3 0.60? 0.77? 1.12? T:aeadaes192ocbtaglen128v1 0.89 0.90 0.92 T:aes128otrpv3 0.92 0.94 0.97 T:deoxysi128v141 0.92 0.96 0.98 T:deoxysii128v141 0.94 0.96 0.97 T:aes256otrcv3 0.96 0.97 0.97 T:colm0v1 0.96 0.97 0.98 T:morus640128v2 0.97 0.97 0.98 T:morus640128v1 0.65? 1.03? 1.37? T:aeadaes256ocbtaglen128v1 1.04 1.07 1.08 T:deoxysii256v141 1.09 1.10 1.12 T:deoxysi256v141 1.09 1.11 1.12 T:deoxysneq128128v1 1.15 1.18 1.19 T:aes256otrpv3 1.17 1.18 1.19 T:deoxyseq128128v1 1.23 1.25 1.26 T:deoxysneq256128v1 1.28 1.29 1.30 T:deoxyseq256128v1 1.96 2.00 2.04 T:oceankeyakv2 1.96 2.01 2.07 T:lunarkeyakv2 2.13 2.15 2.16 T:norx6441v3 2.13 2.15 2.17 T:norx6441v2 2.13 2.15 2.16 T:norx6444v3 2.35 2.38 2.42 T:seakeyakv2 2.57 2.59 2.60 T:norx6441v1 3.25 3.26 3.28 T:norx6461v3 3.28 3.29 3.30 T:norx6461v2 3.57 3.62 3.63 T:lakekeyakv2 3.64 3.66 3.70 T:norx6444v2 3.65 3.70 3.71 T:lakekeyakv1 3.85 3.87 3.88 T:norx3241v3 3.86 3.87 3.88 T:norx3241v2 3.88 3.89 3.91 T:norx6461v1 3.97 3.98 3.99 T:norx6444v1 4.50 4.50 4.50 T:aes128n12t8silcv3 4.50 4.50 4.50 T:aes128n12t8silcv2 4.49 4.50 4.50 T:aes128n12t8clocv3 4.50 4.50 4.50 T:aes128n12t8clocv2 4.50 4.50 4.50 T:aes128n8t8clocv2 4.50 4.50 4.50 T:aes128n8t8silcv2 4.50 4.50 4.50 T:aes128otrsv3 4.68 4.70 4.72 T:norx3241v1 5.40 5.43 5.46 T:ketjemajorv2 5.79 5.81 5.84 T:norx3261v2 5.82 5.86 5.87 T:norx3261v3 6.25 6.25 6.25 T:aes256otrsv3 6.57 6.62 6.64 T:riverkeyakv2 6.54 6.65 6.74 T:acorn128v3 6.67 6.69 6.75 T:ascon96v1 6.66 6.71 6.97 T:ascon128av11 7.10 7.13 7.15 ascon128av12 7.21 7.28 7.34 T:ketjeminorv2 7.48 7.50 7.51 T:norx3261v1 8.51 8.54 8.56 T:acorn128v2 9.21 9.21 9.22 T:aesjambuv1 9.79 9.83 10.10 T:ascon128v11 9.78 9.84 10.16 T:ascon128v1 10.60 10.62 10.63 ascon128v12 12.46 12.49 12.52 T:aes128otrsv1 12.48 12.50 12.52 T:aes128otrsv2 12.66 12.69 12.72 T:aes128n8clocv1 13.25 13.27 13.29 T:aes128n12clocv1 13.23 13.30 13.64 T:aes128n8silcv1 13.27 13.30 13.33 T:aes128n12silcv1 14.15 14.16 14.19 T:twine80n6t4clocv3 14.27 14.31 14.37 T:seakeyakv1 15.18 15.20 15.31 T:twine80n6t4clocv2 15.78 15.80 15.83 T:aes128otrpv2 15.76 15.81 15.96 T:aes128otrpv1 16.38 16.43 16.50 T:aes256otrsv1 16.41 16.49 16.53 T:aes256otrsv2 15.13? 16.82? 20.92? T:oceankeyakv1 19.73 19.77 19.80 T:aes256otrpv2 19.75 19.77 19.81 T:aes256otrpv1 24.67 24.75 24.82 T:proest256otrv1 25.09 25.11 25.14 T:aeadaes128ocbtaglen64v1 25.20 25.24 25.27 T:aeadaes128ocbtaglen96v1 27.55 27.58 27.62 T:colm127v1 29.45 29.56 30.27 T:riverkeyakv1 29.70 29.74 29.77 T:aeadaes192ocbtaglen64v1 29.73 29.77 29.81 T:aeadaes192ocbtaglen96v1 29.76 29.79 29.91 T:ketjesrv1 31.14 31.20 31.46 T:ketjesrv2 34.35 34.39 34.42 T:aeadaes256ocbtaglen96v1 34.52 34.57 34.70 T:aeadaes256ocbtaglen64v1 56.88 57.00 57.19 T:ketjejrv1 60.06 60.13 60.29 T:proest128otrv1 63.20 63.63 63.79 T:aezv1 67.31 67.35 67.38 T:present80n6t4silcv3 67.92 67.97 68.02 T:twine80n6clocv1 75.25 75.62 75.76 T:deoxysneq128128v13 75.73 75.77 75.84 T:deoxyseq128128v13 98.92 99.19 99.45 T:ketjejrv2 115.74 115.83 116.01 T:deoxysneq256128v13 115.99 116.43 117.46 T:deoxyseq256128v13 125.86? 127.03? 144.09? T:led80n6t4silcv3 342.26 361.99 365.81 T:acorn128 2257.08 2258.19 2259.36 T:present80n6silcv1 2258.53 2259.90 2260.50 T:present80n6t4silcv2 4145.20 4149.61 4153.39 T:led80n6t4silcv2 4148.06 4155.93 4161.29 T:led80n6silcv1

Cycles/byte for 0+long decrypt 25% 50% 75% aead 0.17? 0.19? 0.22? T:tiaoxinv2 0.17? 0.19? 0.22? T:tiaoxinv1 0.25 0.26 0.26 aegis128l 0.29 0.29 0.30 T:aezv4 0.32 0.32 0.33 T:aezv3 0.32 0.33 0.33 T:aezv5 0.49 0.50 0.51 aegis256 0.56 0.56 0.57 T:aegis128 0.59 0.60 0.62 aes256gcmv1 0.60 0.61 0.62 T:morus1280128v2 0.61 0.61 0.62 T:morus1280256v1 0.61 0.62 0.62 T:morus1280256v2 0.61 0.62 0.63 T:morus1280128v1 0.59 0.62 0.64 T:aeadaes128ocbtaglen128v1 0.60 0.63 0.64 T:aes128gcmv1 0.39? 0.74? 0.78? T:aeadaes192ocbtaglen128v1 0.73 0.74 0.74 T:aes128otrcv3 0.89 0.90 0.90 T:aes128otrpv3 0.92 0.94 0.96 T:deoxysi128v141 0.93 0.95 0.97 T:deoxysii128v141 0.96 0.96 0.96 T:aes256otrcv3 0.97 0.97 0.97 T:colm0v1 0.98 0.99 1.00 T:morus640128v2 0.98 0.99 1.00 T:morus640128v1 0.67? 1.03? 1.35? T:aeadaes256ocbtaglen128v1 1.03 1.06 1.08 T:deoxysii256v141 1.02 1.06 1.08 T:deoxysi256v141 1.08 1.11 1.12 T:deoxysneq128128v1 1.16 1.17 1.19 T:aes256otrpv3 1.18 1.19 1.20 T:deoxyseq128128v1 1.26 1.27 1.29 T:deoxysneq256128v1 1.25 1.28 1.31 T:deoxyseq256128v1 1.95 2.01 2.04 T:oceankeyakv2 1.98 2.03 2.07 T:lunarkeyakv2 2.14 2.15 2.16 T:norx6441v2 2.14 2.15 2.16 T:norx6441v3 2.17 2.19 2.20 T:norx6444v3 2.33 2.38 2.42 T:seakeyakv2 2.59 2.61 2.62 T:norx6441v1 3.23 3.25 3.27 T:norx6461v3 3.26 3.27 3.28 T:norx6461v2 3.57 3.59 3.62 T:lakekeyakv2 3.64 3.66 3.69 T:norx6444v2 3.69 3.71 3.73 T:lakekeyakv1 3.86 3.88 3.89 T:norx6461v1 3.89 3.89 3.91 T:norx3241v3 3.91 3.91 3.94 T:norx3241v2 3.97 3.98 3.99 T:norx6444v1 4.50 4.50 4.50 T:aes128n12t8clocv2 4.50 4.50 4.50 T:aes128otrsv3 4.50 4.50 4.50 T:aes128n12t8clocv3 4.50 4.50 4.50 T:aes128n8t8silcv2 4.50 4.50 4.50 T:aes128n12t8silcv3 4.50 4.50 4.50 T:aes128n12t8silcv2 4.50 4.50 4.50 T:aes128n8t8clocv2 4.68 4.70 4.72 T:norx3241v1 5.39 5.45 5.53 T:ketjemajorv2 5.82 5.83 5.86 T:norx3261v2 5.84 5.86 5.88 T:norx3261v3 6.25 6.25 6.25 T:aes256otrsv3 6.59 6.62 6.65 T:riverkeyakv2 6.42 6.63 6.76 T:acorn128v3 6.64 6.68 6.99 T:ascon128av11 6.67 6.73 6.82 T:ascon96v1 7.14 7.17 7.19 ascon128av12 7.21 7.25 7.27 T:ketjeminorv2 7.46 7.47 7.50 T:norx3261v1 8.52 8.54 8.56 T:acorn128v2 9.21 9.22 9.22 T:aesjambuv1 9.80 9.84 10.10 T:ascon128v1 9.80 9.85 9.92 T:ascon128v11 10.45 10.48 10.50 ascon128v12 12.44 12.48 12.51 T:aes128otrsv1 12.46 12.50 12.54 T:aes128otrsv2 12.67 12.71 12.73 T:aes128n8clocv1 13.25 13.27 13.28 T:aes128n12clocv1 13.27 13.29 13.32 T:aes128n12silcv1 13.24 13.30 13.64 T:aes128n8silcv1 14.12 14.14 14.16 T:twine80n6t4clocv3 14.25 14.31 14.37 T:seakeyakv1 15.20 15.29 15.31 T:twine80n6t4clocv2 15.76 15.79 15.84 T:aes128otrpv2 15.76 15.80 15.96 T:aes128otrpv1 16.39 16.42 16.47 T:aes256otrsv1 16.38 16.43 16.50 T:aes256otrsv2 15.16? 16.82? 20.92? T:oceankeyakv1 19.74 19.76 19.80 T:aes256otrpv1 19.71 19.80 20.00 T:aes256otrpv2 24.66 24.73 24.81 T:proest256otrv1 25.10 25.15 25.18 T:aeadaes128ocbtaglen64v1 25.23 25.27 25.30 T:aeadaes128ocbtaglen96v1 27.53 27.57 27.60 T:colm127v1 29.45 29.57 30.23 T:riverkeyakv1 29.78 29.80 29.82 T:aeadaes192ocbtaglen64v1 29.79 29.82 29.83 T:aeadaes192ocbtaglen96v1 29.77 29.82 29.92 T:ketjesrv1 31.13 31.30 31.52 T:ketjesrv2 34.43 34.44 34.47 T:aeadaes256ocbtaglen96v1 34.54 34.60 34.73 T:aeadaes256ocbtaglen64v1 56.86 56.99 57.11 T:ketjejrv1 60.05 60.12 60.17 T:proest128otrv1 63.20 63.35 63.39 T:aezv1 67.30 67.36 67.40 T:present80n6t4silcv3 67.94 67.98 68.05 T:twine80n6clocv1 75.63 75.69 75.73 T:deoxysneq128128v13 75.69 75.78 75.82 T:deoxyseq128128v13 98.95 99.23 99.27 T:ketjejrv2 115.80 116.24 118.85 T:deoxysneq256128v13 116.26 116.43 117.38 T:deoxyseq256128v13 126.95 127.06 127.13 T:led80n6t4silcv3 342.25 362.08 365.85 T:acorn128 2258.77 2259.62 2260.56 T:present80n6t4silcv2 2258.77 2260.60 2261.93 T:present80n6silcv1 4146.15 4152.11 4156.56 T:led80n6t4silcv2 4151.15 4160.72 4165.36 T:led80n6silcv1

Cycles/byte for 0+long forgery 25% 50% 75% aead 0.17? 0.19? 0.21? T:tiaoxinv2 0.19 0.19 0.19 T:tiaoxinv1 0.25 0.26 0.26 aegis128l 0.29 0.30 0.30 T:aezv4 0.32 0.32 0.33 T:aezv3 0.32 0.33 0.33 T:aezv5 0.50 0.50 0.50 aegis256 0.56 0.56 0.57 T:aegis128 0.60 0.61 0.62 T:morus1280128v2 0.60 0.61 0.62 T:morus1280256v2 0.61 0.61 0.62 T:morus1280128v1 0.61 0.62 0.62 T:morus1280256v1 0.60 0.62 0.63 aes256gcmv1 0.61 0.62 0.63 T:aeadaes128ocbtaglen128v1 0.61 0.62 0.65 T:aes128gcmv1 0.73 0.74 0.75 T:aes128otrcv3 0.73? 0.75? 1.11? T:aeadaes192ocbtaglen128v1 0.90 0.90 0.90 T:aes128otrpv3 0.91 0.93 0.95 T:deoxysi128v141 0.93 0.96 0.97 T:deoxysii128v141 0.96 0.96 0.96 T:aes256otrcv3 0.97 0.97 0.97 T:colm0v1 0.99 0.99 1.00 T:morus640128v2 0.99 0.99 1.01 T:morus640128v1 1.00 1.01 1.03 T:aeadaes256ocbtaglen128v1 1.05 1.07 1.09 T:deoxysi256v141 1.05 1.07 1.08 T:deoxysii256v141 1.10 1.10 1.11 T:deoxysneq128128v1 1.16 1.17 1.19 T:aes256otrpv3 1.18 1.18 1.19 T:deoxyseq128128v1 1.25 1.28 1.31 T:deoxysneq256128v1 1.27 1.29 1.31 T:deoxyseq256128v1 1.97 1.99 2.03 T:lunarkeyakv2 1.96 1.99 2.02 T:oceankeyakv2 2.14 2.15 2.16 T:norx6441v3 2.15 2.16 2.17 T:norx6441v2 2.18 2.19 2.21 T:norx6444v3 2.37 2.38 2.41 T:seakeyakv2 2.59 2.60 2.61 T:norx6441v1 3.22 3.23 3.25 T:norx6461v3 3.26 3.26 3.28 T:norx6461v2 3.55 3.58 3.60 T:lakekeyakv2 3.64 3.67 3.70 T:norx6444v2 3.68 3.71 3.73 T:lakekeyakv1 3.85 3.86 3.86 T:norx6461v1 3.89 3.89 3.90 T:norx3241v3 3.90 3.91 3.93 T:norx3241v2 3.97 3.98 4.00 T:norx6444v1 4.49 4.50 4.50 T:aes128n12t8clocv2 4.48 4.50 4.50 T:aes128n12t8clocv3 4.50 4.50 4.50 T:aes128n12t8silcv3 4.50 4.50 4.50 T:aes128n8t8silcv2 4.50 4.50 4.50 T:aes128n12t8silcv2 4.50 4.50 4.50 T:aes128otrsv3 4.50 4.50 4.50 T:aes128n8t8clocv2 4.69 4.71 4.72 T:norx3241v1 5.41 5.48 5.54 T:ketjemajorv2 5.81 5.83 5.85 T:norx3261v2 5.83 5.85 5.87 T:norx3261v3 6.25 6.25 6.25 T:aes256otrsv3 6.57 6.60 6.63 T:riverkeyakv2 6.41 6.63 6.78 T:acorn128v3 6.65 6.68 6.80 T:ascon128av11 6.67 6.69 6.80 T:ascon96v1 7.14 7.16 7.18 ascon128av12 7.22 7.25 7.28 T:ketjeminorv2 7.47 7.47 7.48 T:norx3261v1 8.51 8.56 8.58 T:acorn128v2 9.21 9.21 9.22 T:aesjambuv1 9.80 9.82 9.88 T:ascon128v11 9.80 10.11 10.14 T:ascon128v1 10.45 10.47 10.50 ascon128v12 12.47 12.49 12.51 T:aes128otrsv1 12.50 12.51 12.54 T:aes128otrsv2 12.68 12.70 12.72 T:aes128n8clocv1 13.25 13.26 13.28 T:aes128n12clocv1 13.26 13.30 13.68 T:aes128n8silcv1 13.28 13.31 13.34 T:aes128n12silcv1 14.14 14.16 14.20 T:twine80n6t4clocv3 14.25 14.32 14.38 T:seakeyakv1 15.18 15.29 15.32 T:twine80n6t4clocv2 15.77 15.80 15.83 T:aes128otrpv2 15.79 15.81 15.94 T:aes128otrpv1 16.40 16.42 16.45 T:aes256otrsv2 16.40 16.42 16.48 T:aes256otrsv1 15.18? 16.83? 20.93? T:oceankeyakv1 19.73 19.76 19.79 T:aes256otrpv1 19.74 19.78 20.07 T:aes256otrpv2 24.67 24.74 24.84 T:proest256otrv1 25.11 25.15 25.17 T:aeadaes128ocbtaglen64v1 25.22 25.24 25.28 T:aeadaes128ocbtaglen96v1 27.54 27.57 27.62 T:colm127v1 29.35 29.63 30.27 T:riverkeyakv1 29.76 29.79 29.80 T:aeadaes192ocbtaglen64v1 29.79 29.81 29.86 T:aeadaes192ocbtaglen96v1 29.81 29.85 29.95 T:ketjesrv1 31.20 31.26 31.74 T:ketjesrv2 34.42 34.44 34.47 T:aeadaes256ocbtaglen96v1 34.54 34.56 34.71 T:aeadaes256ocbtaglen64v1 56.92 57.02 57.13 T:ketjejrv1 60.08 60.12 60.16 T:proest128otrv1 63.21 63.35 63.52 T:aezv1 67.33 67.36 67.38 T:present80n6t4silcv3 67.92 67.98 68.03 T:twine80n6clocv1 75.25 75.70 75.80 T:deoxysneq128128v13 75.68 75.80 75.88 T:deoxyseq128128v13 98.95 99.19 99.30 T:ketjejrv2 115.98 116.25 118.84 T:deoxysneq256128v13 116.36 116.46 117.23 T:deoxyseq256128v13 126.96 127.06 127.12 T:led80n6t4silcv3 342.26 362.06 365.79 T:acorn128 2259.17 2259.82 2260.84 T:present80n6t4silcv2 2258.38 2260.59 2262.44 T:present80n6silcv1 4152.30 4156.01 4159.18 T:led80n6t4silcv2 4150.60 4157.07 4168.32 T:led80n6silcv1

Cycles/byte for 1536+1536 encrypt 25% 50% 75% aead 0.31 0.31 0.31 T:tiaoxinv2 0.31 0.31 0.32 T:tiaoxinv1 0.35 0.35 0.36 aegis128l 0.60 0.61 0.62 aegis256 0.61 0.62 0.63 T:aezv4 0.63 0.63 0.63 T:aegis128 0.64 0.64 0.65 T:aezv3 0.64 0.65 0.65 T:aezv5 0.79 0.80 0.80 T:morus1280256v1 0.80 0.81 0.81 T:morus1280128v1 0.81 0.81 0.82 T:morus1280256v2 0.81 0.82 0.82 T:morus1280128v2 0.83 0.84 0.88 T:aeadaes128ocbtaglen128v1 0.97? 0.98? 1.10? T:aeadaes192ocbtaglen128v1 1.00 1.01 1.01 T:aes128otrpv3 1.04 1.05 1.06 T:aes128otrcv3 1.14 1.16 1.17 T:deoxysi128v141 1.17 1.18 1.18 T:morus640128v1 1.18 1.18 1.18 T:morus640128v2 1.25? 1.27? 1.47? T:aeadaes256ocbtaglen128v1 1.32 1.33 1.34 T:deoxysneq128128v1 1.32 1.33 1.34 T:aes256otrpv3 1.35 1.36 1.38 T:deoxysi256v141 1.37 1.38 1.39 T:aes128gcmv1 1.40 1.40 1.41 T:aes256otrcv3 1.43 1.44 1.44 T:deoxysneq256128v1 1.57 1.58 1.58 aes256gcmv1 1.68 1.69 1.73 T:deoxysii128v141 1.88 1.89 1.92 T:colm0v1 1.89 1.91 1.92 T:deoxysii256v141 2.00 2.01 2.02 T:deoxyseq128128v1 2.18 2.19 2.21 T:deoxyseq256128v1 2.33 2.35 2.36 T:norx6444v3 2.52 2.53 2.55 T:norx6441v2 2.53 2.53 2.55 T:norx6441v3 2.77 2.77 2.77 T:aes128otrsv3 2.91 2.92 2.93 T:norx6441v1 3.61 3.62 3.63 T:seakeyakv2 3.79 3.79 3.81 T:norx6461v3 3.80 3.80 3.81 T:norx6461v2 3.82 3.82 3.82 T:aes256otrsv3 4.19 4.21 4.22 T:norx3241v2 4.20 4.22 4.25 T:norx3241v3 4.35 4.37 4.38 T:lakekeyakv2 4.38 4.39 4.40 T:norx6461v1 4.61 4.62 4.64 T:lakekeyakv1 4.63 4.63 4.63 T:aes128n8t8clocv2 4.63 4.63 4.64 T:aes128n12t8clocv3 4.63 4.63 4.64 T:aes128n12t8clocv2 4.69 4.69 4.69 T:aes128n12t8silcv3 4.69 4.69 4.69 T:aes128n12t8silcv2 4.69 4.69 4.69 T:aes128n8t8silcv2 4.88 4.88 4.90 T:oceankeyakv2 4.96 4.98 4.98 T:norx3241v1 5.27 5.30 5.32 T:norx6444v2 5.66 5.66 5.67 T:norx6444v1 6.33 6.36 6.36 T:norx3261v3 6.35 6.37 6.38 T:norx3261v2 6.95 6.97 7.00 T:ascon96v1 6.97 6.99 7.05 T:ascon128av11 7.25 7.27 7.29 T:acorn128v3 7.34 7.35 7.36 ascon128av12 7.41 7.43 7.45 T:riverkeyakv2 7.90 7.90 7.91 T:norx3261v1 8.23 8.24 8.24 T:acorn128v2 8.37 8.38 8.42 T:lunarkeyakv2 8.74 8.76 8.78 T:ketjemajorv2 9.34 9.35 9.35 T:aesjambuv1 9.49 9.52 9.54 T:ketjeminorv2 10.20 10.28 10.31 T:ascon128v11 10.24 10.33 10.36 T:ascon128v1 10.76 10.77 10.80 ascon128v12 14.61 14.62 14.64 T:aes128otrsv1 14.62 14.63 14.65 T:aes128otrsv2 14.68 14.69 14.70 T:twine80n6t4clocv3 15.73 15.77 15.78 T:twine80n6t4clocv2 16.26 16.28 16.30 T:aes128otrpv2 16.27 16.29 16.38 T:aes128otrpv1 17.62 17.65 17.67 T:seakeyakv1 18.64 18.68 18.70 T:aes256otrsv1 18.70 18.73 18.76 T:aes256otrsv2 18.98 19.01 19.04 T:aes128n8clocv1 19.43 19.46 19.48 T:aes128n12clocv1 20.34 20.35 20.40 T:aes256otrpv2 20.38 20.39 20.42 T:aes256otrpv1 20.47 20.48 20.99 T:aes128n8silcv1 20.46 20.50 21.71 T:aes128n12silcv1 26.01? 26.11? 29.67? T:oceankeyakv1 26.59 26.61 26.67 T:aeadaes128ocbtaglen96v1 26.55 26.63 26.71 T:aeadaes128ocbtaglen64v1 26.70 26.73 26.76 T:proest256otrv1 31.26 31.28 31.29 T:aeadaes192ocbtaglen96v1 31.28 31.31 31.31 T:aeadaes192ocbtaglen64v1 32.60 32.69 33.16 T:riverkeyakv1 33.72 33.75 33.91 T:ketjesrv1 35.44 35.48 35.66 T:ketjesrv2 36.04 36.08 36.17 T:aeadaes256ocbtaglen96v1 36.09 36.11 36.16 T:aeadaes256ocbtaglen64v1 46.38 46.41 46.42 T:colm127v1 61.18 61.25 61.35 T:ketjejrv1 62.04? 62.07? 77.01? T:proest128otrv1 68.62 68.63 68.64 T:present80n6t4silcv3 75.80 75.91 76.16 T:deoxysneq128128v13 102.52 102.61 102.66 T:twine80n6clocv1 104.75 108.14 109.36 T:ketjejrv2 114.83 115.29 115.37 T:deoxyseq128128v13 116.48 116.53 116.57 T:deoxysneq256128v13 123.26 123.52 123.71 T:aezv1 128.68 128.73 136.70 T:led80n6t4silcv3 176.86 177.15 178.33 T:deoxyseq256128v13 391.97 408.89 408.98 T:acorn128 3404.34 3405.96 3410.37 T:present80n6silcv1 3408.72 3410.17 3414.42 T:present80n6t4silcv2 6244.31 6247.41 6251.76 T:led80n6t4silcv2 6250.55 6255.35 6259.28 T:led80n6silcv1

Cycles/byte for 1536+1536 decrypt 25% 50% 75% aead 0.36 0.36 0.36 aegis128l 0.38 0.38 0.38 T:tiaoxinv1 0.38 0.38 0.39 T:tiaoxinv2 0.61 0.61 0.61 T:aezv4 0.63 0.64 0.64 T:aezv3 0.64 0.64 0.64 T:aegis128 0.64 0.64 0.65 T:aezv5 0.64 0.64 0.65 aegis256 0.82 0.82 0.83 T:morus1280256v1 0.82 0.82 0.83 T:morus1280128v1 0.83 0.84 0.84 T:morus1280256v2 0.83 0.84 0.84 T:morus1280128v2 0.86 0.86 0.88 T:aeadaes128ocbtaglen128v1 1.00? 1.00? 1.21? T:aeadaes192ocbtaglen128v1 1.03 1.03 1.03 T:aes128otrpv3 1.08 1.09 1.09 T:aes128otrcv3 1.18 1.18 1.19 T:morus640128v1 1.19 1.19 1.20 T:morus640128v2 1.29? 1.32? 1.49? T:aeadaes256ocbtaglen128v1 1.33 1.34 1.35 T:aes256otrpv3 1.37 1.37 1.40 T:deoxysi128v141 1.39 1.41 1.42 T:aes128gcmv1 1.43 1.43 1.44 T:aes256otrcv3 1.52 1.53 1.54 T:deoxysi256v141 1.59 1.59 1.60 T:deoxysneq128128v1 1.59 1.61 1.62 aes256gcmv1 1.72 1.73 1.74 T:deoxysneq256128v1 1.70 1.73 1.75 T:deoxysii128v141 1.89 1.90 1.91 T:colm0v1 1.94 1.94 1.96 T:deoxysii256v141 2.36 2.36 2.37 T:norx6444v3 2.49 2.49 2.51 T:norx6441v3 2.49 2.50 2.50 T:norx6441v2 2.54 2.55 2.55 T:deoxyseq128128v1 2.67 2.68 2.70 T:deoxyseq256128v1 2.80 2.80 2.80 T:aes128otrsv3 2.90 2.91 2.93 T:norx6441v1 3.65 3.66 3.68 T:seakeyakv2 3.76 3.76 3.78 T:norx6461v2 3.76 3.76 3.77 T:norx6461v3 3.85 3.85 3.85 T:aes256otrsv3 4.18 4.19 4.19 T:norx3241v3 4.19 4.19 4.20 T:norx3241v2 4.34 4.35 4.37 T:norx6461v1 4.39 4.40 4.42 T:lakekeyakv2 4.60 4.60 4.60 T:aes128n12t8clocv2 4.60 4.60 4.61 T:aes128n12t8clocv3 4.60 4.61 4.62 T:aes128n8t8clocv2 4.66 4.66 4.66 T:aes128n12t8silcv2 4.66 4.66 4.66 T:aes128n12t8silcv3 4.66 4.66 4.67 T:aes128n8t8silcv2 4.64 4.66 4.68 T:lakekeyakv1 4.92 4.93 4.93 T:norx3241v1 4.93 4.94 4.97 T:oceankeyakv2 5.27 5.29 5.30 T:norx6444v2 5.65 5.66 5.80 T:norx6444v1 6.32 6.33 6.34 T:norx3261v3 6.34 6.34 6.35 T:norx3261v2 7.08 7.09 7.14 T:ascon128av11 7.07 7.10 7.14 T:ascon96v1 7.34 7.36 7.37 ascon128av12 7.59 7.60 7.64 T:riverkeyakv2 7.71 7.74 7.83 T:acorn128v3 7.85 7.86 7.87 T:norx3261v1 8.21 8.22 8.26 T:acorn128v2 8.42 8.44 8.52 T:lunarkeyakv2 9.16 9.23 9.27 T:ketjemajorv2 9.36 9.38 9.39 T:ketjeminorv2 9.49 9.49 9.50 T:aesjambuv1 10.18 10.24 10.31 T:ascon128v1 10.29 10.32 10.42 T:ascon128v11 10.67 10.68 10.69 ascon128v12 14.62 14.63 14.65 T:aes128otrsv1 14.62 14.64 14.65 T:aes128otrsv2 14.78 14.78 14.79 T:twine80n6t4clocv3 15.70 15.73 15.76 T:twine80n6t4clocv2 16.29 16.30 16.37 T:aes128otrpv1 16.29 16.30 16.34 T:aes128otrpv2 17.70 17.71 17.76 T:seakeyakv1 18.68 18.73 18.76 T:aes256otrsv1 18.71 18.73 18.75 T:aes256otrsv2 19.01 19.04 19.07 T:aes128n12clocv1 19.43 19.47 19.50 T:aes128n8clocv1 20.34 20.35 20.39 T:aes256otrpv1 20.38 20.42 20.54 T:aes256otrpv2 20.52 20.57 21.74 T:aes128n12silcv1 20.53 20.57 21.04 T:aes128n8silcv1 26.03? 26.11? 29.69? T:oceankeyakv1 26.61 26.66 26.71 T:proest256otrv1 31.06 31.09 31.21 T:aeadaes128ocbtaglen64v1 31.08 31.11 31.15 T:aeadaes128ocbtaglen96v1 32.92 32.99 33.43 T:riverkeyakv1 34.09 34.12 34.26 T:ketjesrv1 34.90 34.96 35.11 T:ketjesrv2 36.68 36.69 36.72 T:aeadaes192ocbtaglen64v1 36.68 36.69 36.70 T:aeadaes192ocbtaglen96v1 42.37 42.39 42.49 T:aeadaes256ocbtaglen96v1 42.42 42.45 42.50 T:aeadaes256ocbtaglen64v1 53.73 53.78 53.87 T:colm127v1 61.67 61.74 61.81 T:ketjejrv1 62.62 62.68 62.78 T:proest128otrv1 68.72 68.74 68.76 T:present80n6t4silcv3 90.86 91.01 91.05 T:deoxysneq128128v13 102.64 102.67 102.75 T:twine80n6clocv1 104.67 105.10 105.58 T:ketjejrv2 114.87 115.26 115.32 T:deoxyseq128128v13 123.48 123.65 123.83 T:aezv1 128.67 128.70 128.78 T:led80n6t4silcv3 133.68 133.98 136.03 T:deoxysneq256128v13 177.19 177.34 178.59 T:deoxyseq256128v13 388.91 404.97 405.17 T:acorn128 3404.44 3407.79 3409.48 T:present80n6t4silcv2 3404.93 3408.10 3408.52 T:present80n6silcv1 6249.37 6253.01 6254.92 T:led80n6t4silcv2 6256.96 6261.10 6264.23 T:led80n6silcv1

Cycles/byte for 1536+1536 forgery 25% 50% 75% aead 0.36 0.36 0.36 aegis128l 0.38 0.38 0.38 T:tiaoxinv1 0.38 0.38 0.38 T:tiaoxinv2 0.38 0.38 0.39 T:aezv4 0.40 0.40 0.40 T:aezv5 0.40 0.41 0.41 T:aezv3 0.64 0.64 0.64 T:aegis128 0.64 0.65 0.65 aegis256 0.82 0.82 0.82 T:morus1280128v1 0.82 0.82 0.82 T:morus1280256v1 0.83 0.83 0.84 T:morus1280256v2 0.83 0.84 0.84 T:morus1280128v2 0.86 0.86 0.87 T:aeadaes128ocbtaglen128v1 0.99 1.00 1.01 T:aeadaes192ocbtaglen128v1 1.02 1.02 1.03 T:aes128otrpv3 1.08 1.09 1.09 T:aes128otrcv3 1.18 1.19 1.19 T:morus640128v1 1.19 1.19 1.20 T:morus640128v2 1.28 1.29 1.31 T:aeadaes256ocbtaglen128v1 1.33 1.33 1.34 T:aes256otrpv3 1.37 1.37 1.40 T:deoxysi128v141 1.39 1.40 1.41 T:aes128gcmv1 1.43 1.43 1.44 T:aes256otrcv3 1.52 1.53 1.54 T:deoxysi256v141 1.57 1.58 1.59 T:deoxysneq128128v1 1.59 1.61 1.62 aes256gcmv1 1.71 1.71 1.72 T:deoxysneq256128v1 1.70 1.72 1.74 T:deoxysii128v141 1.89 1.90 1.90 T:colm0v1 1.94 1.94 1.95 T:deoxysii256v141 2.36 2.36 2.37 T:norx6444v3 2.49 2.49 2.50 T:norx6441v3 2.49 2.50 2.50 T:norx6441v2 2.54 2.54 2.55 T:deoxyseq128128v1 2.66 2.67 2.68 T:deoxyseq256128v1 2.80 2.80 2.80 T:aes128otrsv3 2.90 2.91 2.92 T:norx6441v1 3.66 3.67 3.68 T:seakeyakv2 3.75 3.76 3.76 T:norx6461v2 3.76 3.76 3.77 T:norx6461v3 3.85 3.85 3.85 T:aes256otrsv3 4.17 4.18 4.19 T:norx3241v3 4.19 4.19 4.20 T:norx3241v2 4.35 4.35 4.36 T:norx6461v1 4.40 4.41 4.42 T:lakekeyakv2 4.60 4.61 4.61 T:aes128n12t8clocv2 4.60 4.61 4.61 T:aes128n12t8clocv3 4.60 4.61 4.61 T:aes128n8t8clocv2 4.65 4.65 4.65 T:aes128n8t8silcv2 4.65 4.65 4.66 T:aes128n12t8silcv2 4.65 4.65 4.65 T:aes128n12t8silcv3 4.66 4.68 4.70 T:lakekeyakv1 4.91 4.92 4.93 T:norx3241v1 4.93 4.94 4.96 T:oceankeyakv2 5.29 5.30 5.32 T:norx6444v2 5.66 5.67 5.81 T:norx6444v1 6.31 6.33 6.34 T:norx3261v2 6.32 6.33 6.34 T:norx3261v3 7.06 7.08 7.13 T:ascon96v1 7.07 7.09 7.14 T:ascon128av11 7.34 7.34 7.36 ascon128av12 7.59 7.60 7.61 T:riverkeyakv2 7.71 7.73 7.81 T:acorn128v3 7.85 7.86 7.86 T:norx3261v1 8.20 8.23 8.25 T:acorn128v2 8.44 8.46 8.48 T:lunarkeyakv2 9.18 9.23 9.31 T:ketjemajorv2 9.38 9.39 9.41 T:ketjeminorv2 9.49 9.49 9.50 T:aesjambuv1 10.23 10.27 10.29 T:ascon128v1 10.27 10.31 10.44 T:ascon128v11 10.65 10.67 10.69 ascon128v12 14.64 14.66 14.67 T:aes128otrsv1 14.64 14.66 14.68 T:aes128otrsv2 14.76 14.77 14.80 T:twine80n6t4clocv3 15.70 15.73 15.76 T:twine80n6t4clocv2 16.29 16.31 16.41 T:aes128otrpv1 16.32 16.33 16.35 T:aes128otrpv2 17.72 17.74 17.76 T:seakeyakv1 18.70 18.71 18.73 T:aes256otrsv1 18.71 18.74 18.76 T:aes256otrsv2 18.99 19.01 19.03 T:aes128n12clocv1 19.44 19.45 19.49 T:aes128n8clocv1 20.37 20.38 20.40 T:aes256otrpv1 20.41 20.44 20.56 T:aes256otrpv2 20.53 20.55 21.77 T:aes128n12silcv1 20.53 20.56 21.08 T:aes128n8silcv1 26.05? 26.14? 29.71? T:oceankeyakv1 26.60 26.63 26.68 T:proest256otrv1 31.06 31.09 31.22 T:aeadaes128ocbtaglen64v1 31.08 31.09 31.14 T:aeadaes128ocbtaglen96v1 32.87 32.92 33.43 T:riverkeyakv1 34.10 34.12 34.28 T:ketjesrv1 34.93 34.98 35.06 T:ketjesrv2 36.67 36.68 36.71 T:aeadaes192ocbtaglen64v1 36.67 36.70 36.71 T:aeadaes192ocbtaglen96v1 42.37 42.42 42.50 T:aeadaes256ocbtaglen96v1 42.40 42.43 42.49 T:aeadaes256ocbtaglen64v1 53.68 53.74 53.80 T:colm127v1 61.54 61.61 61.70 T:ketjejrv1 62.57 62.62 62.66 T:proest128otrv1 68.71 68.72 68.73 T:present80n6t4silcv3 91.00 91.06 91.11 T:deoxysneq128128v13 102.59 102.64 102.72 T:twine80n6clocv1 104.76 105.02 105.53 T:ketjejrv2 114.94 115.29 115.32 T:deoxyseq128128v13 123.27 123.43 123.67 T:aezv1 128.68 128.71 128.77 T:led80n6t4silcv3 133.66 133.81 136.07 T:deoxysneq256128v13 177.25 177.35 178.56 T:deoxyseq256128v13 388.81 405.04 405.20 T:acorn128 3404.71 3408.16 3409.53 T:present80n6t4silcv2 3404.60 3408.18 3408.68 T:present80n6silcv1 6247.81 6252.95 6255.11 T:led80n6t4silcv2 6253.52 6255.34 6258.99 T:led80n6silcv1

Cycles/byte for 64+64 encrypt 25% 50% 75% aead 2.13 2.16 2.16 T:aegis128 2.20 2.23 2.34 aegis128l 2.43 2.47 2.57 T:tiaoxinv1 2.43 2.48 2.70 T:tiaoxinv2 2.77 2.79 2.86 aegis256 2.93 2.95 3.12 T:aezv5 3.15? 3.23? 3.52? T:aezv4 3.34 3.34 3.48 T:aezv3 4.39 4.41 4.61 T:morus640128v1 4.51 4.59 4.70 T:morus1280256v1 4.58 4.62 4.77 T:morus1280128v1 4.66 4.71 4.77 T:morus640128v2 4.77 4.86 4.94 T:morus1280256v2 4.84 4.93 4.98 T:morus1280128v2 5.00 5.02 5.03 T:aes128otrpv3 5.12? 5.26? 6.70? T:aeadaes128ocbtaglen128v1 5.70 5.74 5.77 T:aes128otrsv3 5.55? 5.91? 11.47? T:aeadaes192ocbtaglen128v1 6.09 6.15 6.37 T:deoxysneq128128v1 6.45 6.47 6.67 T:aes256otrpv3 6.39? 6.51? 11.81? T:aeadaes256ocbtaglen128v1 6.38 6.54 6.59 T:colm0v1 6.46 6.55 6.59 T:deoxysneq256128v1 6.82 6.88 7.00 T:aes128otrcv3 6.86 6.88 6.91 T:aes128n8t8clocv2 6.89 6.96 7.01 T:aes128n12t8clocv3 6.90 7.01 7.05 T:aes128n12t8clocv2 7.09 7.15 7.33 T:deoxysi128v141 7.27 7.28 7.33 T:aes128gcmv1 7.37 7.40 7.45 T:deoxysi256v141 7.70 7.71 7.73 T:aes256otrsv3 7.92 7.98 8.05 aes256gcmv1 8.24 8.26 8.27 T:aes128n12t8silcv2 8.24 8.27 8.28 T:aes128n12t8silcv3 8.25 8.27 8.28 T:aes128n8t8silcv2 8.63 8.69 8.74 T:norx6441v1 8.77 8.81 8.89 T:deoxyseq128128v1 8.83 8.95 8.98 T:norx6441v2 8.95 9.01 9.06 T:norx6441v3 8.96 9.03 9.09 T:deoxysii128v141 9.08 9.15 9.29 T:aes256otrcv3 10.57 10.63 10.79 T:deoxyseq256128v1 10.59 10.63 10.77 T:norx3241v1 10.67 10.80 11.07 T:ascon96v1 10.84 10.89 11.06 T:norx3241v3 10.85 10.91 11.02 T:norx3241v2 10.87 10.91 10.99 T:deoxysii256v141 10.97 11.11 11.34 T:ascon128av11 11.30 11.36 11.66 ascon128av12 12.72 12.75 12.91 T:norx6461v1 13.02 13.08 13.15 T:norx6461v2 13.05 13.10 13.17 T:norx6461v3 13.21 13.24 13.28 T:aesjambuv1 13.75 13.98 14.16 T:ascon128v1 13.91 14.01 14.21 T:ascon128v11 14.38 14.42 14.63 ascon128v12 15.66 15.72 15.92 T:norx6444v3 15.62 15.79 16.08 T:lakekeyakv1 15.88 15.98 16.11 T:norx3261v3 15.96 16.00 16.09 T:norx3261v2 16.75 16.81 16.84 T:norx3261v1 18.22 18.49 18.68 T:riverkeyakv2 19.12 19.20 19.65 T:lakekeyakv2 21.97 22.03 22.12 T:twine80n6t4clocv3 22.36 22.38 22.54 T:twine80n6t4clocv2 24.39 24.51 24.58 T:aes128n8clocv1 24.74 24.80 25.08 T:aes128n12clocv1 24.88 24.94 25.12 T:aes128otrsv1 24.93 25.00 25.12 T:aes128otrsv2 26.45 26.59 26.76 T:aes128otrpv2 26.65 26.74 26.95 T:aes128otrpv1 28.54 29.20 30.06 T:aes128n12silcv1 28.79 29.25 29.86 T:aes128n8silcv1 30.12 30.15 30.23 T:acorn128v2 30.58 30.69 32.03 T:acorn128v3 31.61 31.75 31.85 T:aes256otrsv2 31.70 31.82 32.09 T:aes256otrsv1 33.37 33.55 33.66 T:aes256otrpv1 33.42 33.56 33.77 T:aes256otrpv2 33.94 34.19 34.52 T:seakeyakv2 35.53 35.65 35.89 T:ketjeminorv2 37.36 37.48 37.55 T:norx6444v2 40.30 40.35 40.41 T:norx6444v1 42.45 42.72 43.23 T:aeadaes128ocbtaglen64v1 42.57 42.82 42.96 T:aeadaes128ocbtaglen96v1 48.99 49.12 49.51 T:aeadaes192ocbtaglen64v1 48.98 49.23 49.38 T:aeadaes192ocbtaglen96v1 52.80 52.94 53.11 T:ketjesrv1 54.16 54.27 55.15 T:oceankeyakv2 56.84 56.95 57.96 T:aeadaes256ocbtaglen96v1 56.90 57.11 57.46 T:aeadaes256ocbtaglen64v1 58.30 58.59 59.71 T:riverkeyakv1 59.83 60.23 60.35 T:ketjesrv2 63.39 63.54 63.62 T:ketjemajorv2 65.98 66.16 66.49 T:colm127v1 76.48 76.93 77.20 T:proest256otrv1 81.13 81.44 82.36 T:ketjejrv1 85.53 85.63 85.70 T:present80n6t4silcv3 85.95 86.11 86.41 T:deoxysneq128128v13 113.74 114.23 114.86 T:twine80n6clocv1 121.05? 121.65? 136.05? T:proest128otrv1 129.71 129.96 130.57 T:aezv1 131.41 131.59 131.73 T:deoxysneq256128v13 133.43 133.66 133.98 T:seakeyakv1 136.70 136.84 138.22 T:lunarkeyakv2 137.65 138.08 138.77 T:ketjejrv2 143.53 143.82 144.28 T:deoxyseq128128v13 153.01 153.51 161.88 T:led80n6t4silcv3 220.14 220.85 221.91 T:deoxyseq256128v13 284.98? 286.17? 322.01? T:oceankeyakv1 1422.02 1475.66 1477.33 T:acorn128 3814.66 3817.59 3819.41 T:present80n6silcv1 3819.18 3820.15 3821.66 T:present80n6t4silcv2 6919.98 6942.40 6954.00 T:led80n6t4silcv2 6944.69 6968.62 6996.60 T:led80n6silcv1

Cycles/byte for 64+64 decrypt 25% 50% 75% aead 2.23 2.28 2.34 aegis128l 2.27 2.30 2.33 T:aegis128 2.46? 2.48? 2.78? T:tiaoxinv1 2.47? 2.57? 2.92? T:tiaoxinv2 2.77 2.83 2.88 aegis256 2.96? 3.09? 3.30? T:aezv5 3.16? 3.19? 4.12? T:aezv4 3.29 3.30 3.48 T:aezv3 4.56 4.62 4.73 T:morus640128v1 4.88 4.94 5.03 T:morus640128v2 4.90 4.94 5.03 T:morus1280256v1 4.88 4.95 5.01 T:morus1280128v1 5.13 5.14 5.15 T:aes128otrpv3 5.14 5.23 5.51 T:morus1280256v2 5.23 5.26 5.34 T:morus1280128v2 5.71? 5.78? 8.02? T:aeadaes128ocbtaglen128v1 5.95 5.98 6.00 T:aes128otrsv3 6.30? 6.44? 8.52? T:aeadaes192ocbtaglen128v1 6.55 6.81 6.93 T:aes256otrpv3 6.91 6.94 6.97 T:aes128n12t8clocv3 6.94 6.95 6.98 T:aes128n8t8clocv2 6.93 6.96 7.00 T:aes128n12t8clocv2 6.84? 7.02? 12.04? T:aeadaes256ocbtaglen128v1 7.19 7.19 7.20 T:aes128gcmv1 7.06 7.20 7.36 T:aes128otrcv3 7.29 7.52 7.70 T:colm0v1 7.89 7.91 7.95 aes256gcmv1 7.99 8.01 8.05 T:aes256otrsv3 8.26 8.27 8.30 T:aes128n12t8silcv2 8.26 8.27 8.30 T:aes128n12t8silcv3 8.27 8.27 8.28 T:aes128n8t8silcv2 8.80 8.84 8.88 T:norx6441v1 8.90 8.92 9.02 T:norx6441v2 8.91 8.95 9.04 T:norx6441v3 9.35 9.37 9.46 T:deoxysneq256128v1 9.41 9.42 9.61 T:aes256otrcv3 9.42 9.50 9.55 T:deoxysneq128128v1 9.64 9.67 9.75 T:deoxysii128v141 10.04 10.06 10.11 T:deoxysi128v141 10.45 10.53 10.59 T:deoxysi256v141 10.82 10.86 10.88 T:norx3241v1 10.84 10.98 11.08 T:ascon96v1 10.98 11.02 11.09 T:norx3241v2 10.98 11.05 11.10 T:norx3241v3 11.20 11.32 11.52 T:ascon128av11 11.41 11.47 11.80 ascon128av12 11.81 11.89 11.95 T:deoxysii256v141 12.70 12.75 12.82 T:deoxyseq128128v1 12.82 12.88 12.98 T:norx6461v1 12.88 12.93 12.98 T:norx6461v2 13.09 13.12 13.15 T:norx6461v3 13.09 13.17 13.26 T:deoxyseq256128v1 13.37 13.39 13.41 T:aesjambuv1 13.81 13.89 14.23 T:ascon128v1 14.05 14.12 14.38 T:ascon128v11 14.31 14.34 14.59 ascon128v12 15.62 15.68 15.73 T:norx6444v3 15.62 15.95 16.36 T:lakekeyakv1 16.05 16.14 16.22 T:norx3261v3 16.11 16.16 16.25 T:norx3261v2 16.87 16.96 16.98 T:norx3261v1 18.53 18.62 19.23 T:riverkeyakv2 19.16 19.37 19.67 T:lakekeyakv2 22.12 22.19 22.28 T:twine80n6t4clocv3 22.41 22.45 22.81 T:twine80n6t4clocv2 24.61 24.67 24.95 T:aes128n12clocv1 24.88 25.17 25.30 T:aes128n8clocv1 25.07 25.20 25.30 T:aes128otrsv1 25.03 25.31 25.41 T:aes128otrsv2 26.20 26.66 26.84 T:aes128otrpv2 26.76 26.83 27.20 T:aes128otrpv1 28.84 29.12 30.33 T:aes128n12silcv1 28.98 29.42 30.20 T:aes128n8silcv1 30.26 30.31 30.42 T:acorn128v2 30.77 31.00 33.09 T:acorn128v3 31.66 31.79 32.05 T:aes256otrsv1 31.73 31.81 31.96 T:aes256otrsv2 33.50 33.70 33.94 T:aes256otrpv1 33.57 33.80 34.01 T:aes256otrpv2 34.05 34.30 34.68 T:seakeyakv2 35.16 35.42 35.59 T:ketjeminorv2 37.78 37.98 38.08 T:norx6444v2 40.59 40.84 42.43 T:norx6444v1 50.92 51.05 51.48 T:aeadaes128ocbtaglen64v1 50.97 51.09 51.39 T:aeadaes128ocbtaglen96v1 53.27 53.64 53.95 T:ketjesrv1 54.49 54.80 55.09 T:oceankeyakv2 58.53 58.69 58.84 T:aeadaes192ocbtaglen96v1 58.56 58.73 58.89 T:aeadaes192ocbtaglen64v1 58.71 59.44 59.87 T:riverkeyakv1 59.78 60.00 60.88 T:ketjesrv2 62.63 63.27 63.78 T:ketjemajorv2 68.15 68.29 68.42 T:aeadaes256ocbtaglen64v1 68.18 68.40 68.72 T:aeadaes256ocbtaglen96v1 74.20 74.26 74.57 T:colm127v1 77.68 78.16 78.48 T:proest256otrv1 81.77 82.41 83.22 T:ketjejrv1 85.53 85.60 86.05 T:present80n6t4silcv3 100.72 100.93 101.15 T:deoxysneq128128v13 114.25 114.55 115.23 T:twine80n6clocv1 122.42 124.62 125.32 T:proest128otrv1 132.89 133.12 133.38 T:aezv1 133.44 133.54 133.78 T:seakeyakv1 137.27 137.52 137.85 T:lunarkeyakv2 139.09 139.31 139.79 T:ketjejrv2 143.57 143.85 144.19 T:deoxyseq128128v13 148.74 149.38 153.21 T:deoxysneq256128v13 152.80 153.20 153.46 T:led80n6t4silcv3 220.17 220.95 221.39 T:deoxyseq256128v13 285.19? 286.06? 322.11? T:oceankeyakv1 1420.72 1472.31 1474.06 T:acorn128 3814.93 3816.40 3818.28 T:present80n6t4silcv2 3816.90 3818.91 3820.65 T:present80n6silcv1 6886.20 6894.86 6905.30 T:led80n6t4silcv2 6909.23 6935.92 6972.16 T:led80n6silcv1

Cycles/byte for 64+64 forgery 25% 50% 75% aead 2.23 2.26 2.27 aegis128l 2.28 2.30 2.33 T:aegis128 2.46 2.49 2.57 T:tiaoxinv1 2.48? 2.50? 2.89? T:tiaoxinv2 2.57 2.59 2.81 T:aezv5 2.73 2.76 2.92 T:aezv4 2.85 2.88 2.88 aegis256 2.87? 2.88? 3.33? T:aezv3 4.52 4.55 4.57 T:morus640128v1 4.88 4.90 4.96 T:morus640128v2 4.88 4.91 4.95 T:morus1280128v1 4.88 4.91 4.95 T:morus1280256v1 5.12 5.13 5.14 T:aes128otrpv3 5.12 5.16 5.23 T:morus1280128v2 5.16 5.21 5.25 T:morus1280256v2 5.72 5.74 5.90 T:aeadaes128ocbtaglen128v1 5.96 5.98 5.99 T:aes128otrsv3 6.30? 6.47? 11.76? T:aeadaes192ocbtaglen128v1 6.56 6.59 6.86 T:aes256otrpv3 6.79 6.81 6.94 T:aeadaes256ocbtaglen128v1 6.87 6.87 6.90 T:aes128n8t8clocv2 6.86 6.88 6.92 T:aes128n12t8clocv3 6.88 6.91 7.16 T:aes128n12t8clocv2 7.05 7.12 7.20 T:aes128otrcv3 7.12 7.16 7.20 T:aes128gcmv1 7.35 7.41 7.64 T:colm0v1 7.85 7.86 7.89 aes256gcmv1 7.96 7.98 8.00 T:aes256otrsv3 8.19 8.21 8.50 T:aes128n12t8silcv2 8.20 8.21 8.23 T:aes128n12t8silcv3 8.20 8.21 8.46 T:aes128n8t8silcv2 8.76 8.84 8.88 T:norx6441v1 8.85 8.90 8.97 T:norx6441v3 8.88 8.94 9.03 T:norx6441v2 9.17 9.24 9.41 T:deoxysneq256128v1 9.23 9.32 9.38 T:deoxysneq128128v1 9.41 9.42 9.52 T:aes256otrcv3 9.61 9.66 9.70 T:deoxysii128v141 10.02 10.08 10.12 T:deoxysi128v141 10.47 10.52 10.71 T:deoxysi256v141 10.80 10.82 10.89 T:norx3241v1 10.85 10.98 11.20 T:ascon96v1 11.01 11.08 11.11 T:norx3241v2 11.01 11.08 11.12 T:norx3241v3 11.09 11.20 11.27 T:ascon128av11 11.36 11.41 11.50 ascon128av12 11.80 11.88 11.93 T:deoxysii256v141 12.68 12.79 12.88 T:deoxyseq128128v1 12.84 12.88 12.96 T:norx6461v1 12.84 12.88 12.93 T:norx6461v2 13.05 13.11 13.12 T:norx6461v3 13.16 13.20 13.24 T:deoxyseq256128v1 13.34 13.36 13.41 T:aesjambuv1 13.82 13.89 14.10 T:ascon128v1 13.89 14.02 14.22 T:ascon128v11 14.28 14.31 14.47 ascon128v12 15.67 15.72 15.76 T:norx6444v3 15.75 15.86 16.01 T:lakekeyakv1 16.02 16.06 16.16 T:norx3261v3 16.09 16.16 16.23 T:norx3261v2 16.91 16.96 16.98 T:norx3261v1 18.64 18.77 19.03 T:riverkeyakv2 19.18 19.38 19.55 T:lakekeyakv2 22.04 22.12 22.41 T:twine80n6t4clocv3 22.31 22.33 22.60 T:twine80n6t4clocv2 24.52 24.70 24.98 T:aes128n12clocv1 24.71 24.90 25.05 T:aes128n8clocv1 25.12 25.16 25.41 T:aes128otrsv2 25.16 25.29 25.49 T:aes128otrsv1 26.80 26.85 27.09 T:aes128otrpv2 27.04 27.26 27.33 T:aes128otrpv1 28.70 29.23 29.75 T:aes128n8silcv1 28.62 29.34 30.16 T:aes128n12silcv1 30.19 30.27 30.33 T:acorn128v2 30.74 30.80 33.34 T:acorn128v3 31.81 31.86 32.13 T:aes256otrsv2 31.56 31.99 32.27 T:aes256otrsv1 33.43 33.64 33.89 T:aes256otrpv2 33.57 33.76 33.96 T:aes256otrpv1 34.34 34.53 34.70 T:seakeyakv2 35.14 35.40 35.53 T:ketjeminorv2 37.84 38.02 38.11 T:norx6444v2 40.60 40.86 42.42 T:norx6444v1 50.82 51.00 51.33 T:aeadaes128ocbtaglen64v1 50.90 51.02 51.12 T:aeadaes128ocbtaglen96v1 53.59 53.71 53.83 T:ketjesrv1 54.53 54.72 54.91 T:oceankeyakv2 58.52 58.69 58.82 T:aeadaes192ocbtaglen96v1 58.60 58.73 58.86 T:aeadaes192ocbtaglen64v1 59.23 59.38 59.88 T:riverkeyakv1 59.45 59.95 60.44 T:ketjesrv2 62.78 62.94 63.36 T:ketjemajorv2 67.98 68.12 68.24 T:aeadaes256ocbtaglen64v1 68.17 68.27 68.60 T:aeadaes256ocbtaglen96v1 73.70 73.75 73.93 T:colm127v1 75.32 75.62 76.17 T:proest256otrv1 82.05 82.20 83.01 T:ketjejrv1 85.49 85.59 85.89 T:present80n6t4silcv3 100.60 101.15 101.51 T:deoxysneq128128v13 114.07 114.37 114.73 T:twine80n6clocv1 121.91 122.17 122.50 T:proest128otrv1 132.44 132.79 133.00 T:aezv1 133.18 133.62 134.27 T:seakeyakv1 137.39 137.70 138.15 T:lunarkeyakv2 139.27 139.70 140.12 T:ketjejrv2 143.61 144.00 144.60 T:deoxyseq128128v13 149.26 149.62 153.50 T:deoxysneq256128v13 152.98 153.27 153.55 T:led80n6t4silcv3 220.87 221.22 222.28 T:deoxyseq256128v13 285.01? 285.91? 321.62? T:oceankeyakv1 1417.72 1472.23 1474.26 T:acorn128 3812.22 3817.73 3818.71 T:present80n6t4silcv2 3816.59 3819.23 3820.22 T:present80n6silcv1 6897.14 6915.26 6923.93 T:led80n6t4silcv2 6938.24 6955.29 6971.55 T:led80n6silcv1
