Measurements of CAESAR candidates on one machine: amd64; K10 32nm (300f10); 2011 AMD A6-3650; 4 x 2600MHz; hydra4, supercop-20250415

[Page version: 20260302 18:25:57]

eBAEAD (ECRYPT Benchmarking of Authenticated Ciphers) is a project to measure the performance of authenticated ciphers. This page presents an excerpt of the full eBAEAD benchmark results. The excerpt contains AES-GCM and the third-round CAESAR candidates (plus older versions of the same ciphers for comparison).

Each table row lists the first quartile of many speed measurements (or StQ1 starting with supercop-20260214), the median of many speed measurements (or StQ2 starting with supercop-20260214), the third quartile of many speed measurements (or StQ3 starting with supercop-20260214), and the name of the primitive. Measurements with large interquartile range (or stabilized interquartile range) are indicated in red with question marks. The symbol T: (starting with supercop-20200816) means that the SUPERCOP database at the time of benchmarking did not list constant time as a goal for this implementation. The symbol T!!! means that constant time was listed as a goal for this implementation, but that the implementation failed TIMECOP. (TIMECOP failures are not necessarily security issues; they can sometimes be resolved by, e.g., declaring that a rejection-sampling condition is safe to declassify.)

There is a separate page with more information about each cipher and each implementation.

Test results

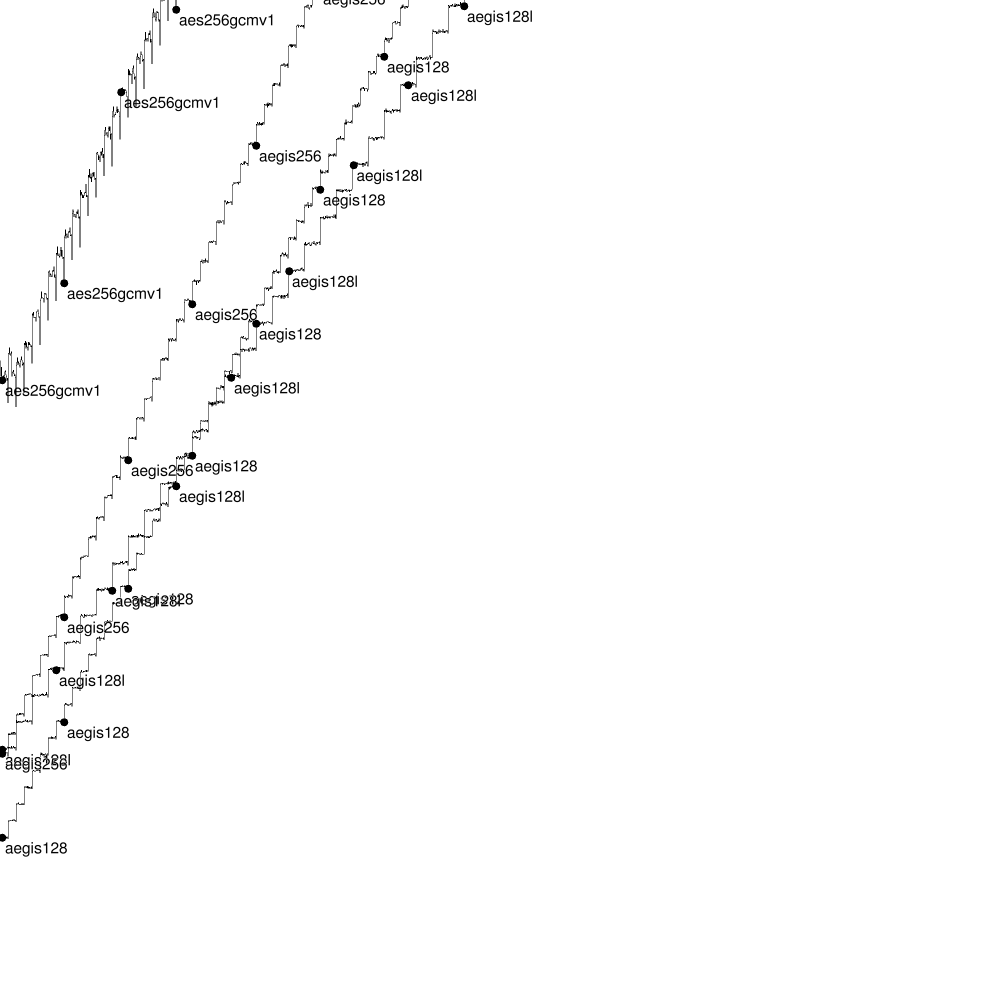

Graphs: old (bytes,cycles)

Cycles/byte for long+0 encrypt 25% 50% 75% aead 1.56 1.57 1.57 T:morus1280256v1 1.57 1.61 1.61 T:morus640128v2 1.62 1.63 1.63 T:morus1280128v1 1.57 1.65 1.67 T:morus1280256v2 1.64 1.67 1.67 T:morus1280128v2 1.84 1.86 1.87 T:morus640128v1 4.29 4.31 4.32 T:norx6441v2 4.28 4.31 4.32 T:norx6441v3 4.34 4.41 4.53 T:lunarkeyakv2 5.16 5.19 5.20 T:norx6441v1 5.15 5.22 5.22 T:norx6444v2 5.17 5.23 5.27 T:norx6444v3 5.71 5.73 5.75 T:norx6444v1 5.75 5.86 5.90 T:lakekeyakv1 6.16 6.19 6.22 T:tiaoxinv2 6.13 6.21 6.24 T:lakekeyakv2 6.19 6.22 6.23 T:tiaoxinv1 6.20 6.27 6.35 T:oceankeyakv2 6.23 6.33 6.42 T:seakeyakv2 6.45 6.46 6.47 T:norx6461v3 6.46 6.46 6.47 T:norx6461v2 6.75 6.79 6.95 T:norx3241v3 6.94 6.98 6.98 T:norx3241v2 7.57 7.60 7.62 T:aegis128l 7.74 7.79 7.82 T:norx6461v1 8.30 8.35 8.36 T:norx3241v1 9.91 9.95 9.95 ascon128av12 9.98 10.01 10.01 T:ascon96v1 10.05 10.07 10.07 T:ascon128av11 10.24 10.25 10.27 T:acorn128v2 10.24 10.26 10.27 T:acorn128v3 10.28 10.33 10.33 T:norx3261v2 10.43 10.46 10.47 T:norx3261v3 10.81 10.84 10.84 T:aegis256 11.22 11.26 11.26 T:aegis128 11.38 11.42 11.53 T:ketjemajorv2 12.48 12.53 12.54 T:norx3261v1 13.36 13.39 13.83 T:ketjeminorv2 13.87 13.87 13.88 ascon128v12 14.84 14.92 14.99 T:riverkeyakv2 15.24 15.25 15.26 T:ascon128v1 15.25 15.25 15.26 T:ascon128v11 17.74 18.22 18.48 T:aes128otrcv3 18.06 18.81 19.42 T:aeadaes128ocbtaglen128v1 18.85 18.93 19.05 T:seakeyakv1 18.69 19.25 19.97 T:oceankeyakv1 21.17 21.19 21.21 T:aes128otrpv2 21.19 21.23 21.26 T:aes128otrsv2 21.20 21.23 21.26 T:aes128otrpv1 21.25 21.33 21.40 T:aes128otrsv1 21.68 21.84 22.20 T:aeadaes192ocbtaglen128v1 22.36 22.37 22.41 T:aes256otrcv3 22.61 22.67 22.72 T:aes128otrsv3 22.66 22.67 22.69 T:aes128otrpv3 24.45 24.45 24.49 aegis128l 24.81 24.83 25.14 T:deoxysi128v141 24.50 25.09 25.55 T:aeadaes256ocbtaglen128v1 25.34 25.42 25.48 T:aes128gcmv1 25.99 26.11 26.13 T:aes256otrsv2 26.03 26.15 27.25 T:aes256otrpv2 26.12 26.16 26.19 T:aes256otrsv1 26.09 26.17 26.20 T:aes256otrpv1 27.28 27.30 27.41 T:deoxysi256v141 27.43 27.56 27.59 T:aes256otrpv3 27.61 27.63 27.65 T:aesjambuv1 27.63 27.74 27.78 T:aes256otrsv3 28.99 29.09 29.16 T:proest256otrv1 31.38 31.40 31.50 T:aes256gcmv1 31.35 31.42 31.59 T:aeadaes128ocbtaglen96v1 31.45 31.74 32.84 T:aeadaes128ocbtaglen64v1 32.12 32.15 32.18 T:aes128n12t8clocv3 32.61 33.05 33.11 T:aes128n8clocv1 33.31 33.34 33.35 T:aes128n12t8clocv2 33.34 33.35 33.38 T:aes128n8t8clocv2 33.55 33.58 33.95 T:aes128n12clocv1 33.69 33.83 34.22 T:aes128n8silcv1 33.65 33.97 34.33 T:aes128n12silcv1 34.07 34.09 34.19 T:aes128n8t8silcv2 34.08 34.11 34.39 T:aes128n12t8silcv2 33.91 34.15 34.40 T:aes128n12t8silcv3 34.07 34.15 34.24 T:aeadaes192ocbtaglen96v1 34.48 34.52 34.57 T:aeadaes192ocbtaglen64v1 37.13 37.19 37.24 T:aeadaes256ocbtaglen64v1 37.09 37.22 37.42 T:aeadaes256ocbtaglen96v1 44.74 45.89 47.13 T:ketjesrv2 46.14 46.19 46.53 T:ketjesrv1 49.84 50.72 52.06 T:riverkeyakv1 59.18 59.27 59.31 T:colm0v1 59.98 60.16 60.33 T:colm127v1 60.43 60.45 60.49 T:deoxysii128v141 79.95 79.95 80.04 T:proest128otrv1 92.62 92.64 92.67 T:ketjejrv1 158.02 158.15 158.73 T:aezv5 157.49 159.49 162.92 T:ketjejrv2 164.44 164.74 165.17 T:aezv4 173.67 173.70 173.76 T:deoxysneq128128v13 173.74 173.92 174.23 T:deoxysneq128128v1 228.46 228.82 230.27 T:deoxysii256v141 252.74 252.77 253.16 T:deoxysneq256128v1 252.67 253.23 254.53 T:deoxysneq256128v13 253.33 254.98 255.25 T:twine80n6clocv1 306.11 307.37 307.75 T:aezv1 343.85 344.70 346.62 T:aezv3 348.97 349.35 350.36 T:deoxyseq128128v1 351.05 351.38 354.22 T:deoxyseq128128v13 368.05 368.34 368.53 T:twine80n6t4clocv2 367.54 379.39 383.64 T:twine80n6t4clocv3 506.92 507.69 508.61 T:deoxyseq256128v1 510.29 510.76 511.18 T:deoxyseq256128v13 703.70 703.90 704.15 T:acorn128 7145.61 7146.16 7153.74 T:present80n6t4silcv2 7146.55 7146.88 7154.25 T:present80n6silcv1 7146.64 7147.19 7147.29 T:present80n6t4silcv3 9169.24 9198.30 9206.57 T:led80n6t4silcv3 9168.58 9198.63 9206.83 T:led80n6silcv1 9169.78 9206.93 9225.82 T:led80n6t4silcv2 25227.68 25228.48 25228.77 aes256gcmv1

Cycles/byte for long+0 decrypt 25% 50% 75% aead 1.43 1.45 1.45 T:morus1280256v2 1.42 1.45 1.47 T:morus1280128v2 1.44 1.45 1.45 T:morus1280256v1 1.41 1.45 1.46 T:morus1280128v1 1.51 1.53 1.54 T:morus640128v2 1.53 1.54 1.55 T:morus640128v1 4.40 4.40 4.40 T:norx6441v3 4.39 4.40 4.41 T:norx6441v2 4.30 4.43 4.54 T:lunarkeyakv2 5.03 5.10 5.17 T:norx6444v2 5.13 5.15 5.22 T:norx6444v3 5.19 5.24 5.24 T:norx6441v1 5.66 5.72 5.75 T:norx6444v1 5.66 5.80 5.84 T:lakekeyakv1 6.17 6.26 6.31 T:lakekeyakv2 6.18 6.27 6.34 T:oceankeyakv2 6.26 6.33 6.41 T:seakeyakv2 6.53 6.54 6.56 T:norx6461v2 6.55 6.56 6.56 T:norx6461v3 6.63 6.64 6.64 T:norx3241v2 6.71 6.72 6.72 T:norx3241v3 7.19 7.22 7.28 T:tiaoxinv2 7.22 7.29 7.32 T:tiaoxinv1 7.51 7.53 7.55 T:aegis128l 7.78 7.83 7.84 T:norx6461v1 8.19 8.26 8.27 T:norx3241v1 9.71 9.75 9.76 ascon128av12 10.05 10.07 10.08 T:ascon128av11 10.11 10.13 10.14 T:ascon96v1 10.12 10.14 10.14 T:norx3261v3 10.16 10.17 10.18 T:norx3261v2 10.25 10.27 10.28 T:acorn128v3 10.62 10.66 10.68 T:aegis256 10.74 10.75 10.78 T:acorn128v2 10.76 10.78 10.81 T:ketjemajorv2 11.08 11.09 11.11 T:aegis128 12.31 12.32 12.34 T:norx3261v1 13.75 13.79 13.89 T:ketjeminorv2 13.87 13.88 13.90 ascon128v12 15.07 15.12 15.13 T:riverkeyakv2 15.36 15.38 15.38 T:ascon128v1 15.36 15.38 15.39 T:ascon128v11 17.75 17.79 18.16 T:aes128otrcv3 18.21 18.73 19.39 T:aeadaes128ocbtaglen128v1 18.94 19.03 19.26 T:seakeyakv1 18.56 19.15 20.13 T:oceankeyakv1 21.14 21.15 21.20 T:aes128otrpv1 21.17 21.18 21.21 T:aes128otrpv2 21.19 21.21 21.26 T:aes128otrsv2 21.19 21.21 21.31 T:aes128otrsv1 21.51 21.61 21.98 T:aes128otrsv3 21.49 21.76 21.82 T:aes128otrpv3 21.57 21.92 22.21 T:aeadaes192ocbtaglen128v1 22.47 22.48 22.50 T:aes256otrcv3 24.65 24.65 24.66 aegis128l 25.39 25.47 25.49 T:aes128gcmv1 24.70 26.04 26.93 T:aeadaes256ocbtaglen128v1 25.95 26.12 27.61 T:aes256otrpv2 26.11 26.15 26.27 T:aes256otrpv1 26.15 26.19 26.23 T:aes256otrsv1 26.12 26.20 26.21 T:aes256otrsv2 26.29 26.37 26.48 T:aes256otrsv3 26.37 26.63 26.65 T:aes256otrpv3 27.87 27.88 27.90 T:aesjambuv1 28.65 28.78 28.83 T:proest256otrv1 31.08 31.10 31.20 T:deoxysi128v141 31.12 31.19 31.33 T:aeadaes128ocbtaglen64v1 31.13 31.20 31.31 T:aeadaes128ocbtaglen96v1 31.33 31.37 31.55 T:aes256gcmv1 33.73 33.77 34.44 T:aes128n8t8silcv2 33.80 33.81 33.81 T:aes128n8t8clocv2 33.80 33.82 33.82 T:aes128n12t8clocv2 33.82 33.85 33.88 T:deoxysi256v141 33.88 33.98 34.02 T:aes128n12t8silcv2 33.83 34.02 34.61 T:aes128n12t8silcv3 33.67 34.03 35.85 T:aes128n12clocv1 33.98 34.03 34.37 T:aeadaes192ocbtaglen96v1 34.13 34.20 34.22 T:aeadaes192ocbtaglen64v1 34.22 34.75 35.24 T:aes128n8silcv1 34.26 34.78 35.02 T:aes128n12silcv1 35.37 35.38 35.40 T:aes128n12t8clocv3 35.20 35.68 35.71 T:aes128n8clocv1 36.92 37.23 37.32 T:aeadaes256ocbtaglen96v1 37.15 37.89 38.28 T:aeadaes256ocbtaglen64v1 45.29 45.41 46.27 T:ketjesrv1 46.02 46.48 47.18 T:ketjesrv2 50.89 51.19 52.32 T:riverkeyakv1 60.12 60.13 60.25 T:deoxysii128v141 63.19 63.46 63.49 T:colm0v1 64.16 64.22 64.46 T:colm127v1 75.17 75.25 75.28 T:proest128otrv1 91.38 91.70 91.84 T:ketjejrv1 157.51 157.75 158.10 T:aezv5 159.06 161.10 162.92 T:ketjejrv2 163.85 164.16 164.64 T:aezv4 221.85 222.06 222.38 T:deoxysneq128128v1 222.26 222.28 222.37 T:deoxysneq128128v13 227.98 229.00 229.13 T:deoxysii256v141 253.89 253.96 254.28 T:twine80n6clocv1 305.45 306.41 307.02 T:aezv1 306.52 306.83 306.97 T:deoxysneq256128v1 306.85 307.23 308.16 T:deoxysneq256128v13 343.86 344.87 344.94 T:aezv3 352.44 352.90 353.42 T:deoxyseq128128v13 365.85 366.17 367.09 T:twine80n6t4clocv2 366.62 377.95 382.12 T:twine80n6t4clocv3 443.82 444.93 446.69 T:deoxyseq128128v1 509.10 510.31 511.94 T:deoxyseq256128v13 613.81 614.35 615.06 T:deoxyseq256128v1 695.33 695.47 695.76 T:acorn128 7142.72 7143.40 7144.32 T:present80n6silcv1 7144.05 7144.64 7145.02 T:present80n6t4silcv2 7144.40 7152.22 7152.68 T:present80n6t4silcv3 9169.73 9178.86 9203.22 T:led80n6silcv1 9189.43 9195.29 9244.79 T:led80n6t4silcv3 9196.01 9205.96 9209.80 T:led80n6t4silcv2 25228.48 25229.35 25230.22 aes256gcmv1

Cycles/byte for long+0 forgery 25% 50% 75% aead 1.43 1.45 1.46 T:morus1280256v2 1.44 1.45 1.46 T:morus1280128v1 1.44 1.45 1.46 T:morus1280256v1 1.45 1.45 1.47 T:morus1280128v2 1.53 1.53 1.53 T:morus640128v2 1.54 1.54 1.55 T:morus640128v1 4.40 4.40 4.40 T:norx6441v3 4.40 4.40 4.40 T:norx6441v2 4.40 4.47 4.56 T:lunarkeyakv2 5.19 5.20 5.28 T:norx6444v2 5.24 5.24 5.24 T:norx6441v1 5.22 5.26 5.28 T:norx6444v3 5.74 5.80 5.82 T:norx6444v1 5.78 5.85 5.98 T:lakekeyakv1 6.24 6.33 6.38 T:lakekeyakv2 6.29 6.34 6.37 T:oceankeyakv2 6.34 6.39 6.47 T:seakeyakv2 6.54 6.54 6.54 T:norx6461v2 6.55 6.56 6.56 T:norx6461v3 6.63 6.64 6.64 T:norx3241v2 6.72 6.72 6.72 T:norx3241v3 7.23 7.24 7.28 T:tiaoxinv2 7.21 7.33 7.34 T:tiaoxinv1 7.55 7.60 7.63 T:aegis128l 7.83 7.84 7.84 T:norx6461v1 8.25 8.26 8.26 T:norx3241v1 9.75 9.75 9.76 ascon128av12 10.04 10.07 10.08 T:ascon128av11 10.13 10.13 10.14 T:norx3261v3 10.11 10.14 10.16 T:ascon96v1 10.17 10.17 10.17 T:norx3261v2 10.25 10.28 10.28 T:acorn128v3 10.68 10.75 10.79 T:aegis256 10.74 10.75 10.79 T:acorn128v2 10.80 10.86 11.10 T:ketjemajorv2 11.04 11.07 11.10 T:aegis128 12.31 12.32 12.33 T:norx3261v1 13.81 13.85 13.98 T:ketjeminorv2 13.87 13.88 13.88 ascon128v12 15.11 15.19 15.23 T:riverkeyakv2 15.37 15.38 15.39 T:ascon128v1 15.36 15.38 15.39 T:ascon128v11 17.73 17.80 18.15 T:aes128otrcv3 18.27 18.98 19.54 T:aeadaes128ocbtaglen128v1 19.08 19.13 19.27 T:seakeyakv1 18.59 19.17 20.17 T:oceankeyakv1 21.17 21.22 21.28 T:aes128otrpv1 21.21 21.26 21.30 T:aes128otrpv2 21.25 21.29 21.32 T:aes128otrsv2 21.28 21.30 21.39 T:aes128otrsv1 21.54 21.67 22.06 T:aes128otrsv3 21.15 21.77 22.27 T:aeadaes192ocbtaglen128v1 21.55 21.83 21.90 T:aes128otrpv3 22.46 22.47 22.50 T:aes256otrcv3 24.65 24.72 24.76 aegis128l 25.41 25.47 25.48 T:aes128gcmv1 24.54 25.51 26.22 T:aeadaes256ocbtaglen128v1 26.16 26.24 26.36 T:aes256otrpv1 26.16 26.26 26.29 T:aes256otrsv2 26.20 26.27 26.29 T:aes256otrsv1 26.35 26.44 26.56 T:aes256otrsv3 26.14 26.48 27.67 T:aes256otrpv2 26.41 26.72 26.73 T:aes256otrpv3 27.87 27.90 27.92 T:aesjambuv1 28.56 28.63 28.79 T:proest256otrv1 31.12 31.19 31.33 T:aeadaes128ocbtaglen64v1 31.13 31.20 31.27 T:deoxysi128v141 31.12 31.21 31.31 T:aeadaes128ocbtaglen96v1 31.33 31.56 31.59 T:aes256gcmv1 33.74 33.76 34.43 T:aes128n8t8silcv2 33.80 33.81 33.83 T:aes128n12t8clocv2 33.78 33.82 33.84 T:aes128n8t8clocv2 33.85 33.92 33.98 T:deoxysi256v141 33.95 33.98 34.00 T:aes128n12t8silcv2 33.83 34.02 34.55 T:aes128n12t8silcv3 33.90 34.05 35.84 T:aes128n12clocv1 33.96 34.13 34.16 T:aeadaes192ocbtaglen96v1 34.11 34.21 34.23 T:aeadaes192ocbtaglen64v1 34.04 34.74 35.26 T:aes128n8silcv1 34.25 34.77 35.03 T:aes128n12silcv1 35.38 35.39 35.41 T:aes128n12t8clocv3 35.22 35.68 35.75 T:aes128n8clocv1 36.92 36.99 37.19 T:aeadaes256ocbtaglen96v1 36.77 37.96 38.57 T:aeadaes256ocbtaglen64v1 45.32 45.88 46.35 T:ketjesrv1 46.09 46.52 47.24 T:ketjesrv2 50.96 51.13 52.40 T:riverkeyakv1 60.19 60.23 60.31 T:deoxysii128v141 62.95 63.07 63.15 T:colm127v1 63.35 63.40 63.50 T:colm0v1 75.22 75.23 75.28 T:proest128otrv1 91.04 91.48 91.92 T:ketjejrv1 157.36 157.61 157.98 T:aezv5 159.07 161.18 162.95 T:ketjejrv2 163.79 164.20 164.56 T:aezv4 221.81 221.97 222.07 T:deoxysneq128128v1 222.33 222.39 222.47 T:deoxysneq128128v13 228.09 229.08 229.21 T:deoxysii256v141 253.67 254.21 254.78 T:twine80n6clocv1 305.26 306.62 306.73 T:aezv1 306.53 306.88 306.98 T:deoxysneq256128v1 306.93 307.27 308.24 T:deoxysneq256128v13 343.67 344.59 345.06 T:aezv3 352.48 352.97 353.51 T:deoxyseq128128v13 365.85 366.08 367.10 T:twine80n6t4clocv2 366.74 377.98 382.15 T:twine80n6t4clocv3 443.95 444.95 446.72 T:deoxyseq128128v1 509.25 510.37 512.01 T:deoxyseq256128v13 613.82 614.30 615.00 T:deoxyseq256128v1 625.06 625.63 625.83 aes256gcmv1 695.30 695.49 695.75 T:acorn128 7142.78 7143.34 7144.12 T:present80n6silcv1 7144.30 7144.70 7144.98 T:present80n6t4silcv2 7144.32 7152.24 7152.62 T:present80n6t4silcv3 9168.81 9185.06 9204.74 T:led80n6silcv1 9198.11 9207.32 9214.25 T:led80n6t4silcv2 9182.57 9215.39 9246.20 T:led80n6t4silcv3

Cycles/byte for long+long encrypt 25% 50% 75% aead 1.40 1.42 1.44 T:morus1280256v1 1.42 1.44 1.45 T:morus1280128v1 1.41 1.45 1.50 T:morus1280256v2 1.44 1.47 1.48 T:morus1280128v2 1.52 1.53 1.53 T:morus640128v2 1.64 1.66 1.66 T:morus640128v1 4.31 4.33 4.34 T:norx6441v2 4.30 4.33 4.34 T:norx6441v3 5.10 5.10 5.13 T:norx6444v3 5.09 5.13 5.18 T:oceankeyakv2 5.11 5.13 5.15 T:norx6444v2 5.12 5.18 5.21 T:seakeyakv2 5.19 5.20 5.23 T:norx6441v1 5.28 5.30 5.35 T:lakekeyakv2 5.47 5.52 5.55 T:lakekeyakv1 5.61 5.63 5.63 T:norx6444v1 5.89 5.93 5.95 T:tiaoxinv1 5.93 5.96 5.97 T:tiaoxinv2 5.94 5.97 6.03 T:lunarkeyakv2 6.46 6.48 6.49 T:norx6461v2 6.47 6.48 6.49 T:norx6461v3 6.89 6.89 6.89 T:norx3241v2 6.90 6.90 6.90 T:norx3241v3 7.37 7.40 7.40 T:aegis128l 7.77 7.81 7.83 T:norx6461v1 8.31 8.34 8.36 T:norx3241v1 9.36 9.65 9.72 T:ketjemajorv2 9.73 9.76 9.77 ascon128av12 9.98 10.01 10.02 T:ascon128av11 10.02 10.04 10.05 T:ascon96v1 10.12 10.13 10.14 T:acorn128v3 10.12 10.13 10.14 T:acorn128v2 10.36 10.36 10.36 T:norx3261v2 10.36 10.36 10.37 T:norx3261v3 10.47 10.48 10.50 T:aegis256 10.65 10.68 10.69 T:riverkeyakv2 11.01 11.04 11.05 T:aegis128 11.94 12.29 12.30 T:ketjeminorv2 12.48 12.51 12.53 T:norx3261v1 13.61 13.62 13.64 ascon128v12 15.23 15.25 15.26 T:ascon128v1 15.24 15.25 15.26 T:ascon128v11 16.25 16.30 16.50 T:aes128gcmv1 17.74 18.02 18.18 T:aes128otrcv3 18.64 18.68 18.70 T:seakeyakv1 18.43 18.79 18.93 T:aeadaes128ocbtaglen128v1 18.50 18.82 19.56 T:oceankeyakv1 19.34 19.40 19.44 T:aes256gcmv1 19.40 19.43 19.46 T:aes128otrsv2 19.42 19.54 19.58 T:aes128otrsv1 20.01 20.02 20.04 aegis128l 20.27 20.31 20.34 T:aes128otrsv3 21.28 21.32 21.36 T:aes128otrpv1 21.30 21.56 21.70 T:aes128otrpv2 21.63 21.77 21.86 T:aeadaes192ocbtaglen128v1 22.12 22.17 22.42 T:aes128otrpv3 22.42 22.47 22.52 T:aes256otrcv3 24.06 24.09 24.10 T:aes128n12t8clocv3 24.48 24.60 24.62 T:aes128n8clocv1 24.74 24.79 24.83 T:aes128n12t8clocv2 24.78 24.81 24.83 T:aes128n8t8clocv2 24.87 24.93 25.05 T:aes256otrsv2 24.91 24.94 25.42 T:aes128n12clocv1 24.55 24.97 25.18 T:aeadaes256ocbtaglen128v1 24.89 24.98 25.05 T:aes256otrsv1 25.19 25.26 25.50 T:aes128n12t8silcv3 25.25 25.35 25.56 T:aes128n8silcv1 25.40 25.43 25.55 T:aes128n12t8silcv2 25.16 25.46 25.55 T:aes128n8t8silcv2 25.40 25.51 25.56 T:aes128n12silcv1 25.77 25.83 25.87 T:aes256otrsv3 25.90 25.96 25.98 T:deoxysi128v141 26.74 26.77 26.81 T:aes256otrpv1 26.73 26.78 27.46 T:aes256otrpv2 27.38 27.39 27.40 T:aesjambuv1 27.51 27.54 27.60 T:aes256otrpv3 28.01 28.03 28.04 T:deoxysi256v141 28.79 28.98 29.06 T:aeadaes128ocbtaglen96v1 28.95 29.01 29.68 T:aeadaes128ocbtaglen64v1 29.27 29.30 29.31 T:proest256otrv1 31.87 31.90 32.06 T:aeadaes192ocbtaglen96v1 31.96 31.99 32.12 T:aeadaes192ocbtaglen64v1 34.95 34.97 35.08 T:aeadaes256ocbtaglen64v1 34.91 35.01 35.36 T:aeadaes256ocbtaglen96v1 41.85 41.89 42.31 T:ketjesrv1 41.84 41.90 41.95 T:colm0v1 42.24 42.37 42.55 T:colm127v1 42.86 43.03 43.50 T:ketjesrv2 44.18 44.20 44.21 T:deoxysii128v141 48.38 49.51 49.89 T:riverkeyakv1 78.30 78.41 78.42 T:proest128otrv1 86.33 86.38 86.50 T:ketjejrv1 143.81 143.98 144.15 T:aezv5 152.33 152.75 157.38 T:ketjejrv2 152.68 153.17 153.42 T:aezv4 170.17 170.28 170.40 T:deoxysii256v141 173.74 173.93 174.24 T:deoxysneq128128v13 174.20 174.48 174.57 T:deoxysneq128128v1 190.31 191.32 191.55 T:twine80n6clocv1 200.87 202.15 202.38 T:aezv1 253.34 253.54 253.58 T:deoxysneq256128v1 252.31 253.90 254.09 T:deoxysneq256128v13 262.02 262.38 262.58 T:deoxyseq128128v1 261.17 262.62 263.14 T:deoxyseq128128v13 272.51 274.39 274.69 T:aezv3 274.55 274.80 275.23 T:twine80n6t4clocv2 274.72 282.98 283.56 T:twine80n6t4clocv3 379.59 381.27 381.63 T:deoxyseq256128v1 380.69 381.54 381.92 T:deoxyseq256128v13 697.34 697.58 698.32 T:acorn128 5359.43 5359.88 5364.94 T:present80n6silcv1 5361.06 5361.42 5365.03 T:present80n6t4silcv2 5361.49 5361.69 5361.92 T:present80n6t4silcv3 6869.88 6874.82 6884.32 T:led80n6t4silcv3 6873.31 6878.64 6883.32 T:led80n6silcv1 6889.99 6895.66 6898.62 T:led80n6t4silcv2 12926.36 12927.02 12933.70 aes256gcmv1

Cycles/byte for long+long decrypt 25% 50% 75% aead 1.34 1.35 1.35 T:morus1280256v2 1.32 1.35 1.37 T:morus1280128v2 1.33 1.35 1.37 T:morus1280256v1 1.31 1.36 1.38 T:morus1280128v1 1.54 1.55 1.56 T:morus640128v1 1.52 1.56 1.56 T:morus640128v2 4.35 4.38 4.39 T:norx6441v2 4.36 4.38 4.38 T:norx6441v3 5.06 5.08 5.11 T:norx6444v2 5.06 5.10 5.14 T:norx6444v3 5.12 5.16 5.22 T:seakeyakv2 5.11 5.17 5.21 T:oceankeyakv2 5.20 5.23 5.25 T:norx6441v1 5.29 5.31 5.32 T:lakekeyakv2 5.45 5.52 5.53 T:lakekeyakv1 5.62 5.64 5.66 T:norx6444v1 5.91 5.99 6.04 T:lunarkeyakv2 6.51 6.53 6.54 T:norx6461v3 6.51 6.53 6.54 T:norx6461v2 6.50 6.54 6.57 T:tiaoxinv2 6.52 6.56 6.58 T:tiaoxinv1 6.79 6.79 6.80 T:norx3241v2 6.83 6.83 6.84 T:norx3241v3 7.34 7.37 7.40 T:aegis128l 7.80 7.83 7.85 T:norx6461v1 8.27 8.29 8.31 T:norx3241v1 9.26 9.29 9.32 T:ketjemajorv2 9.55 9.57 9.58 ascon128av12 10.02 10.04 10.05 T:ascon128av11 10.05 10.07 10.08 T:ascon96v1 10.24 10.24 10.25 T:norx3261v3 10.23 10.26 10.27 T:acorn128v3 10.28 10.28 10.29 T:norx3261v2 10.33 10.36 10.38 T:aegis256 10.37 10.38 10.39 T:acorn128v2 10.70 10.77 10.78 T:riverkeyakv2 10.88 10.90 10.92 T:aegis128 12.14 12.18 12.21 T:ketjeminorv2 12.36 12.36 12.41 T:norx3261v1 13.81 13.82 13.82 ascon128v12 15.23 15.25 15.26 T:ascon128v1 15.23 15.25 15.26 T:ascon128v11 16.31 16.35 16.51 T:aes128gcmv1 17.78 17.83 19.27 T:aes128otrcv3 18.68 18.73 18.79 T:seakeyakv1 18.50 18.81 19.05 T:aeadaes128ocbtaglen128v1 18.65 18.93 19.67 T:oceankeyakv1 19.36 19.39 19.46 T:aes256gcmv1 19.44 19.48 19.49 T:aes128otrsv2 19.44 19.55 19.56 T:aes128otrsv1 19.70 19.79 20.01 T:aes128otrsv3 20.18 20.18 20.19 aegis128l 21.30 21.33 21.44 T:aes128otrpv2 21.32 21.35 21.59 T:aes128otrpv1 21.57 21.66 21.69 T:aes128otrpv3 21.59 21.71 22.01 T:aeadaes192ocbtaglen128v1 22.47 22.51 23.16 T:aes256otrcv3 24.92 24.94 25.04 T:aes256otrsv2 24.94 24.95 25.06 T:aes256otrsv1 25.05 25.09 25.13 T:aes128n12t8clocv2 25.05 25.10 25.12 T:aes128n8t8clocv2 24.95 25.12 26.37 T:aes128n12clocv1 25.11 25.13 25.30 T:aes256otrsv3 25.26 25.29 25.40 T:aes128n12t8silcv2 24.76 25.30 25.57 T:aeadaes256ocbtaglen128v1 25.20 25.33 25.55 T:aes128n12t8silcv3 25.41 25.42 25.44 T:aes128n8t8silcv2 25.42 25.48 25.82 T:aes128n8silcv1 25.72 25.75 25.87 T:aes128n12silcv1 25.78 25.80 25.83 T:aes128n12t8clocv3 25.66 25.83 25.89 T:aes128n8clocv1 26.69 26.76 27.64 T:aes256otrpv2 26.74 26.78 26.84 T:aes256otrpv1 26.93 27.06 27.13 T:aes256otrpv3 27.49 27.50 27.52 T:aesjambuv1 28.65 28.69 28.70 T:deoxysi128v141 28.79 28.81 28.84 T:aeadaes128ocbtaglen96v1 28.83 28.86 28.90 T:aeadaes128ocbtaglen64v1 29.06 29.07 29.14 T:proest256otrv1 31.11 31.17 31.20 T:deoxysi256v141 31.80 31.83 31.88 T:aeadaes192ocbtaglen64v1 31.81 31.86 31.96 T:aeadaes192ocbtaglen96v1 34.78 34.98 35.38 T:aeadaes256ocbtaglen96v1 34.83 35.18 35.38 T:aeadaes256ocbtaglen64v1 43.73 43.83 44.04 T:ketjesrv2 42.94 43.96 44.25 T:ketjesrv1 43.91 43.97 43.99 T:colm0v1 44.02 44.04 44.06 T:deoxysii128v141 44.29 44.36 44.47 T:colm127v1 48.31 48.83 49.70 T:riverkeyakv1 75.98 76.03 76.04 T:proest128otrv1 85.65 85.90 85.93 T:ketjejrv1 143.61 143.71 143.83 T:aezv5 151.48 152.50 157.66 T:ketjejrv2 152.52 152.82 153.02 T:aezv4 170.62 171.55 171.90 T:deoxysii256v141 190.97 191.18 191.26 T:twine80n6clocv1 197.92 198.26 199.01 T:deoxysneq128128v13 198.33 198.69 198.92 T:deoxysneq128128v1 200.55 201.72 201.94 T:aezv1 262.72 262.77 263.28 T:deoxyseq128128v13 273.19 273.94 275.50 T:aezv3 274.08 274.28 274.51 T:twine80n6t4clocv2 279.50 280.02 282.22 T:deoxysneq256128v13 280.23 280.46 280.55 T:deoxysneq256128v1 274.26 282.27 283.02 T:twine80n6t4clocv3 310.03 310.48 311.03 T:deoxyseq128128v1 380.80 381.07 382.37 T:deoxyseq256128v13 433.60 434.31 434.42 T:deoxyseq256128v1 699.98 700.15 700.27 T:acorn128 5357.95 5358.34 5358.56 T:present80n6silcv1 5359.98 5360.60 5368.66 T:present80n6t4silcv2 5360.39 5364.30 5364.43 T:present80n6t4silcv3 6866.63 6873.85 6903.64 T:led80n6silcv1 6865.88 6894.49 6915.06 T:led80n6t4silcv2 6890.33 6901.80 6906.34 T:led80n6t4silcv3 12927.11 12927.78 12932.28 aes256gcmv1

Cycles/byte for long+long forgery 25% 50% 75% aead 1.35 1.35 1.36 T:morus1280128v2 1.35 1.35 1.36 T:morus1280256v2 1.35 1.36 1.36 T:morus1280128v1 1.35 1.36 1.36 T:morus1280256v1 1.55 1.55 1.56 T:morus640128v1 1.55 1.56 1.56 T:morus640128v2 4.38 4.38 4.38 T:norx6441v2 4.38 4.38 4.38 T:norx6441v3 5.10 5.13 5.15 T:norx6444v2 5.13 5.14 5.16 T:norx6444v3 5.18 5.19 5.23 T:oceankeyakv2 5.16 5.19 5.24 T:seakeyakv2 5.23 5.23 5.23 T:norx6441v1 5.31 5.35 5.37 T:lakekeyakv2 5.49 5.54 5.59 T:lakekeyakv1 5.66 5.68 5.69 T:norx6444v1 5.97 6.00 6.02 T:lunarkeyakv2 6.52 6.53 6.53 T:norx6461v3 6.53 6.53 6.53 T:norx6461v2 6.53 6.54 6.55 T:tiaoxinv2 6.52 6.56 6.57 T:tiaoxinv1 6.79 6.79 6.80 T:norx3241v2 6.83 6.83 6.83 T:norx3241v3 7.38 7.41 7.43 T:aegis128l 7.82 7.83 7.83 T:norx6461v1 8.29 8.29 8.30 T:norx3241v1 9.29 9.32 9.37 T:ketjemajorv2 9.57 9.57 9.58 ascon128av12 10.03 10.04 10.05 T:ascon128av11 10.06 10.07 10.08 T:ascon96v1 10.24 10.24 10.24 T:norx3261v3 10.23 10.26 10.27 T:acorn128v3 10.28 10.28 10.29 T:norx3261v2 10.37 10.38 10.39 T:acorn128v2 10.36 10.40 10.41 T:aegis256 10.74 10.77 10.83 T:riverkeyakv2 10.90 10.90 10.93 T:aegis128 12.18 12.23 12.27 T:ketjeminorv2 12.37 12.38 12.38 T:norx3261v1 13.81 13.81 13.82 ascon128v12 15.24 15.25 15.26 T:ascon128v11 15.24 15.25 15.26 T:ascon128v1 16.34 16.48 16.52 T:aes128gcmv1 17.77 17.83 18.12 T:aes128otrcv3 18.40 18.75 19.10 T:aeadaes128ocbtaglen128v1 18.75 18.79 18.83 T:seakeyakv1 18.69 18.96 20.54 T:oceankeyakv1 19.37 19.40 19.44 T:aes256gcmv1 19.48 19.51 19.53 T:aes128otrsv2 19.47 19.57 19.61 T:aes128otrsv1 19.80 19.96 20.06 T:aes128otrsv3 20.21 20.23 20.24 aegis128l 21.33 21.37 21.50 T:aes128otrpv2 21.34 21.38 21.64 T:aes128otrpv1 21.60 21.70 21.73 T:aes128otrpv3 21.49 21.76 22.17 T:aeadaes192ocbtaglen128v1 22.45 22.52 23.71 T:aes256otrcv3 24.95 24.98 25.08 T:aes256otrsv2 25.06 25.08 25.12 T:aes128n12t8clocv2 24.97 25.09 25.13 T:aes256otrsv1 25.06 25.10 25.12 T:aes128n8t8clocv2 24.94 25.15 26.37 T:aes128n12clocv1 25.14 25.15 25.33 T:aes256otrsv3 24.70 25.24 25.64 T:aeadaes256ocbtaglen128v1 25.26 25.27 25.37 T:aes128n12t8silcv2 25.20 25.33 25.58 T:aes128n12t8silcv3 25.30 25.43 25.44 T:aes128n8t8silcv2 25.38 25.46 25.82 T:aes128n8silcv1 25.58 25.74 25.86 T:aes128n12silcv1 25.79 25.80 25.82 T:aes128n12t8clocv3 25.67 25.84 25.90 T:aes128n8clocv1 26.74 26.80 27.68 T:aes256otrpv2 26.79 26.82 26.89 T:aes256otrpv1 27.09 27.11 27.17 T:aes256otrpv3 27.49 27.50 27.52 T:aesjambuv1 28.69 28.72 28.74 T:deoxysi128v141 28.79 28.80 28.83 T:aeadaes128ocbtaglen96v1 28.79 28.86 28.87 T:aeadaes128ocbtaglen64v1 29.04 29.07 29.14 T:proest256otrv1 31.16 31.20 31.27 T:deoxysi256v141 31.78 31.83 31.89 T:aeadaes192ocbtaglen96v1 31.79 31.90 31.92 T:aeadaes192ocbtaglen64v1 34.79 34.82 35.38 T:aeadaes256ocbtaglen96v1 35.08 35.21 35.51 T:aeadaes256ocbtaglen64v1 43.16 43.81 44.03 T:ketjesrv1 43.61 43.86 44.09 T:ketjesrv2 43.77 43.87 43.91 T:colm127v1 43.94 43.97 44.00 T:colm0v1 44.04 44.08 44.82 T:deoxysii128v141 48.49 48.85 49.75 T:riverkeyakv1 76.00 76.01 76.03 T:proest128otrv1 85.69 85.94 85.97 T:ketjejrv1 143.55 143.67 143.74 T:aezv5 151.39 152.55 157.69 T:ketjejrv2 152.40 152.78 152.97 T:aezv4 170.74 171.53 171.97 T:deoxysii256v141 190.85 191.14 193.16 T:twine80n6clocv1 197.98 198.38 199.04 T:deoxysneq128128v13 198.44 198.67 198.93 T:deoxysneq128128v1 200.82 201.43 201.84 T:aezv1 262.75 262.94 263.30 T:deoxyseq128128v13 273.15 273.80 275.44 T:aezv3 274.09 274.35 274.50 T:twine80n6t4clocv2 279.54 280.16 282.23 T:deoxysneq256128v13 280.24 280.46 280.58 T:deoxysneq256128v1 274.31 282.25 283.01 T:twine80n6t4clocv3 309.98 310.48 311.05 T:deoxyseq128128v1 380.85 381.13 382.38 T:deoxyseq256128v13 433.54 434.32 434.39 T:deoxyseq256128v1 625.24 625.55 625.81 aes256gcmv1 699.93 700.17 700.21 T:acorn128 5357.94 5358.40 5358.62 T:present80n6silcv1 5359.91 5360.37 5368.65 T:present80n6t4silcv2 5360.51 5364.30 5364.44 T:present80n6t4silcv3 6866.97 6874.53 6881.98 T:led80n6silcv1 6888.84 6892.22 6897.56 T:led80n6t4silcv2 6899.30 6904.06 6916.37 T:led80n6t4silcv3

Cycles/byte for 0+long encrypt 25% 50% 75% aead 1.23 1.24 1.25 T:morus1280128v1 1.25 1.27 1.27 T:morus1280256v1 1.25 1.27 1.28 T:morus1280128v2 1.24 1.28 1.30 T:morus1280256v2 1.43 1.45 1.45 T:morus640128v1 1.43 1.46 1.46 T:morus640128v2 3.80 3.84 3.89 T:lunarkeyakv2 3.81 3.87 3.91 T:oceankeyakv2 4.32 4.36 4.37 T:norx6441v2 4.31 4.36 4.37 T:norx6441v3 4.71 4.76 4.80 T:lakekeyakv2 4.75 4.82 4.89 T:seakeyakv2 4.95 4.99 4.99 T:norx6444v3 5.00 5.05 5.06 T:norx6444v2 5.09 5.18 5.21 T:lakekeyakv1 5.19 5.22 5.24 T:norx6441v1 5.48 5.53 5.54 T:norx6444v1 5.66 5.69 5.71 T:tiaoxinv1 5.68 5.71 5.74 T:tiaoxinv2 6.46 6.50 6.51 T:norx6461v2 6.47 6.51 6.52 T:norx6461v3 6.77 6.79 6.82 T:norx3241v2 6.96 7.00 7.00 T:norx3241v3 7.15 7.19 7.21 T:aegis128l 7.18 7.28 7.36 T:aes128gcmv1 7.28 7.28 7.30 T:aes256gcmv1 7.78 7.82 7.84 T:norx6461v1 7.63 8.03 8.10 T:ketjemajorv2 8.29 8.32 8.33 T:norx3241v1 9.54 9.57 9.57 ascon128av12 9.66 9.73 9.76 T:riverkeyakv2 9.93 9.95 9.95 T:ascon128av11 10.00 10.01 10.02 T:acorn128v2 9.99 10.01 10.02 T:acorn128v3 10.05 10.07 10.08 T:ascon96v1 10.11 10.11 10.15 T:aegis256 10.23 10.27 10.28 T:norx3261v3 10.37 10.38 10.63 T:ketjeminorv2 10.36 10.39 10.41 T:norx3261v2 10.84 10.87 10.90 T:aegis128 12.45 12.48 12.50 T:norx3261v1 13.37 13.38 13.38 ascon128v12 15.24 15.25 15.26 T:ascon128v1 15.24 15.25 15.26 T:ascon128v11 15.59 15.59 15.60 aegis128l 16.04 16.06 16.07 T:aes128n12t8clocv3 16.09 16.15 16.17 T:aes128n8clocv1 16.20 16.24 16.26 T:aes128n8t8clocv2 16.21 16.25 16.37 T:aes128n12t8clocv2 16.23 16.34 16.90 T:aes128n12clocv1 16.55 16.55 16.58 T:aes128n12t8silcv3 16.55 16.57 16.77 T:aes128n8t8silcv2 16.62 16.68 16.71 T:aes128n12silcv1 16.65 16.68 16.83 T:aes128n8silcv1 16.60 16.73 16.75 T:aes128n12t8silcv2 17.73 17.74 17.76 T:aes128otrsv2 17.71 17.75 17.90 T:aes128otrsv1 17.77 17.81 19.22 T:aes128otrcv3 17.94 18.07 18.12 T:aes128otrsv3 18.50 18.52 18.66 T:seakeyakv1 18.38 18.65 19.50 T:oceankeyakv1 18.12 18.75 19.20 T:aeadaes128ocbtaglen128v1 21.45 21.50 21.53 T:aes128otrpv1 21.46 21.54 21.70 T:aes128otrpv2 21.33 21.62 21.91 T:aeadaes192ocbtaglen128v1 21.61 21.64 21.65 T:aes128otrpv3 22.53 22.62 22.63 T:aes256otrcv3 23.72 23.74 23.87 T:aes256otrsv1 23.65 23.77 23.90 T:aes256otrsv2 23.82 23.92 24.05 T:aes256otrsv3 24.39 24.51 24.55 T:colm0v1 24.41 24.61 24.81 T:colm127v1 24.18 24.77 25.32 T:aeadaes256ocbtaglen128v1 26.41 26.47 26.52 T:aeadaes128ocbtaglen64v1 26.39 26.48 26.52 T:aeadaes128ocbtaglen96v1 27.05 27.09 27.10 T:deoxysi128v141 27.12 27.15 27.18 T:aesjambuv1 27.37 27.40 27.40 T:aes256otrpv1 27.36 27.41 27.71 T:aes256otrpv2 27.49 27.51 27.56 T:aes256otrpv3 27.94 27.97 27.98 T:deoxysii128v141 28.70 28.73 28.73 T:deoxysi256v141 29.46 29.49 29.58 T:aeadaes192ocbtaglen64v1 29.47 29.53 29.57 T:proest256otrv1 29.62 29.67 29.70 T:aeadaes192ocbtaglen96v1 32.58 32.70 33.38 T:aeadaes256ocbtaglen96v1 32.71 32.76 32.80 T:aeadaes256ocbtaglen64v1 36.88 37.23 38.49 T:ketjesrv1 39.84 40.40 40.67 T:ketjesrv2 45.24 45.53 46.77 T:riverkeyakv1 76.70 76.80 76.85 T:proest128otrv1 79.98 80.00 80.36 T:ketjejrv1 96.11 96.27 96.45 T:aezv1 113.41 113.46 113.64 T:deoxysii256v141 127.63 128.07 128.11 T:twine80n6clocv1 129.66 129.72 130.11 T:aezv5 140.24 141.39 141.97 T:aezv4 149.32 150.60 151.10 T:ketjejrv2 172.88 172.90 173.68 T:deoxyseq128128v13 173.94 174.58 174.89 T:deoxysneq128128v1 174.65 174.92 175.08 T:deoxyseq128128v1 174.88 175.37 175.71 T:deoxysneq128128v13 181.60 181.88 181.97 T:twine80n6t4clocv2 181.92 183.25 187.37 T:twine80n6t4clocv3 203.25 205.79 206.09 T:aezv3 252.57 252.95 253.12 T:deoxyseq256128v13 253.36 253.62 256.73 T:deoxysneq256128v13 254.30 254.37 254.60 T:deoxyseq256128v1 253.84 254.51 254.57 T:deoxysneq256128v1 624.52 625.03 625.16 aes256gcmv1 691.62 691.97 692.77 T:acorn128 3572.32 3572.79 3574.87 T:present80n6silcv1 3576.05 3576.25 3576.50 T:present80n6t4silcv3 3576.40 3576.79 3576.99 T:present80n6t4silcv2 4594.31 4613.54 4621.03 T:led80n6silcv1 4600.39 4617.22 4628.22 T:led80n6t4silcv3 4605.34 4621.47 4626.68 T:led80n6t4silcv2

Cycles/byte for 0+long decrypt 25% 50% 75% aead 1.24 1.26 1.29 T:morus1280256v1 1.25 1.26 1.26 T:morus1280256v2 1.24 1.26 1.27 T:morus1280128v2 1.23 1.26 1.28 T:morus1280128v1 1.56 1.57 1.59 T:morus640128v2 1.56 1.57 1.59 T:morus640128v1 3.75 3.86 3.90 T:lunarkeyakv2 3.82 3.86 3.90 T:oceankeyakv2 4.34 4.36 4.36 T:norx6441v2 4.34 4.36 4.37 T:norx6441v3 4.65 4.73 4.80 T:lakekeyakv2 4.78 4.79 4.82 T:seakeyakv2 5.04 5.04 5.08 T:norx6444v2 5.03 5.04 5.05 T:norx6444v3 5.18 5.19 5.20 T:lakekeyakv1 5.21 5.22 5.22 T:norx6441v1 5.51 5.54 5.55 T:norx6444v1 5.82 5.82 5.85 T:tiaoxinv1 5.81 5.83 5.85 T:tiaoxinv2 6.50 6.51 6.51 T:norx6461v3 6.50 6.51 6.51 T:norx6461v2 6.93 6.93 6.94 T:norx3241v2 6.93 6.93 6.93 T:norx3241v3 7.19 7.24 7.26 T:aegis128l 7.23 7.27 7.33 T:aes256gcmv1 7.23 7.29 7.33 T:aes128gcmv1 7.66 7.81 8.04 T:ketjemajorv2 7.81 7.82 7.83 T:norx6461v1 8.29 8.32 8.34 T:norx3241v1 9.36 9.38 9.40 ascon128av12 9.71 9.74 9.76 T:riverkeyakv2 10.00 10.00 10.04 T:acorn128v2 9.97 10.01 10.02 T:ascon96v1 9.99 10.01 10.02 T:ascon128av11 10.02 10.03 10.05 T:aegis256 10.26 10.27 10.29 T:acorn128v3 10.34 10.35 10.35 T:norx3261v3 10.37 10.38 10.39 T:norx3261v2 10.37 10.38 10.61 T:ketjeminorv2 10.67 10.70 10.75 T:aegis128 12.47 12.47 12.47 T:norx3261v1 13.74 13.75 13.76 ascon128v12 15.11 15.12 15.14 T:ascon128v11 15.11 15.12 15.14 T:ascon128v1 15.71 15.73 15.75 aegis128l 16.10 16.11 16.48 T:aes128n8clocv1 16.18 16.20 16.21 T:aes128n12t8clocv3 16.21 16.26 16.94 T:aes128n12clocv1 16.30 16.34 16.36 T:aes128n8t8clocv2 16.33 16.36 16.45 T:aes128n12t8clocv2 16.55 16.57 16.58 T:aes128n12t8silcv3 16.57 16.58 16.74 T:aes128n8t8silcv2 16.55 16.64 16.68 T:aes128n12silcv1 16.54 16.68 16.94 T:aes128n8silcv1 16.73 16.74 16.76 T:aes128n12t8silcv2 17.72 17.75 17.77 T:aes128otrsv2 17.71 17.76 17.89 T:aes128otrsv1 17.78 17.83 19.29 T:aes128otrcv3 17.94 18.07 18.11 T:aes128otrsv3 18.48 18.51 18.67 T:seakeyakv1 17.96 18.61 19.19 T:aeadaes128ocbtaglen128v1 18.42 18.89 19.43 T:oceankeyakv1 21.46 21.52 21.54 T:aes128otrpv1 21.46 21.55 21.73 T:aes128otrpv2 21.62 21.64 21.64 T:aes128otrpv3 21.11 21.67 22.20 T:aeadaes192ocbtaglen128v1 22.42 22.44 22.47 T:aes256otrcv3 23.67 23.72 23.85 T:aes256otrsv1 23.67 23.73 23.89 T:aes256otrsv2 23.83 23.92 24.05 T:aes256otrsv3 24.50 24.57 24.66 T:colm127v1 24.46 24.58 24.72 T:colm0v1 24.12 24.75 25.28 T:aeadaes256ocbtaglen128v1 26.18 26.21 26.24 T:deoxysi128v141 26.45 26.47 26.49 T:aeadaes128ocbtaglen64v1 26.40 26.52 26.59 T:aeadaes128ocbtaglen96v1 27.11 27.12 27.16 T:aesjambuv1 27.37 27.39 27.40 T:aes256otrpv1 27.36 27.40 27.70 T:aes256otrpv2 27.47 27.50 27.57 T:aes256otrpv3 27.86 27.91 27.94 T:deoxysii128v141 28.46 28.47 28.49 T:deoxysi256v141 29.48 29.52 29.52 T:proest256otrv1 29.51 29.53 29.63 T:aeadaes192ocbtaglen64v1 29.67 29.69 29.73 T:aeadaes192ocbtaglen96v1 32.61 32.79 33.40 T:aeadaes256ocbtaglen96v1 32.75 32.81 32.84 T:aeadaes256ocbtaglen64v1 40.98 40.99 41.05 T:ketjesrv2 40.47 41.66 42.16 T:ketjesrv1 45.26 45.70 47.02 T:riverkeyakv1 76.75 76.83 76.85 T:proest128otrv1 79.96 80.01 80.35 T:ketjejrv1 96.22 96.41 96.45 T:aezv1 113.08 113.17 113.36 T:deoxysii256v141 127.80 128.44 128.48 T:twine80n6clocv1 129.51 129.70 130.05 T:aezv5 140.27 141.00 141.46 T:aezv4 144.00 146.00 150.94 T:ketjejrv2 172.78 172.92 173.03 T:deoxyseq128128v13 174.19 174.56 174.84 T:deoxysneq128128v1 173.64 174.84 174.87 T:deoxysneq128128v13 174.74 175.53 175.99 T:deoxyseq128128v1 181.60 181.89 181.97 T:twine80n6t4clocv2 181.96 183.24 187.38 T:twine80n6t4clocv3 202.34 203.66 204.48 T:aezv3 252.08 252.29 253.27 T:deoxyseq256128v13 252.92 253.90 255.82 T:deoxysneq256128v13 253.64 253.95 254.10 T:deoxysneq256128v1 254.35 254.69 254.78 T:deoxyseq256128v1 625.15 625.60 625.81 aes256gcmv1 704.52 704.85 705.00 T:acorn128 3572.46 3573.26 3573.71 T:present80n6silcv1 3575.34 3576.51 3592.55 T:present80n6t4silcv2 3576.03 3576.53 3576.82 T:present80n6t4silcv3 4612.84 4615.66 4618.17 T:led80n6silcv1 4615.04 4619.54 4668.96 T:led80n6t4silcv3 4629.39 4631.57 4652.63 T:led80n6t4silcv2

Cycles/byte for 0+long forgery 25% 50% 75% aead 1.25 1.26 1.26 T:morus1280256v1 1.25 1.26 1.27 T:morus1280256v2 1.25 1.26 1.27 T:morus1280128v2 1.25 1.26 1.26 T:morus1280128v1 1.57 1.57 1.57 T:morus640128v2 1.57 1.58 1.59 T:morus640128v1 3.85 3.86 3.87 T:oceankeyakv2 3.81 3.87 3.88 T:lunarkeyakv2 4.36 4.36 4.36 T:norx6441v2 4.35 4.36 4.38 T:norx6441v3 4.67 4.73 4.76 T:lakekeyakv2 4.77 4.78 4.84 T:seakeyakv2 5.03 5.04 5.08 T:norx6444v2 5.04 5.04 5.06 T:norx6444v3 5.18 5.19 5.21 T:lakekeyakv1 5.22 5.22 5.22 T:norx6441v1 5.51 5.54 5.55 T:norx6444v1 5.80 5.83 5.84 T:tiaoxinv1 5.81 5.84 5.85 T:tiaoxinv2 6.51 6.51 6.51 T:norx6461v3 6.51 6.51 6.51 T:norx6461v2 6.93 6.93 6.95 T:norx3241v2 6.93 6.93 6.93 T:norx3241v3 7.17 7.24 7.26 T:aegis128l 7.25 7.30 7.31 T:aes128gcmv1 7.21 7.31 7.35 T:aes256gcmv1 7.65 7.79 8.04 T:ketjemajorv2 7.81 7.82 7.82 T:norx6461v1 8.31 8.32 8.32 T:norx3241v1 9.38 9.38 9.39 ascon128av12 9.72 9.74 9.75 T:riverkeyakv2 9.99 10.00 10.04 T:acorn128v2 9.98 10.01 10.02 T:ascon96v1 9.98 10.01 10.02 T:ascon128av11 9.99 10.02 10.03 T:aegis256 10.25 10.28 10.28 T:acorn128v3 10.34 10.35 10.35 T:norx3261v3 10.37 10.38 10.39 T:norx3261v2 10.37 10.40 10.61 T:ketjeminorv2 10.65 10.74 10.76 T:aegis128 12.47 12.47 12.48 T:norx3261v1 13.74 13.75 13.76 ascon128v12 15.12 15.12 15.14 T:ascon128v1 15.12 15.12 15.14 T:ascon128v11 15.69 15.75 15.75 aegis128l 16.09 16.12 16.49 T:aes128n8clocv1 16.19 16.20 16.22 T:aes128n12t8clocv3 16.21 16.26 16.94 T:aes128n12clocv1 16.32 16.34 16.35 T:aes128n8t8clocv2 16.34 16.37 16.48 T:aes128n12t8clocv2 16.55 16.57 16.58 T:aes128n12t8silcv3 16.57 16.58 16.74 T:aes128n8t8silcv2 16.54 16.68 16.69 T:aes128n12silcv1 16.55 16.68 16.95 T:aes128n8silcv1 16.62 16.74 16.74 T:aes128n12t8silcv2 17.72 17.74 17.76 T:aes128otrsv2 17.71 17.74 17.88 T:aes128otrsv1 17.78 17.81 19.28 T:aes128otrcv3 17.94 18.06 18.11 T:aes128otrsv3 18.45 18.51 18.70 T:seakeyakv1 18.08 18.59 19.17 T:aeadaes128ocbtaglen128v1 18.44 18.86 19.50 T:oceankeyakv1 21.47 21.49 21.53 T:aes128otrpv1 21.47 21.52 21.70 T:aes128otrpv2 21.62 21.64 21.65 T:aes128otrpv3 21.43 21.69 22.07 T:aeadaes192ocbtaglen128v1 22.42 22.46 22.47 T:aes256otrcv3 23.67 23.72 23.85 T:aes256otrsv1 23.67 23.74 23.89 T:aes256otrsv2 23.82 23.92 24.06 T:aes256otrsv3 24.50 24.57 24.62 T:colm127v1 24.46 24.60 24.71 T:colm0v1 24.28 25.12 25.32 T:aeadaes256ocbtaglen128v1 26.17 26.20 26.22 T:deoxysi128v141 26.45 26.47 26.49 T:aeadaes128ocbtaglen64v1 26.39 26.52 26.53 T:aeadaes128ocbtaglen96v1 27.12 27.12 27.16 T:aesjambuv1 27.38 27.39 27.41 T:aes256otrpv1 27.38 27.39 27.70 T:aes256otrpv2 27.47 27.50 27.58 T:aes256otrpv3 27.86 27.92 27.93 T:deoxysii128v141 28.46 28.48 28.49 T:deoxysi256v141 29.47 29.50 29.56 T:aeadaes192ocbtaglen64v1 29.48 29.52 29.52 T:proest256otrv1 29.62 29.66 29.69 T:aeadaes192ocbtaglen96v1 32.62 32.68 33.38 T:aeadaes256ocbtaglen96v1 32.76 33.05 33.07 T:aeadaes256ocbtaglen64v1 40.90 40.99 41.02 T:ketjesrv2 40.48 41.69 42.17 T:ketjesrv1 44.90 45.74 46.81 T:riverkeyakv1 76.71 76.79 76.86 T:proest128otrv1 79.98 80.00 80.36 T:ketjejrv1 96.15 96.30 96.50 T:aezv1 113.11 113.32 113.51 T:deoxysii256v141 127.55 127.84 128.48 T:twine80n6clocv1 129.69 129.85 130.04 T:aezv5 140.84 141.01 141.45 T:aezv4 144.34 146.00 150.92 T:ketjejrv2 172.77 173.00 173.03 T:deoxyseq128128v13 174.21 174.56 174.85 T:deoxysneq128128v1 173.99 174.85 174.88 T:deoxysneq128128v13 174.78 175.54 175.97 T:deoxyseq128128v1 181.62 181.89 181.97 T:twine80n6t4clocv2 181.96 183.24 187.37 T:twine80n6t4clocv3 202.48 203.66 204.49 T:aezv3 252.08 252.41 253.26 T:deoxyseq256128v13 252.95 253.91 255.82 T:deoxysneq256128v13 253.65 254.01 254.10 T:deoxysneq256128v1 254.36 254.54 254.80 T:deoxyseq256128v1 625.13 625.61 625.95 aes256gcmv1 704.33 704.83 704.95 T:acorn128 3572.54 3573.04 3573.58 T:present80n6silcv1 3576.13 3576.50 3576.87 T:present80n6t4silcv3 3575.36 3576.56 3592.53 T:present80n6t4silcv2 4614.14 4616.72 4618.90 T:led80n6silcv1 4614.09 4619.07 4650.55 T:led80n6t4silcv3 4630.48 4633.78 4651.58 T:led80n6t4silcv2

Cycles/byte for 1536+1536 encrypt 25% 50% 75% aead 1.76 1.76 1.77 T:morus1280256v1 1.76 1.76 1.77 T:morus640128v2 1.76 1.77 1.78 T:morus1280128v1 1.82 1.82 1.82 T:morus1280128v2 1.79 1.82 1.85 T:morus1280256v2 1.86 1.87 1.87 T:morus640128v1 5.07 5.07 5.07 T:norx6441v3 5.10 5.11 5.11 T:norx6441v2 5.82 5.84 5.85 T:lakekeyakv2 5.87 5.87 5.89 T:norx6441v1 6.22 6.26 6.28 T:lakekeyakv1 7.14 7.17 7.22 T:seakeyakv2 7.40 7.41 7.44 T:norx6444v3 7.42 7.42 7.46 T:norx6444v2 7.47 7.48 7.48 T:norx3241v3 7.47 7.49 7.52 T:norx3241v2 7.55 7.55 7.57 T:norx6461v2 7.56 7.59 7.59 T:norx6461v3 8.02 8.03 8.03 T:norx6444v1 8.13 8.13 8.15 T:tiaoxinv2 8.15 8.15 8.16 T:tiaoxinv1 8.68 8.69 8.70 T:aegis128l 8.78 8.79 8.81 T:norx6461v1 8.79 8.79 8.82 T:norx3241v1 9.03 9.04 9.10 T:oceankeyakv2 9.97 9.98 9.99 ascon128av12 10.23 10.23 10.25 T:ascon128av11 10.26 10.26 10.28 T:ascon96v1 11.20 11.20 11.21 T:norx3261v2 11.20 11.20 11.21 T:norx3261v3 11.20 11.21 11.21 T:riverkeyakv2 11.65 11.66 11.67 T:acorn128v2 11.71 11.72 11.72 T:aegis256 11.73 11.74 11.75 T:acorn128v3 12.03 12.04 12.04 T:aegis128 12.36 12.65 12.83 T:ketjemajorv2 13.22 13.23 13.24 T:norx3261v1 13.55 13.74 13.76 T:ketjeminorv2 13.84 13.84 13.85 ascon128v12 15.31 15.31 15.35 T:lunarkeyakv2 15.47 15.47 15.48 T:ascon128v1 15.47 15.47 15.48 T:ascon128v11 17.28 17.31 17.34 T:aes128gcmv1 18.82 19.02 19.18 T:aes128otrcv3 19.98 20.08 20.38 T:aeadaes128ocbtaglen128v1 20.29 20.30 20.31 T:aes128otrsv2 20.28 20.35 20.39 T:aes128otrsv1 20.45 20.48 20.52 T:aes256gcmv1 21.20 21.21 21.21 T:aes128otrsv3 22.09 22.09 22.15 T:aes128otrpv1 22.14 22.31 22.44 T:aes128otrpv2 22.47 22.48 22.49 aegis128l 22.65 22.72 22.95 T:aeadaes192ocbtaglen128v1 22.96 23.00 23.21 T:aes128otrpv3 22.98 23.01 23.06 T:seakeyakv1 23.79 23.83 23.86 T:aes256otrcv3 24.35 24.36 24.38 T:aes128n12t8clocv3 24.61 24.65 24.88 T:aes128n8clocv1 24.98 24.99 25.00 T:aes128n8t8clocv2 25.01 25.02 25.05 T:aes128n12t8clocv2 25.19 25.19 25.66 T:aes128n12clocv1 25.60 25.63 25.69 T:aes128n12t8silcv3 25.71 25.73 25.96 T:aes128n8silcv1 25.65 25.77 25.92 T:aes128n12silcv1 25.76 25.79 25.93 T:aes128n12t8silcv2 25.75 25.81 25.83 T:aes128n8t8silcv2 25.95 26.01 26.11 T:aes256otrsv2 25.94 26.06 26.08 T:aes256otrsv1 26.35 26.36 26.67 T:aeadaes256ocbtaglen128v1 26.88 26.93 26.95 T:aes256otrsv3 27.03 27.04 27.05 T:deoxysi128v141 27.75 27.76 27.78 T:aes256otrpv1 27.75 27.76 28.42 T:aes256otrpv2 27.81 27.82 27.84 T:aesjambuv1 28.52 28.56 28.62 T:aes256otrpv3 29.11 29.16 29.75 T:oceankeyakv1 29.53 29.55 30.18 T:aeadaes128ocbtaglen64v1 29.50 29.64 29.74 T:aeadaes128ocbtaglen96v1 29.86 29.87 29.88 T:deoxysi256v141 31.94 31.95 31.97 T:proest256otrv1 32.53 32.54 32.69 T:aeadaes192ocbtaglen96v1 32.64 32.65 32.78 T:aeadaes192ocbtaglen64v1 35.70 35.71 35.75 T:aeadaes256ocbtaglen64v1 35.69 35.82 36.03 T:aeadaes256ocbtaglen96v1 42.89 42.94 43.02 T:colm0v1 42.93 42.94 43.34 T:ketjesrv1 43.18 43.23 43.29 T:colm127v1 44.30 44.45 47.88 T:ketjesrv2 45.52 45.53 45.53 T:deoxysii128v141 50.43 50.85 51.02 T:riverkeyakv1 81.77 81.77 81.78 T:proest128otrv1 87.42 87.54 87.60 T:ketjejrv1 126.27 126.71 126.89 T:aezv5 134.82 134.93 135.00 T:aezv4 154.87 154.94 158.25 T:ketjejrv2 172.25 172.50 172.74 T:deoxysii256v141 175.00 175.07 175.37 T:deoxysneq128128v1 175.03 175.26 175.81 T:deoxysneq128128v13 187.29 187.89 188.00 T:aezv1 191.37 192.17 192.18 T:twine80n6clocv1 254.19 254.68 256.63 T:deoxysneq256128v13 254.72 254.84 255.44 T:deoxysneq256128v1 258.25 259.55 260.42 T:aezv3 264.25 264.33 264.58 T:deoxyseq128128v1 265.34 265.42 265.57 T:deoxyseq128128v13 275.43 275.74 276.04 T:twine80n6t4clocv2 276.17 283.85 284.07 T:twine80n6t4clocv3 383.62 383.87 384.12 T:deoxyseq256128v1 385.02 386.42 386.95 T:deoxyseq256128v13 783.32 783.47 783.74 T:acorn128 5387.69 5387.84 5392.48 T:present80n6silcv1 5389.55 5389.60 5389.68 T:present80n6t4silcv3 5389.49 5389.64 5392.65 T:present80n6t4silcv2 6901.88 6905.25 6906.30 T:led80n6silcv1 6896.56 6905.60 6914.26 T:led80n6t4silcv3 6901.81 6916.08 6919.12 T:led80n6t4silcv2 13186.18 13186.31 13186.50 aes256gcmv1

Cycles/byte for 1536+1536 decrypt 25% 50% 75% aead 1.73 1.74 1.76 T:morus1280128v1 1.74 1.74 1.75 T:morus1280256v1 1.75 1.76 1.79 T:morus1280128v2 1.77 1.78 1.78 T:morus1280256v2 1.81 1.81 1.81 T:morus640128v1 1.82 1.82 1.83 T:morus640128v2 5.14 5.14 5.15 T:norx6441v3 5.15 5.17 5.17 T:norx6441v2 5.81 5.83 5.85 T:lakekeyakv2 5.90 5.90 5.94 T:norx6441v1 6.19 6.22 6.24 T:lakekeyakv1 7.13 7.15 7.24 T:seakeyakv2 7.37 7.38 7.40 T:norx3241v2 7.41 7.41 7.41 T:norx3241v3 7.44 7.45 7.48 T:norx6444v3 7.43 7.46 7.48 T:norx6444v2 7.62 7.62 7.64 T:norx6461v2 7.65 7.66 7.67 T:norx6461v3 8.01 8.01 8.05 T:norx6444v1 8.66 8.67 8.68 T:aegis128l 8.75 8.75 8.77 T:tiaoxinv2 8.75 8.76 8.78 T:norx3241v1 8.75 8.77 8.80 T:tiaoxinv1 8.81 8.81 8.83 T:norx6461v1 9.07 9.08 9.14 T:oceankeyakv2 9.78 9.78 9.79 ascon128av12 10.26 10.26 10.27 T:ascon128av11 10.30 10.30 10.31 T:ascon96v1 11.08 11.09 11.09 T:norx3261v3 11.13 11.13 11.15 T:norx3261v2 11.25 11.30 11.32 T:riverkeyakv2 11.58 11.59 11.59 T:aegis256 11.83 11.84 11.86 T:acorn128v3 11.85 11.91 11.91 T:aegis128 11.94 11.94 11.96 T:acorn128v2 12.24 12.29 12.44 T:ketjemajorv2 13.10 13.10 13.15 T:norx3261v1 13.62 13.64 13.65 T:ketjeminorv2 14.03 14.03 14.03 ascon128v12 15.25 15.30 15.35 T:lunarkeyakv2 15.47 15.47 15.49 T:ascon128v1 15.47 15.47 15.48 T:ascon128v11 17.27 17.28 17.31 T:aes128gcmv1 18.84 18.86 20.21 T:aes128otrcv3 20.05 20.14 20.43 T:aeadaes128ocbtaglen128v1 20.32 20.33 20.36 T:aes128otrsv2 20.32 20.39 20.42 T:aes128otrsv1 20.47 20.56 20.61 T:aes256gcmv1 20.69 20.70 20.89 T:aes128otrsv3 22.11 22.13 22.25 T:aes128otrpv2 22.13 22.15 22.36 T:aes128otrpv1 22.38 22.49 22.52 T:aes128otrpv3 22.64 22.64 22.66 aegis128l 22.66 22.70 22.93 T:aeadaes192ocbtaglen128v1 23.07 23.07 23.16 T:seakeyakv1 23.76 23.79 24.94 T:aes256otrcv3 25.28 25.29 25.31 T:aes128n8t8clocv2 25.29 25.30 25.33 T:aes128n12t8clocv2 25.32 25.44 26.58 T:aes128n12clocv1 25.62 25.66 25.71 T:aes128n12t8silcv2 25.62 25.71 25.73 T:aes128n12t8silcv3 25.62 25.80 25.91 T:aes128n8t8silcv2 25.88 25.91 26.26 T:aes128n8silcv1 26.01 26.03 26.12 T:aes256otrsv1 26.02 26.04 26.13 T:aes256otrsv2 26.10 26.10 26.12 T:aes128n12t8clocv3 25.98 26.16 26.23 T:aes128n8clocv1 26.05 26.26 26.29 T:aes128n12silcv1 26.25 26.28 26.43 T:aes256otrsv3 26.59 26.89 27.30 T:aeadaes256ocbtaglen128v1 27.76 27.77 28.60 T:aes256otrpv2 27.76 27.78 27.83 T:aes256otrpv1 27.94 27.96 27.97 T:aesjambuv1 28.03 28.15 28.18 T:aes256otrpv3 29.16 29.21 29.87 T:oceankeyakv1 29.56 29.59 29.69 T:aeadaes128ocbtaglen64v1 29.61 29.63 29.65 T:aeadaes128ocbtaglen96v1 30.00 30.02 30.03 T:deoxysi128v141 31.85 31.85 31.91 T:proest256otrv1 32.69 32.71 32.76 T:aeadaes192ocbtaglen64v1 32.70 32.73 32.76 T:aeadaes192ocbtaglen96v1 33.30 33.31 33.34 T:deoxysi256v141 35.84 36.04 36.15 T:aeadaes256ocbtaglen96v1 35.95 36.23 36.27 T:aeadaes256ocbtaglen64v1 43.62 43.99 44.81 T:ketjesrv1 44.94 44.95 44.96 T:colm0v1 45.05 45.13 45.42 T:ketjesrv2 45.18 45.18 45.21 T:colm127v1 45.37 45.37 45.37 T:deoxysii128v141 50.54 51.11 51.17 T:riverkeyakv1 79.39 79.43 79.45 T:proest128otrv1 86.82 87.03 87.08 T:ketjejrv1 125.93 126.43 126.58 T:aezv5 134.46 134.59 134.65 T:aezv4 154.21 154.68 159.03 T:ketjejrv2 171.89 172.07 172.65 T:deoxysii256v141 186.98 187.46 187.76 T:aezv1 191.86 191.96 192.03 T:twine80n6clocv1 199.19 199.28 200.22 T:deoxysneq128128v13 199.23 199.34 199.38 T:deoxysneq128128v1 258.84 259.59 260.16 T:aezv3 265.89 265.97 266.11 T:deoxyseq128128v13 274.91 275.14 275.32 T:twine80n6t4clocv2 281.67 281.96 282.30 T:deoxysneq256128v1 281.72 282.08 284.30 T:deoxysneq256128v13 275.77 283.13 283.37 T:twine80n6t4clocv3 311.80 312.54 312.73 T:deoxyseq128128v1 385.32 385.59 385.85 T:deoxyseq256128v13 436.29 436.87 436.99 T:deoxyseq256128v1 787.50 787.57 787.72 T:acorn128 5386.22 5386.44 5386.56 T:present80n6silcv1 5388.51 5388.69 5396.10 T:present80n6t4silcv2 5388.90 5392.16 5392.34 T:present80n6t4silcv3 6896.39 6897.43 6904.23 T:led80n6silcv1 6908.43 6913.60 6927.02 T:led80n6t4silcv3 6915.31 6917.77 6920.10 T:led80n6t4silcv2 13186.90 13187.04 13187.41 aes256gcmv1

Cycles/byte for 1536+1536 forgery 25% 50% 75% aead 1.73 1.74 1.74 T:morus1280128v1 1.74 1.74 1.74 T:morus1280256v1 1.75 1.76 1.76 T:morus1280128v2 1.77 1.78 1.78 T:morus1280256v2 1.81 1.81 1.82 T:morus640128v1 1.82 1.82 1.82 T:morus640128v2 5.14 5.14 5.14 T:norx6441v3 5.14 5.17 5.17 T:norx6441v2 5.84 5.89 5.89 T:lakekeyakv2 5.90 5.90 5.90 T:norx6441v1 6.24 6.25 6.33 T:lakekeyakv1 7.22 7.24 7.26 T:seakeyakv2 7.37 7.38 7.40 T:norx3241v2 7.41 7.41 7.41 T:norx3241v3 7.49 7.50 7.51 T:norx6444v3 7.48 7.50 7.53 T:norx6444v2 7.62 7.62 7.63 T:norx6461v2 7.63 7.66 7.66 T:norx6461v3 8.05 8.06 8.07 T:norx6444v1 8.70 8.72 8.72 T:tiaoxinv2 8.72 8.73 8.74 T:aegis128l 8.72 8.75 8.77 T:tiaoxinv1 8.75 8.75 8.77 T:norx3241v1 8.81 8.81 8.82 T:norx6461v1 9.12 9.13 9.14 T:oceankeyakv2 9.78 9.78 9.79 ascon128av12 10.26 10.26 10.27 T:ascon128av11 10.29 10.29 10.30 T:ascon96v1 11.08 11.08 11.09 T:norx3261v3 11.13 11.13 11.13 T:norx3261v2 11.34 11.34 11.38 T:riverkeyakv2 11.63 11.64 11.65 T:aegis256 11.82 11.83 11.85 T:acorn128v3 11.86 11.91 11.91 T:aegis128 11.93 11.94 11.94 T:acorn128v2 12.27 12.34 12.50 T:ketjemajorv2 13.10 13.10 13.10 T:norx3261v1 13.68 13.70 13.71 T:ketjeminorv2 14.03 14.03 14.03 ascon128v12 15.31 15.33 15.35 T:lunarkeyakv2 15.47 15.47 15.48 T:ascon128v11 15.47 15.47 15.48 T:ascon128v1 17.26 17.28 17.32 T:aes128gcmv1 18.83 18.87 19.13 T:aes128otrcv3 20.03 20.08 20.49 T:aeadaes128ocbtaglen128v1 20.37 20.38 20.40 T:aes128otrsv2 20.38 20.40 20.44 T:aes128otrsv1 20.41 20.47 20.59 T:aes256gcmv1 20.69 20.76 20.95 T:aes128otrsv3 22.16 22.19 22.31 T:aes128otrpv2 22.18 22.19 22.42 T:aes128otrpv1 22.45 22.54 22.57 T:aes128otrpv3 22.68 22.71 23.00 T:aeadaes192ocbtaglen128v1 22.69 22.71 22.71 aegis128l 23.12 23.12 23.14 T:seakeyakv1 23.77 23.80 24.94 T:aes256otrcv3 25.27 25.28 25.29 T:aes128n8t8clocv2 25.28 25.29 25.30 T:aes128n12t8clocv2 25.41 25.42 26.58 T:aes128n12clocv1 25.62 25.63 25.71 T:aes128n12t8silcv2 25.60 25.69 25.72 T:aes128n12t8silcv3 25.69 25.80 25.92 T:aes128n8t8silcv2 25.87 25.89 26.25 T:aes128n8silcv1 26.07 26.09 26.18 T:aes256otrsv1 26.09 26.09 26.10 T:aes128n12t8clocv3 26.07 26.10 26.18 T:aes256otrsv2 25.97 26.13 26.22 T:aes128n8clocv1 26.06 26.16 26.30 T:aes128n12silcv1 26.31 26.32 26.50 T:aes256otrsv3 26.53 26.81 27.05 T:aeadaes256ocbtaglen128v1 27.83 27.84 28.66 T:aes256otrpv2 27.82 27.84 27.89 T:aes256otrpv1 27.94 27.94 27.98 T:aesjambuv1 28.08 28.18 28.23 T:aes256otrpv3 29.16 29.24 30.73 T:oceankeyakv1 29.55 29.56 29.68 T:aeadaes128ocbtaglen64v1 29.56 29.61 29.63 T:aeadaes128ocbtaglen96v1 30.05 30.06 30.07 T:deoxysi128v141 31.82 31.86 31.91 T:proest256otrv1 32.65 32.67 32.68 T:aeadaes192ocbtaglen64v1 32.68 32.68 32.69 T:aeadaes192ocbtaglen96v1 33.35 33.36 33.36 T:deoxysi256v141 35.84 35.85 36.12 T:aeadaes256ocbtaglen96v1 35.91 36.22 36.40 T:aeadaes256ocbtaglen64v1 43.70 44.04 44.89 T:ketjesrv1 44.89 44.94 44.96 T:colm0v1 45.09 45.17 45.46 T:ketjesrv2 45.16 45.18 45.19 T:colm127v1 45.42 45.43 45.44 T:deoxysii128v141 51.01 51.20 51.23 T:riverkeyakv1 79.36 79.42 79.43 T:proest128otrv1 86.72 87.08 87.14 T:ketjejrv1 125.67 126.33 126.50 T:aezv5 134.42 134.51 134.54 T:aezv4 154.03 154.75 160.32 T:ketjejrv2 171.93 172.11 172.69 T:deoxysii256v141 187.11 187.44 187.68 T:aezv1 191.86 192.08 193.86 T:twine80n6clocv1 199.23 199.32 199.39 T:deoxysneq128128v1 199.24 199.42 200.26 T:deoxysneq128128v13 258.83 259.55 260.05 T:aezv3 265.94 266.02 266.14 T:deoxyseq128128v13 274.90 275.09 275.32 T:twine80n6t4clocv2 281.66 281.71 282.29 T:deoxysneq256128v1 281.79 282.09 284.35 T:deoxysneq256128v13 275.69 283.11 283.37 T:twine80n6t4clocv3 311.90 312.34 312.74 T:deoxyseq128128v1 385.37 385.63 385.86 T:deoxyseq256128v13 436.40 436.86 436.96 T:deoxyseq256128v1 787.53 787.55 787.71 T:acorn128 885.05 885.16 885.31 aes256gcmv1 5386.18 5386.34 5386.53 T:present80n6silcv1 5388.45 5388.60 5395.91 T:present80n6t4silcv2 5388.86 5392.22 5392.40 T:present80n6t4silcv3 6895.19 6898.07 6902.51 T:led80n6silcv1 6906.41 6916.01 6929.11 T:led80n6t4silcv3 6892.94 6919.77 6940.10 T:led80n6t4silcv2

Cycles/byte for 64+64 encrypt 25% 50% 75% aead 6.61 6.62 7.13 T:morus640128v1 7.00 7.06 7.39 T:morus640128v2 9.13 9.16 9.89 T:morus1280128v1 9.31 9.32 10.20 T:morus1280256v1 9.53 9.55 10.39 T:morus1280128v2 9.59 9.60 10.62 T:morus1280256v2 14.84 14.84 15.55 ascon128av12 15.25 15.25 16.01 T:ascon128av11 15.37 15.37 16.34 T:ascon96v1 17.29 17.30 18.45 T:norx6441v1 17.58 17.58 18.60 T:norx6441v2 17.70 17.70 18.54 T:norx6441v3 18.21 18.21 19.34 T:norx3241v1 18.34 18.47 19.50 T:lakekeyakv1 18.41 18.51 19.03 ascon128v12 18.94 18.97 19.82 T:norx3241v2 18.80 18.98 19.47 T:norx3241v3 20.30 20.32 21.12 T:ascon128v1 20.32 20.34 21.33 T:ascon128v11 25.48 25.48 26.81 T:norx6461v1 25.71 25.77 26.62 T:norx6461v2 25.82 25.83 26.91 T:norx6461v3 25.52 25.84 26.39 T:lakekeyakv2 26.11 26.18 27.52 T:riverkeyakv2 27.78 27.80 28.94 T:norx3261v2 27.80 27.81 28.63 T:norx3261v3 27.63 28.03 29.47 T:norx3261v1 29.39 29.46 30.11 T:aes128n8t8clocv2 29.63 29.70 30.30 T:aes128n12t8clocv2 30.30 30.35 31.72 T:aes128n12t8clocv3 31.02 31.48 32.07 T:aes128n12clocv1 31.34 31.53 31.91 T:aes128n8clocv1 33.88 33.93 34.55 T:aes128n8t8silcv2 34.02 34.12 34.62 T:aes128n12t8silcv2 34.13 34.15 34.88 T:aes128n12t8silcv3 34.38 34.42 35.20 T:aegis128 35.50 35.60 36.17 T:aes128n8silcv1 35.70 35.98 36.35 T:aes128n12silcv1 37.35 37.39 37.95 T:aesjambuv1 38.23 38.45 38.70 T:aegis128l 39.41 39.55 40.38 T:aes128gcmv1 39.59 39.78 40.08 T:aes128otrsv2 39.86 39.89 41.34 T:aes128otrpv1 39.85 39.94 40.48 T:aegis256 39.84 40.05 40.41 T:aes128otrsv1 40.18 40.29 40.72 T:aes128otrpv2 41.48 41.49 42.30 T:aes128otrsv3 41.38 41.56 42.41 T:aes128otrcv3 41.50 41.56 42.17 T:aes128otrpv3 43.24 43.36 44.33 T:aeadaes128ocbtaglen64v1 43.42 43.84 44.11 T:aeadaes128ocbtaglen96v1 43.77 43.84 44.95 T:aes256gcmv1 44.81 45.19 47.52 T:aeadaes192ocbtaglen128v1 46.73 46.78 46.99 T:acorn128v2 46.86 47.07 47.29 T:ketjeminorv2 47.38 47.47 48.70 T:aeadaes192ocbtaglen96v1 47.80 48.03 48.91 T:aeadaes192ocbtaglen64v1 48.57 48.75 48.84 T:acorn128v3 49.93 50.09 50.27 T:aes256otrsv2 50.16 50.20 50.44 T:aes256otrsv1 50.53 50.56 51.09 T:aes256otrpv1 49.43? 50.67? 56.21? T:aeadaes128ocbtaglen128v1 50.44 50.88 50.95 T:aes256otrpv2 51.19 51.25 51.28 T:deoxysi128v141 51.80 51.87 52.37 T:aes256otrsv3 52.08 52.27 52.41 T:aes256otrpv3 53.38 53.48 54.36 T:aeadaes256ocbtaglen64v1 53.83 53.91 54.12 T:aes256otrcv3 53.30 53.98 54.45 T:aeadaes256ocbtaglen96v1 55.53 55.57 55.91 T:norx6444v2 55.73 55.73 56.10 T:norx6444v3 58.20 58.20 58.68 T:tiaoxinv2 58.59 58.61 59.09 T:tiaoxinv1 59.31 59.39 60.14 T:norx6444v1 60.59? 61.14? 67.87? T:aeadaes256ocbtaglen128v1 62.56 62.61 64.10 T:seakeyakv2 65.40 65.41 67.58 T:colm127v1 65.74 66.11 68.46 T:colm0v1 66.52 66.55 66.98 T:ketjesrv1 71.78 71.84 72.22 T:deoxysi256v141 74.31 74.80 75.44 T:ketjesrv2 75.77 75.79 76.09 T:deoxysii128v141 79.38 79.40 79.73 aegis128l 79.28 79.54 79.98 T:ketjemajorv2 90.78 91.51 92.82 T:riverkeyakv1 94.28 94.34 94.45 T:proest256otrv1 94.48 94.84 95.95 T:oceankeyakv2 112.48 112.65 112.88 T:ketjejrv1 115.09 115.77 118.14 T:aezv4 121.97 122.18 126.17 T:aezv5 158.76 158.89 159.16 T:proest128otrv1 175.77 176.20 176.99 T:seakeyakv1 182.41 183.01 184.18 T:aezv1 192.08 192.16 192.66 T:deoxysii256v141 196.68 196.98 197.97 T:deoxysneq128128v1 196.72 197.02 197.49 T:deoxysneq128128v13 204.54 205.24 210.80 T:ketjejrv2 210.78 211.61 211.88 T:twine80n6clocv1 244.53 244.60 245.93 T:lunarkeyakv2 285.02 285.10 286.48 T:deoxysneq256128v13 285.69 285.70 286.23 T:deoxysneq256128v1 295.00 295.72 295.84 T:twine80n6t4clocv2 296.47 303.57 304.28 T:twine80n6t4clocv3 306.04 306.48 306.69 T:deoxyseq128128v1 318.93 320.25 327.06 T:oceankeyakv1 322.16 324.57 325.33 T:aezv3 327.76 328.87 329.05 T:deoxyseq128128v13 444.13 444.31 445.45 T:deoxyseq256128v1 476.10 476.34 476.90 T:deoxyseq256128v13 2746.92 2749.95 2752.52 T:acorn128 6030.77 6031.07 6036.01 T:present80n6t4silcv3 6030.35 6034.02 6035.73 T:present80n6t4silcv2 6029.93 6034.40 6037.43 T:present80n6silcv1 7156.09 7190.88 7376.81 T:led80n6t4silcv3 7165.21 7191.47 7387.75 T:led80n6t4silcv2 7161.51 7192.12 7390.39 T:led80n6silcv1 19156.34 19156.82 19159.76 aes256gcmv1

Cycles/byte for 64+64 decrypt 25% 50% 75% aead 7.52 7.66 7.93 T:morus640128v1 7.88 7.88 8.59 T:morus640128v2 10.39 10.48 10.98 T:morus1280128v1 10.47 10.51 10.84 T:morus1280256v1 10.83 10.91 11.63 T:morus1280128v2 11.38 11.52 11.98 T:morus1280256v2 14.58 14.61 15.05 ascon128av12 15.37 15.37 16.39 T:ascon128av11 15.42 15.48 16.38 T:ascon96v1 17.50 17.50 18.16 T:norx6441v1 18.27 18.27 18.39 T:norx6441v3 18.27 18.27 19.43 T:norx6441v2 18.22 18.32 19.10 T:lakekeyakv1 18.36 18.37 19.26 T:norx3241v1 18.69 18.77 19.47 ascon128v12 18.85 18.88 18.91 T:norx3241v2 18.93 18.97 19.17 T:norx3241v3 20.26 20.29 20.76 T:ascon128v1 20.26 20.29 20.88 T:ascon128v11 25.38 25.41 25.70 T:lakekeyakv2 25.69 25.75 26.26 T:norx6461v1 26.08 26.10 27.32 T:riverkeyakv2 26.43 26.48 26.78 T:norx6461v2 26.53 26.55 27.09 T:norx6461v3 27.81 27.81 28.70 T:norx3261v1 27.90 27.91 27.99 T:norx3261v3 27.99 28.19 28.24 T:norx3261v2 29.83 29.99 30.58 T:aes128n8t8clocv2 29.91 30.04 30.66 T:aes128n12t8clocv2 31.38 31.89 32.48 T:aes128n12clocv1 32.21 32.30 32.43 T:aes128n12t8clocv3 33.16 33.27 33.36 T:aes128n8clocv1 34.22 34.28 34.42 T:aes128n12t8silcv2 34.12 34.41 34.45 T:aes128n8t8silcv2 34.46 34.52 34.89 T:aegis128 34.47 34.55 34.74 T:aes128n12t8silcv3 36.09 36.27 36.69 T:aes128n12silcv1 36.16 36.32 36.34 T:aes128n8silcv1 37.79 37.87 38.70 T:aesjambuv1 38.23 38.27 39.92 T:aes128gcmv1 38.36 38.42 39.05 T:aegis128l 39.86 39.88 41.19 T:aes128otrsv2 39.91 39.93 40.63 T:aes128otrsv1 40.00 40.01 40.66 T:aegis256 40.41 40.44 41.27 T:aes128otrpv1 40.44 40.47 40.88 T:aes128otrpv2 41.16 41.19 42.38 T:aes128otrsv3 41.70 41.74 42.20 T:aes128otrpv3 41.53 41.75 42.15 T:aes128otrcv3 43.33 44.38 44.40 T:aes256gcmv1 43.22 45.15 45.56 T:aeadaes192ocbtaglen128v1 46.93 46.96 47.15 T:ketjeminorv2 47.61 47.80 47.83 T:acorn128v2 48.00 48.01 48.27 T:acorn128v3 47.98 48.21 48.72 T:aeadaes128ocbtaglen64v1 48.27 48.58 49.15 T:aeadaes128ocbtaglen96v1 50.16? 50.58? 58.98? T:aeadaes128ocbtaglen128v1 50.87 50.88 51.05 T:aes256otrsv1 50.85 50.91 51.57 T:aes256otrsv2 51.11 51.14 51.69 T:aes256otrpv1 51.37 51.62 51.78 T:aes256otrpv2 52.29 52.34 52.81 T:aes256otrsv3 52.62 52.73 53.34 T:aes256otrpv3 52.85 52.94 53.06 T:aes256otrcv3 53.07 53.24 53.77 T:aeadaes192ocbtaglen64v1 52.81 53.27 53.57 T:aeadaes192ocbtaglen96v1 56.48 56.59 56.72 T:norx6444v3 56.67 56.78 57.48 T:norx6444v2 58.87 58.96 59.33 T:norx6444v1 59.02 59.39 60.05 T:tiaoxinv2 59.49 59.61 60.07 T:tiaoxinv1 59.81 60.02 60.59 T:aeadaes256ocbtaglen96v1 59.88 60.56 61.47 T:aeadaes256ocbtaglen64v1 60.54 60.64 60.86 T:deoxysi128v141 62.52 62.66 63.51 T:seakeyakv2 61.32? 63.88? 69.53? T:aeadaes256ocbtaglen128v1 66.39 66.69 68.34 T:colm127v1 66.88 67.01 68.87 T:colm0v1 67.16 68.43 68.66 T:ketjesrv1 74.52 74.59 74.78 T:ketjesrv2 76.02 76.05 76.21 T:deoxysii128v141 79.26 79.28 79.60 aegis128l 79.45 79.66 80.04 T:ketjemajorv2 82.23 82.25 82.77 T:deoxysi256v141 91.30 91.78 93.05 T:riverkeyakv1 94.52 95.03 95.71 T:oceankeyakv2 96.34 96.41 97.05 T:proest256otrv1 112.45 112.73 112.79 T:ketjejrv1 114.37 114.97 115.43 T:aezv4 121.63 121.71 122.53 T:aezv5 157.84 157.88 159.30 T:proest128otrv1 176.11 176.66 177.45 T:seakeyakv1 186.42 186.50 188.03 T:aezv1 192.15 193.16 194.02 T:deoxysii256v141 204.88 205.21 211.03 T:ketjejrv2 210.91 211.31 211.65 T:twine80n6clocv1 220.67 220.77 221.35 T:deoxysneq128128v1 221.06 221.17 221.41 T:deoxysneq128128v13 244.11 244.51 244.84 T:lunarkeyakv2 294.46 294.63 295.48 T:twine80n6t4clocv2 295.90 303.07 303.92 T:twine80n6t4clocv3 312.46 312.98 313.19 T:deoxysneq256128v1 312.79 313.54 314.99 T:deoxysneq256128v13 318.84 320.16 327.20 T:oceankeyakv1 322.70 323.37 325.87 T:aezv3 329.09 329.66 330.04 T:deoxyseq128128v13 354.56 354.58 354.84 T:deoxyseq128128v1 476.73 477.01 477.80 T:deoxyseq256128v13 497.91 498.27 498.31 T:deoxyseq256128v1 2799.09 2801.83 2803.03 T:acorn128 6028.63 6029.23 6035.80 T:present80n6silcv1 6033.93 6034.13 6037.68 T:present80n6t4silcv3 6030.23 6035.12 6040.35 T:present80n6t4silcv2 7124.79 7140.31 7155.25 T:led80n6silcv1 7134.30 7147.69 7160.42 T:led80n6t4silcv3 7140.90 7149.26 7161.52 T:led80n6t4silcv2 19157.26 19158.27 19160.23 aes256gcmv1

Cycles/byte for 64+64 forgery 25% 50% 75% aead 7.50 7.52 7.65 T:morus640128v1 7.88 7.88 7.89 T:morus640128v2 10.38 10.41 10.48 T:morus1280128v1 10.44 10.50 10.52 T:morus1280256v1 10.80 10.88 10.93 T:morus1280128v2 11.29 11.39 11.52 T:morus1280256v2 14.58 14.59 14.61 ascon128av12 15.37 15.38 16.02 T:ascon128av11 15.40 15.41 15.98 T:ascon96v1 17.50 17.50 17.50 T:norx6441v1 18.27 18.27 18.27 T:norx6441v3 18.27 18.27 18.27 T:norx6441v2 18.35 18.36 18.38 T:norx3241v1 18.32 18.47 18.59 T:lakekeyakv1 18.68 18.73 18.82 ascon128v12 18.84 18.85 18.88 T:norx3241v2 18.93 18.95 18.97 T:norx3241v3 20.25 20.25 20.64 T:ascon128v11 20.25 20.25 20.66 T:ascon128v1 24.62 25.20 25.21 T:lakekeyakv2 25.69 25.69 25.76 T:norx6461v1 26.38 26.48 26.48 T:norx6461v2 26.44 26.53 26.55 T:norx6461v3 26.36 26.79 26.79 T:riverkeyakv2 27.80 27.81 27.81 T:norx3261v1 27.90 27.90 27.95 T:norx3261v3 27.98 27.99 28.18 T:norx3261v2 29.59 29.81 30.09 T:aes128n8t8clocv2 29.76 29.90 30.25 T:aes128n12t8clocv2 30.94 31.29 32.41 T:aes128n12clocv1 31.90 31.96 32.01 T:aes128n12t8clocv3 32.77 32.82 32.96 T:aes128n8clocv1 33.93 33.93 34.12 T:aes128n8t8silcv2 33.95 34.06 34.12 T:aes128n12t8silcv2 34.25 34.38 34.43 T:aes128n12t8silcv3 34.36 34.38 34.49 T:aegis128 35.84 36.11 36.63 T:aes128n12silcv1 35.97 36.11 36.31 T:aes128n8silcv1 37.76 37.80 37.80 T:aesjambuv1 38.24 38.46 39.23 T:aes128gcmv1 38.50 38.64 39.47 T:aegis128l 40.02 40.05 40.09 T:aes128otrsv2 40.08 40.12 40.98 T:aegis256 40.06 40.21 40.23 T:aes128otrsv1 40.46 40.54 40.71 T:aes128otrpv1 40.48 40.59 40.60 T:aes128otrpv2 41.41 41.55 41.58 T:aes128otrsv3 41.52 41.55 42.14 T:aes128otrcv3 41.85 41.92 41.98 T:aes128otrpv3 43.34 43.89 44.55 T:aes256gcmv1 44.75 45.18 48.66 T:aeadaes192ocbtaglen128v1 47.03 47.05 47.25 T:ketjeminorv2 47.48 47.80 47.83 T:acorn128v2 48.00 48.01 48.02 T:acorn128v3 47.98 48.21 49.17 T:aeadaes128ocbtaglen96v1 48.09 48.21 48.21 T:aeadaes128ocbtaglen64v1 49.63? 50.88? 60.62? T:aeadaes128ocbtaglen128v1 51.05 51.09 51.15 T:aes256otrsv2 51.15 51.20 51.20 T:aes256otrsv1 51.28 51.32 51.73 T:aes256otrpv1 51.60 51.70 52.07 T:aes256otrpv2 52.48 52.50 52.57 T:aes256otrsv3 52.76 52.85 52.91 T:aes256otrpv3 52.88 52.98 53.16 T:aeadaes192ocbtaglen96v1 52.84 53.02 53.12 T:aes256otrcv3 53.07 53.26 53.38 T:aeadaes192ocbtaglen64v1 56.60 56.70 56.77 T:norx6444v3 56.91 57.12 57.71 T:norx6444v2 58.42 58.53 58.70 T:tiaoxinv2 58.60 58.84 58.85 T:tiaoxinv1 58.99 59.03 59.26 T:norx6444v1 59.68 59.95 61.38 T:aeadaes256ocbtaglen64v1 59.82 59.95 60.05 T:aeadaes256ocbtaglen96v1 60.65 60.67 60.77 T:deoxysi128v141 61.32? 61.88? 70.26? T:aeadaes256ocbtaglen128v1 62.77 63.31 63.45 T:seakeyakv2 66.12 66.56 66.83 T:colm127v1 66.46 66.61 66.71 T:colm0v1 67.38 68.62 68.71 T:ketjesrv1 74.61 74.63 74.92 T:ketjesrv2 76.23 76.27 76.31 T:deoxysii128v141 79.41 79.46 79.94 aegis128l 79.66 79.70 80.30 T:ketjemajorv2 82.23 82.35 82.62 T:deoxysi256v141 90.98 91.51 93.23 T:riverkeyakv1 92.45 92.59 92.64 T:proest256otrv1 94.87 95.05 95.16 T:oceankeyakv2 112.55 112.73 113.02 T:ketjejrv1 114.38 114.45 115.02 T:aezv4 121.26 121.40 121.50 T:aezv5 157.90 157.94 158.00 T:proest128otrv1 176.10 176.41 177.59 T:seakeyakv1 186.07 186.25 186.42 T:aezv1 191.78 193.12 193.90 T:deoxysii256v141 204.98 205.25 211.14 T:ketjejrv2 210.85 211.19 213.16 T:twine80n6clocv1 220.66 221.03 221.44 T:deoxysneq128128v1 221.12 221.16 221.54 T:deoxysneq128128v13 243.83 244.27 244.44 T:lunarkeyakv2 294.38 294.60 295.32 T:twine80n6t4clocv2 295.42 303.09 303.83 T:twine80n6t4clocv3 312.53 312.74 313.16 T:deoxysneq256128v1 312.80 313.41 315.05 T:deoxysneq256128v13 316.59 320.26 327.02 T:oceankeyakv1 321.99 323.29 325.87 T:aezv3 329.29 329.50 330.37 T:deoxyseq128128v13 354.45 354.52 354.70 T:deoxyseq128128v1 476.44 476.77 477.80 T:deoxyseq256128v13 497.77 498.24 498.29 T:deoxyseq256128v1 2799.09 2801.66 2803.05 T:acorn128 6028.67 6029.02 6034.36 T:present80n6silcv1 6033.68 6033.95 6036.68 T:present80n6t4silcv3 6030.10 6034.35 6040.15 T:present80n6t4silcv2 6853.90 6854.10 6858.74 aes256gcmv1 7155.22 7175.70 7269.41 T:led80n6t4silcv2 7127.23 7176.33 7263.24 T:led80n6silcv1 7141.58 7189.04 7253.55 T:led80n6t4silcv3
